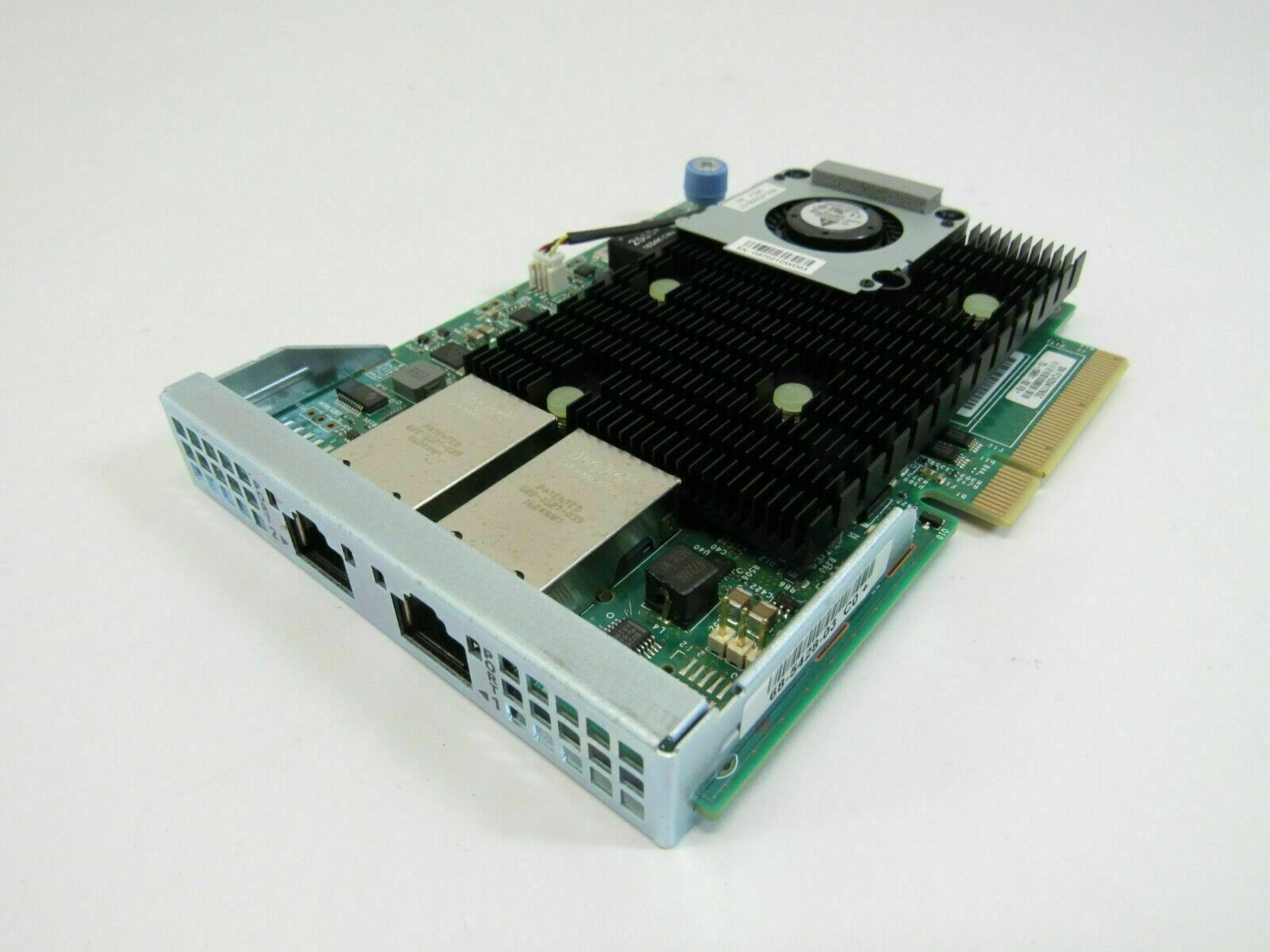

Cisco UCSC-MLOM-C10T-02 UCS VIC Virtual Interface Card 1227T Network Adapter
In Full Working OrderTested2 Year WarrantyIncludes:

• 1 x Cisco UCSC-MLOM-C10T-02 UCS VIC Virtual Interface Card 1227T Network Adapter

OverviewThe Cisco UCS Virtual Interface Card (VIC) 1227T enables a policy-based, stateless, agile server infrastructure for your data center. It supports 10-Gbps Ethernet and Fibre Channel over Ethernet (FCoE). The card is a dual-port 10GBASE-T (RJ-45) PCI Express (PCIe) modular LAN-on-motherboard (mLOM) adapter designed exclusively for Cisco UCS C-Series Rack Servers. New to Cisco rack servers, the mLOM slot can be used to install a Cisco VIC without consuming a PCIe slot, which provides greater I/O expandability. The card incorporates next-generation converged network adapter (CNA) technology from Cisco. The adapter provides Fibre Channel connectivity over low-cost twisted pair cabling with a bit error rate (BER) of 10 to 15 up to 30 meters and investment protection for future feature releases. The mLOM card can present up to 256 PCIe standards-compliant interfaces to the host, and these can be dynamically configured as either network interface cards (NICs) or host bus adapters (HBAs). In addition, the VIC supports Cisco Data Center Virtual Machine Fabric Extender (VM-FEX) technology. This technology extends the Cisco UCS Fabric Interconnect ports to virtual machines, simplifying server virtualization Gigabit Ethernet

IEEE 802.3an

IEEE 802.3x

IEEE 802.1q VLAN

IEEE 802.1p

IEEE 802.1Qaz

IEEE 802.1Qbb

IEEE 802.1BR

Jumbo frames up to 9 KB

Fibre Channel Protocol (FCP)

SCSI-FCP

T11 FCoE

Components: Cisco UCS custom application-specific integrated circuit (ASIC)

Ports:

• 2 x 10-Gbps FCoE 10GBASE-T ports
• Port speed 1/10/100/1000/10-Gbps PCIe 2.0 x8 mLOM form factor
• Supported cabling:
• Ethernet to 100m:
• Category 6 shielded twisted pair (STP) up to 10 Gbps
• Category 6A unshielded twisted pair (UTP) or STP up to 10 Gbps
• Category 7 STP up to 10 Gbps
• FCoE to 30m:
• Category 6A UTP or STP up to 10 Gbps
• Category 7 STP up to 10 Gbps
• Performance: 10-Gbps line rate per port
• Management: Cisco UCS Manager Release 2.2.4 and later
• Number of interfaces: 256 virtual interfaces (approximately 8 are reserved for internal use; other factors, such as the OS and
• hypervisor, may limit this number further)
• Physical dimensions
• Length = 4.5 in (11.43 cm)
• Width = 3.625 in. (9.2075 cm)
• Typical power: 16 watts (W)
