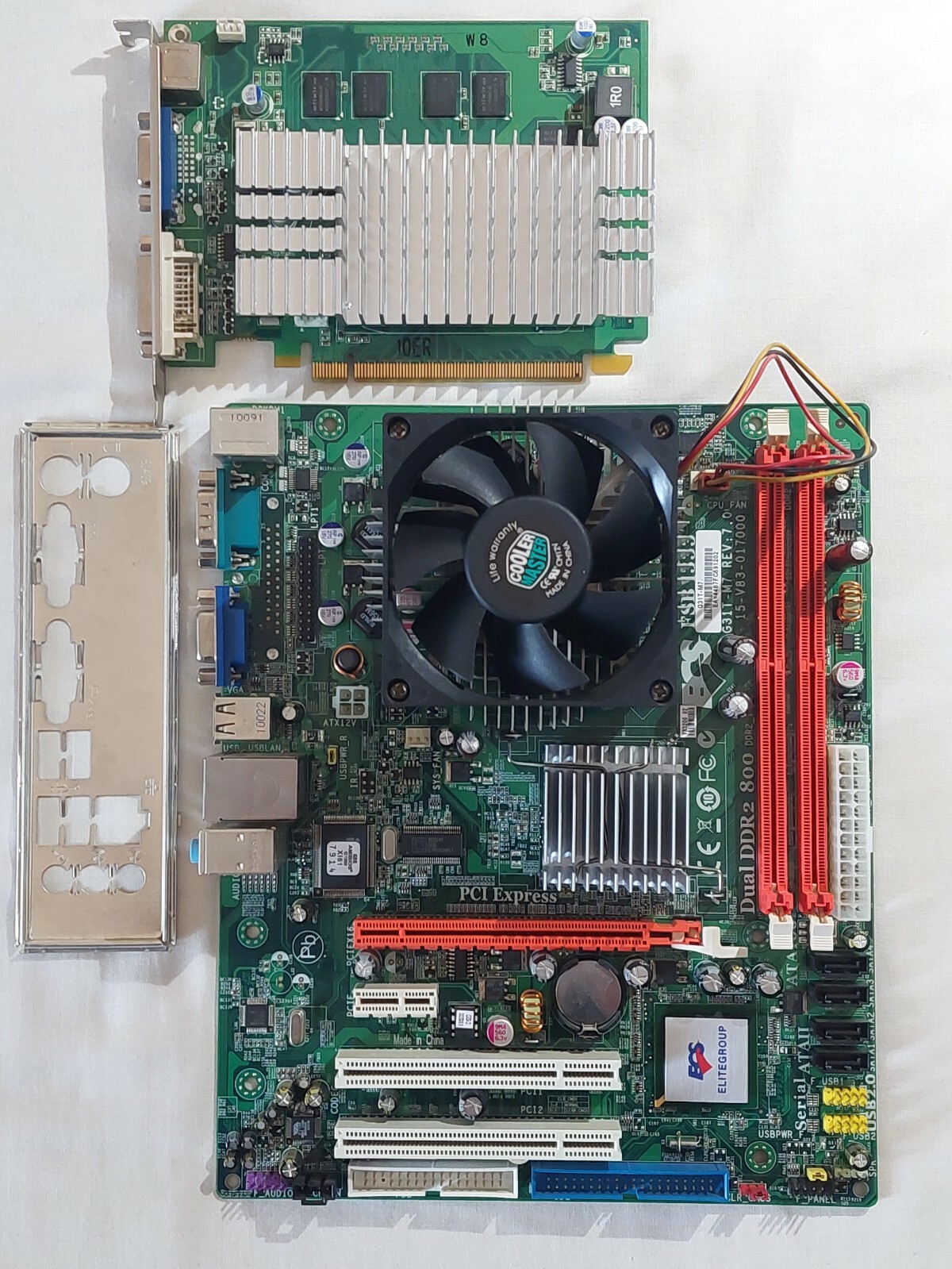

The Motherboard ECS G31T-M7 REV:7.0 /15-V83-017000/Socket LGA775 with Chipset Intel (G31 & ICH7) +CPU Intel Pentium E5200 2,50GHz/2M/800/06 Dual-Core SLAY7 (With fan andheatsink) +GPU Graphics Card NVIDIA GeForce9400GT 1GB.DDR2 /(With heatsink) + Back panel is in perfectcondition! Ready configuration.

It has been tested and workswithout notice!

Photos are of the actualitems you will receive!

Please read the descriptioncarefully!

It has been tested and works without notice!Please read thedescription carefully.NO Books/paperwork,drivers, software,/ or support included(sorry).Photos are of the actual items you will receive.

º FSB 1333/1066 MHz

º North Bridge: Intel®G31
º South Bridge: Intel®ICH7

º 2 x 240-pin DDR2 DIMM socket support up to 4 GB
º Support DDR2 667/800 MHz Memory
Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows®32-bit OS.
For Windows®64-bit OS with 64-bit CPU, there is no such limitation

º 1 x PCI Express x1 slot
º 2 x PCI slots

• 2 x Ultra DMA 100/66/33 devices
• 4 x Serial ATAII devices

º 4 x USB ports
º 1 x VGA port
º 1 x COM Port
º 1 x RJ45 LAN connector
º 1 x Audio port

º 1 x FDD connector supports one 360K~2.88MB FDD
º 4 x Serial ATA connectors
º 2 x USB 2.0 headers support additional 4 USB 2.0 Ports
º 1 x Clear CMOS header
º 1 x Front panel header
º 1 x Front panel audio header
º 1 x SPDIF out header
º 1 x CD in header
º 1 x Speaker header
º 1 x LPT header
º CPUFAN/SYSFAN connectors

º Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
º Supports ACPI revision 1.0 specification

General information

Type

CPU / Microprocessor

Market segment

Desktop

Family

Intel Pentium Dual-Core

Model number

E5200

CPU part numbers

§ EU80571PG0602Mis an OEM/tray microprocessor

§ AT80571PG0602Mis an OEM/tray microprocessor in Halide free package

§ BX80571E5200is a boxed processor with fan and heatsink (English version)

§ BXC80571E5200is a boxed processor with fan and heatsink (Chinese version)

Frequency

2500 MHz

Bus speed

800 MHz

Clock multiplier

12.5

Package

775-land Flip Chip Land Grid Array (FC-LGA8)

Socket

Socket 775

Size

1.48\" x 1.48\" / 3.75cm x 3.75cm

Introduction date

Aug 31, 2008

S-spec numbers

Part number

AT80571PG0602M

BX80571E5200

BXC80571E5200

EU80571PG0602M

Architecture / Microarchitecture

Core

Processor core

Wolfdale-3M

Core steppings

M0 (QFHQ, SLAY7)
R0 (SLB9T)

CPUIDs

10676 (QFHQ, SLAY7)
1067A (SLB9T)

Manufacturing process

0.045 micron

Data width

64 bit

The number of CPU cores

2

The number of threads

2

Floating Point Unit

Integrated

Level 1 cache size

2 x 32 KB 8-way set associative instruction caches
2 x 32 KB 8-way set associative data caches

Level 2 cache size

shared 2 MB 8-way set associative cache

Not supported

Extensions and Technologies

§ MMX instructions

§ SSE / Streaming SIMD Extensions

§ SSE2 / Streaming SIMD Extensions 2

§ SSE3 / Streaming SIMD Extensions 3

§ SSSE3 / Supplemental Streaming SIMD Extensions 3

§ EM64T / Extended Memory 64 technology / Intel 64

Security Features

§ NX / XD / Execute disable bit

Low power features

§ Halt mode

§ Extended Halt mode

§ Stop Grant mode

§ Extended Stop Grant mode

§ Sleep mode

§ Deep Sleep mode

§ Deeper Sleep mode

§ Enhanced SpeedStep technology

Integrated peripherals / components

Integrated graphics

None

Electrical / Thermal parameters

V core

0.85V - 1.3625V

Minimum/Maximum operating temperature

5°C - 74.1°C

Minimum/Maximum power dissipation

8 Watt (TDP for Enhanced HALT mode) / 98.89 Watt

Thermal Design Power

65 Watt

Notes on Intel Pentium E5200

§ Actual bus frequency is 200 MHz. Because the processor uses Quad Data Rate bus the effective bus speed is 800 MHz

§ BXC80571E5200 is a Chinese version

Pentium E5200 Overclocking

Sorry, we do not have overclocking data for thisIntel Pentium Dual-Coremicroprocessor at this time.

Начало на формуляра

Край на формуляра

Name / Brand / Architecture

Manufacturer:

Nvidia

Model:

GeForce 9400 GT 1GB

Part number:

R-VGA150915

Based on:

NVIDIA GeForce 9400 GT DDR2

Target market segment:

Desktop

Graphics Processor:

G96

Architecture:

Unified Shader Architecture

Fabrication process:

65 nm

Transistors:

314 million

Bus interface:

PCI-E 2.0 x 16

Frequency

Graphics clock:

550 MHz

Processor clock:

1375 MHz

Memory specifications

Memory size:

1024 MB

Memory type:

DDR2

Memory clock:

333 MHz

Memory clock (effective):

666 MHz

Memory interface width:

128-bit

Memory bandwidth:

10.67 GB/s

Cores / Texture

CUDA:

1.0

CUDA cores:

16

ROPs:

4

Texture units:

8

RAMDACs:

400 MHz

Electric characteristics

Maximum GPU temp:

105°C

Maximum power draw:

50 W

Video features

Multi-monitor:

Up to 2 displays

Maximum digital resolution:

2560 x 1600

Maximum VGA resolution:

2048 x 1536

Anti-Aliasing technologies:

16 x CSAA
16 x FSAA

HDMI:

Via Adapter

HDMI version:

1.3a

Performance

Pixel fill rate:

2.2 Gigapixels/s

Texture fill rate:

4.4 Gigatexels/s

Single presision compute power:

44 GFLOPS

External connectors

Standard display connectors:

Dual-Link DVI-I
S-Video
VGA

Dimensions

Width:

Single Slot

Other features / Support

Other features:

HDCP
PhysX
PureVideo HD

OpenGL support:

2.1

DirectX support:

10.0

Shader model:

4.0

The Motherboard ECS G31T-M7 REV:7.0/15-V83-017000/ Socket LGA775 with Chipset Intel (G31 & ICH7) + CPU Intel PentiumE5200 2,50GHz/2M/800/06 Dual-Core SLAY7 (With fan and heatsink) +GPU Graphics CardNVIDIA GeForce 9400GT 1GB.DDR2 /(With heatsink) + Back panel Край на формуляра
