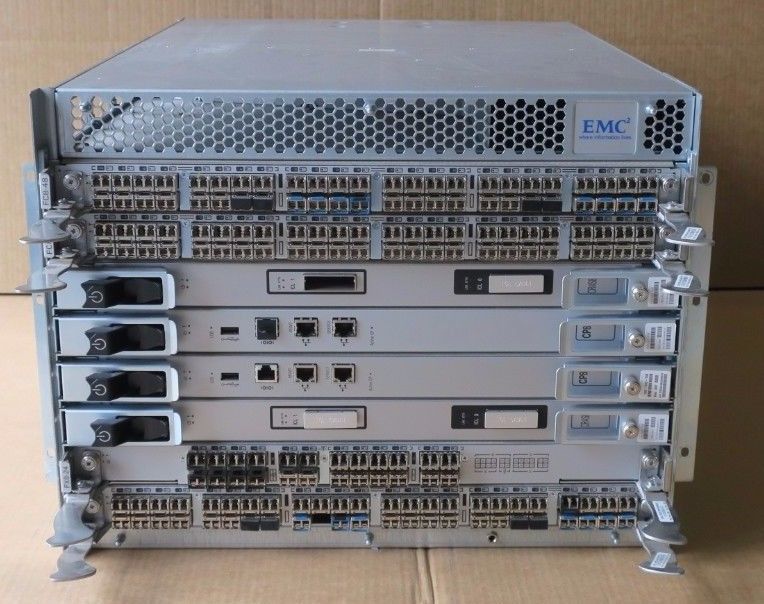

EMC ED-DCX-4S Backbone SAN Switch 100-652-565 3x FC8-48 FX8-24 2x CP8 2x CR4S8
Part Number:100-652-565
Model: EM-DCX-4S
In Good Condition, Full Working Order
Integrated Routing license,Enhanced Group Management,Extended Fabric,Fabric Watch,Performance Monitor,Trunking,Enhanced Group Management, 10 Gigabit FCIP/Fibre Channel (FTR_10G)andAdvanced Extension (FTR_AE) License
Included
- 1 xEMC Brocade ED-DCX-4S-B Backbone SAN Switch 100-652-565
- 2 x 60-1000375-13FC8-48 48 Port Port 8Gbps Blade
- 1 x 60-1000375-14 FC8-48 48 Port Port 8Gbps Blade
- 1 x60-1001157-24FX8-24 24 Port Extension Blade
- 2 x 60-1000818-08CR4S8 Director Processor Blade
- 1 x 60-1000376-08CP8 Control Processor Blade
- 1 x 60-1000376-10 CP8 Control Processor Blade
- 2 x 23-0000067-012000W Power Supply
Description
The award-winning Brocade DCX 4S provides enterprise data centers with a robust storage network switching platform that allows for scalability, energy efficiency, and long-term reliable performance. The DCX-4S offers 8Gbp/s network switching platforms for complete backbone-class capabilities. This backbone supports Windows and all other major server or storage operating systems, offering nonstop networking capabilities and the ability to successfully manage a wide range of applications. For servers experiencing increased traffic, data growth, and heightening demands on virtual environments, the Brocade DCX-4S is an excellent choice to help simplify site management and reduce network complexity. The Brocade DCX-4S will help to reduce the infrastructure necessary to support your system, thus reducing overall administrative and repair costs.
Specifications
- Single chassis: Up to 256 Gbps universal (E, F, FL, M, EX) Fibre Channel ports using up to eight 16-, 32-, 48-, or 64-port Fibre Channel blades
- Chassis bandwidth: 2.3 Tbps per chassis
- ISL bandwidth: 256 Gbps; four ICLs provide the equivalent of 32 8 Gbps ports
- Control Processor: Redundant (active,standby) control processor modules
- Scalability: Full fabric architecture of 239 switches
Boot Log:
Kernel: 2.6.14.2
Fabric OS: v7.2.1d
Made on: Tue Nov 18 11:15:49 2014
Flash: Wed Oct 14 22:16:49 2015
BootProm: 1.0.16
switchName: DCX4S
switchType: 77.3
switchState: Online
switchMode: Native
switchRole: Principal
switchDomain: 1
switchId: fffc01
switchWwn: 10:00:00:05:33:22:d4:00
zoning: OFF
switchBeacon: OFF
FC Router: OFF
Allow XISL Use: OFF
LS Attributes: [FID: 128, Base Switch: No, Default Switch: Yes, Address Mode 0]
Index Slot Port Address Media Speed State Proto
2 ge0 id 1G No_Light FCIP Disabled (10G Mode)
2 ge1 id 1G No_Light FCIP Disabled (10G Mode)
2 ge2 id 1G No_Light FCIP Disabled (10G Mode)
2 ge3 id 1G No_Light FCIP Disabled (10G Mode)
2 ge4 id 1G No_Light FCIP Disabled (10G Mode)
2 ge5 id 1G No_Light FCIP Disabled (10G Mode)
2 ge6 id 1G No_Light FCIP Disabled (10G Mode)
2 ge7 id 1G No_Light FCIP Disabled (10G Mode)
2 ge8 id 1G No_Light FCIP Disabled (10G Mode)
2 ge9 id 1G No_Light FCIP Disabled (10G Mode)
256 3 0 ------ cu 8G No_Sync FC
257 3 1 ------ cu 8G No_Sync FC
258 3 2 ------ cu 8G No_Sync FC
259 3 3 ------ cu 8G No_Sync FC
260 3 4 ------ cu 8G No_Sync FC
261 3 5 ------ cu 8G No_Sync FC
262 3 6 ------ cu 8G No_Sync FC
263 3 7 ------ cu 8G No_Sync FC
264 3 8 ------ cu 8G No_Sync FC
265 3 9 ------ cu 8G No_Sync FC
266 3 10 ------ cu 8G No_Sync FC
267 3 11 ------ cu 8G No_Sync FC
268 3 12 ------ cu 8G No_Sync FC
269 3 13 ------ cu 8G No_Sync FC
270 3 14 ------ cu 8G No_Sync FC
271 3 15 ------ cu 8G No_Sync FC
272 6 0 ------ cu 8G No_Sync FC
273 6 1 ------ cu 8G No_Sync FC
274 6 2 ------ cu 8G No_Sync FC
275 6 3 ------ cu 8G No_Sync FC
276 6 4 ------ cu 8G No_Sync FC
277 6 5 ------ cu 8G No_Sync FC
278 6 6 ------ cu 8G No_Sync FC
279 6 7 ------ cu 8G No_Sync FC
280 6 8 ------ cu 8G No_Sync FC
281 6 9 ------ cu 8G No_Sync FC
282 6 10 ------ cu 8G No_Sync FC
283 6 11 ------ cu 8G No_Sync FC
284 6 12 ------ cu 8G No_Sync FC
285 6 13 ------ cu 8G No_Sync FC
286 6 14 ------ cu 8G No_Sync FC
287 6 15 ------ cu 8G No_Sync FC
156 7 28 019c00 id N8 No_Light FC
157 7 29 019d00 id N8 No_Light FC
158 7 30 019e00 id N8 No_Light FC
159 7 31 019f00 id N8 No_Light FC
Integrated Routing license
Enhanced Group Management license
Extended Fabric license
Fabric Watch (Fabric Vision capable) license
Performance Monitor (Fabric Vision capable) license
Trunking license
Adaptive Networking - obsolete license
Server Application Optimization - obsolete license
Advanced Extension (FTR_AE) license
Capacity 1
Consumed 0
10 Gigabit FCIP/Fibre Channel (FTR_10G) license
Capacity 5
Consumed 0
Slot Blade Type ID Status
1 SW BLADE 51 ENABLED
2 AP BLADE 75 ENABLED
3 CORE BLADE 46 ENABLED
4 CP BLADE 50 ENABLED
5 CP BLADE 50 ENABLED
6 CORE BLADE 46 ENABLED
7 SW BLADE 51 ENABLED
8 SW BLADE 51 ENABLED
DCX4S:FID128:admin>
