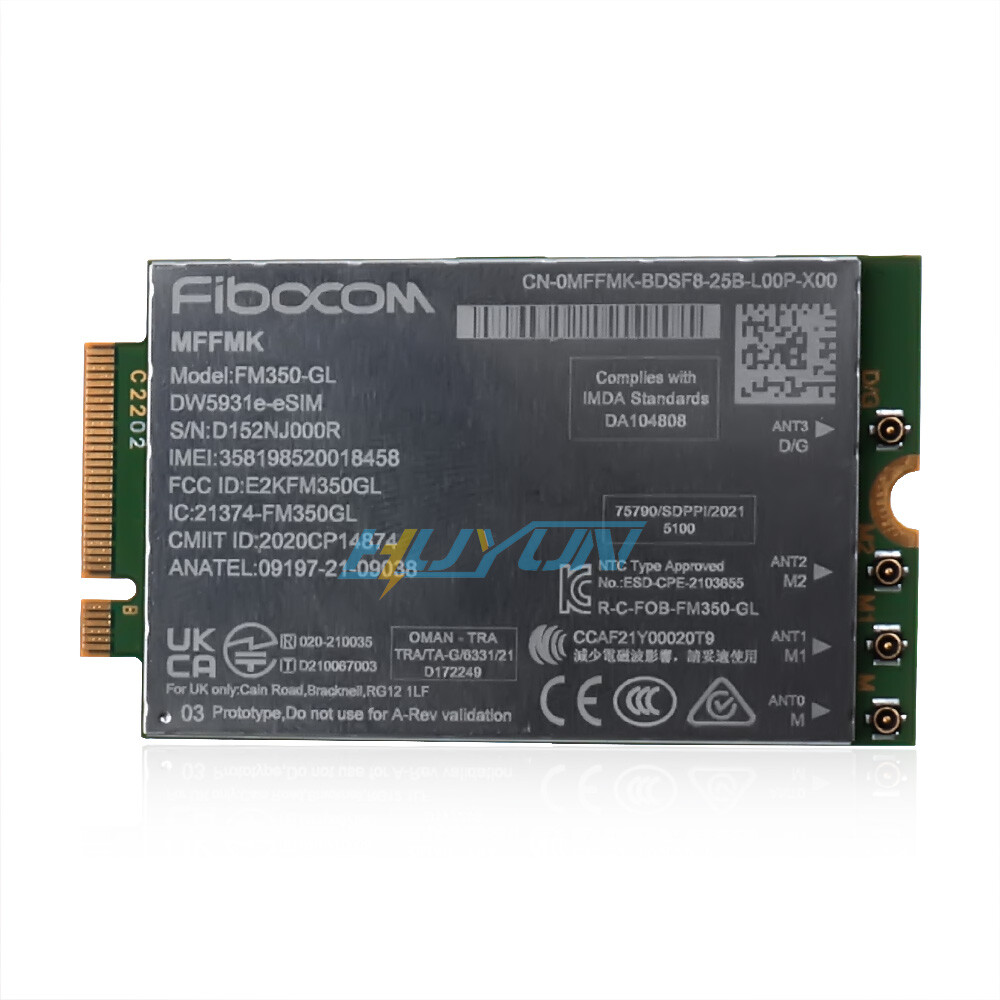

Fibocom FM350-GL DW5931e 5G M.2 Module for Latitude 5531 9330 3571 Laptop Intel
The Fibocom\'s FM350-GL is a multimode 5G, LTE, and WCDMA module that provides Gigabit speed, unleashing the potential of cellular technology to meet high speed bandwidth application demand.With a rich selection of the frequency bands, FM350-GL provides global mobile network coverage to facilitate product with one SKU, reduces complexity in end product configuration.The FM350-GL supports 5G NR Sub6 network with up to 4.67Gbps on the downlink and 1.25Gbps on the uplink. It also provides fallback to LTE & WCDMA network.The FM350-GL is designed with the M.2 30*52 form factor which is ideally suited for integration with Personal Computer (Laptop, Desktop, Tablet, etc.), IoT Gateway and Routers that run Windows, and Linux OS.
Product Features
NR FR1 (Sub6):
n1, n2, n3, n5, n7, n8, n20, n25, n28a, n28b, n30, n38, n40, n41, n48, n66, n71, n77, n78, n79
LTE：
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28(a&b), B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
LAA：Band 46
WCDMA：Band 1, 2, 4, 5, 8
NR CA: DL 2CC/ UL 2CC
LTE CA: DL 5CC/ UL 2CC
NR DL 4x4 MIMO:
n1, n2, n3, n7, n25, n30, n38, n40, n41(full), n48, n66, n77, n78, n79
LTE DL 4x4 MIMO:
B1, B2, B3, B4, B7, B25, B30, B34, B38, B39, B40, B41(full), B42, B43, B48, B66UL 2x2 MIMO: n41, n77, n78, n79
SRS :n41, n77, n78, n79, Support: 1T2R, 1T4R, 2T4RCBRS: B48
HPUE: B41, n41, n77, n78, n79Basic Parameters
GNSS:GPS, GLONASS, BeiDou, Galileo, QZSS
Assisted GNSS (A-GNSS)
Built-in eSIM
Body SAR
Antenna Tunner
Operating Voltage: 3.315V ~ 4.4V, Typical 3.3V
Operation Temperatur: -10 ~ 55 ℃
Storage Temperature: -40 ~ +85℃
Form Factor: M.2 S3 Key-B
Size :30*52*2.3mm
TX Power:
NR & LTE: 23dBm
WCDMA: 23.5 dBm
RX Sensitivity: NR & LTE: -98dBm ~ 102dBmData
Downlink
NR FR1 (Sub6) Peak: 4.67Gbps MIMO 4x4, 256QAMLTE: 1.6Gbps MIMO 4x4, 256QAMENDC Peak: 3.74Gbps MIMO 4x4, 256QAMUplink
NR FR1 (Sub6) Peak: 1.25Gbps MIMO: 2x2, 256QAMLTE: 211Mbps MIMO 1x1, UL 256QAMENDC Peak: 835Mbps MIMO 1x1, NR: 256QAM; LTE: 256QAMInterfaces
USIM 1.8V, 3V
PCIe Gen 3.0
I2C
Body SAR
MIPI Tuner
Tunable AntennaOS DriversOperating System Windons 10, Verizon, T-Mobile, Vodafone, Telefonica, Swisscom, DTAG, CMCC, CUCC, CTCC, Telstra, Optus, Docomo, KDDI, SoftbankRegulatory/ Industry
GCF, PTCRB, CCC, CTA, SRRC, CE, IC, FCC, CBRS, JATE, TELEC, RCMOthers RoHS, Reach, HF, CB, UL
