Key Features
1. Dual socket R (LGA 2011) supports
Intel® Xeon® processor E5-2600
andE5-2600 v2family†2. Up to 1.5TB ECC DDR3, up to
1866MHz; 24x DIMM slots3. 2 PCI-E 3.0 (x8) Low-profile,
2 PCI-E 3.0 (x16) & 2 PCI-E 3.0 (x8)
Full-height slots (see below for details)4. Intel® i350 GbE Controller; 4x ports5. 16x Hot-swap 2.5\" SAS/SATA HDD
Bays*6. 920W Redundant Power Supplies
Platinum Level (94%)Product SKUsSYS-2027R-N3RF4+

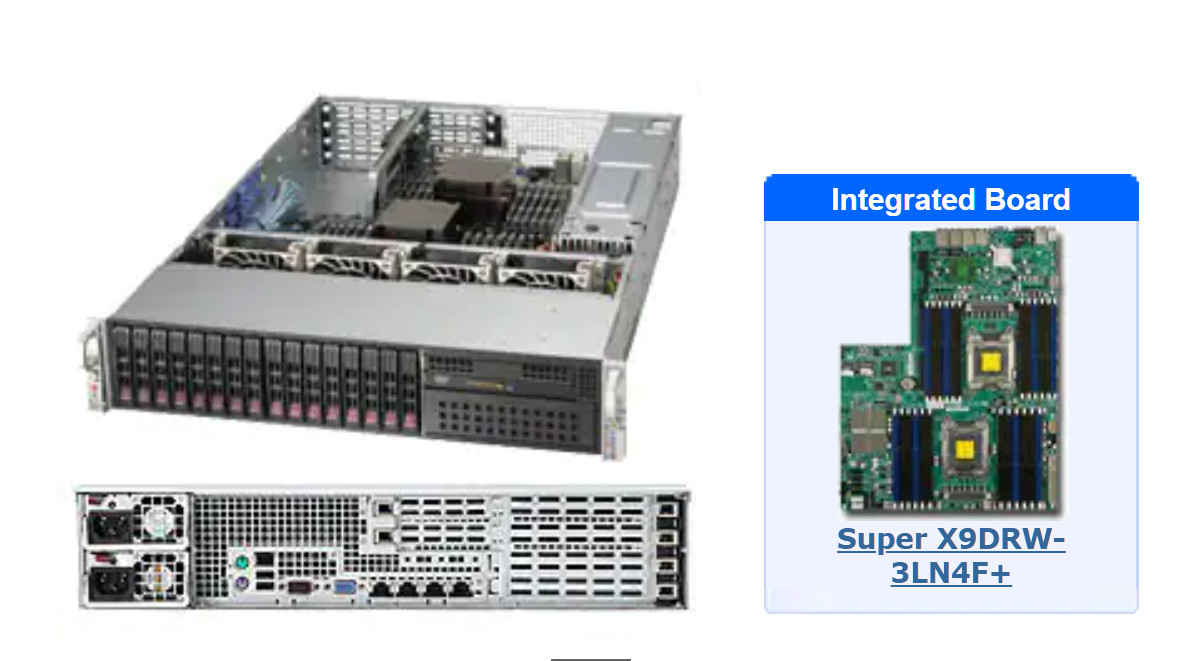

- SuperServer 2027R-N3RF4+ (Black)
Motherboard
Super X9DRW-3LN4F+Processor/CacheCPU
- Dual Socket R (LGA 2011)
- Intel® Xeon® processor E5-2600
andE5-2600 v2family†
(up to 130W TDP)
Note† BIOS version 3.0 or above is requiredCache
System Bus
System MemoryMemory Capacity
- 24x 240-pin DDR3 DIMM slots
- Up to 1.5TB DDR3 ECC LRDIMM
- Up to 768GB DDR3 ECC Registered memory (RDIMM)
- Up to 128GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type
DIMM Sizes
- 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage
Error Detection
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
On-Board DevicesChipset
SAS
- SAS from C606
- RAID 0, 1, 10 support
SATA
- Via Cable for SATA controller
- SATA 2.0 3Gbps with RAID 0, 1, 5, 10
- SATA 3.0 6Gbps with RAID 0, 1
IPMI
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- Nuvoton WPCM450 BMC
Network Controllers
- Intel® i350 Gigabit Ethernet Controller
- Virtual Machine Device Queues reduce I/O overhead
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
- 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics
Input / OutputSAS
LAN
- 4x RJ45 Gigabit Ethernet LAN ports
- 1x RJ45 Dedicated IPMI LAN port
USB
- 7x USB 2.0 ports total
(2 rear + 4 via header + 1 Type A)
VGA
Serial Port / Header
- 1x Fast UART 16550 port / 1 Header
ChassisForm Factor
Model
Height
Depth
Gross Weight
Available Colors
Front PanelButtons
- Power On/Off button
- System Reset button
LEDs
- Power status LED
- Hard drive activity LED
- 2x Network activity LEDs
- System Overheat LED
- Power fail LED
Expansion SlotsPCI-Express
- 1 PCI-E 3.0 (x16) Full-height (16.5\" length)
- 1 PCI-E 3.0 (x16) Full-height (10\" length)
- 1 PCI-E 3.0 (x8) Full-height (16.5\" length)
- 1 PCI-E 3.0 (x8) Full-height (6.6\" length)
- 2 PCI-E 3.0 (x8) Low-profile (6.6\" length)
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and
Drive BaysHot-swap
- 16x Hot-swap 2.5\" SAS / SATA HDD trays (optional Storage controller card)
Peripheral DrivesDVD-ROM
- Slim DVD-ROM drive (optional)
Backplane1x SAS2 / SATA backplaneSystem CoolingFans
- 4x 8cm heavy duty PWM fans
Power Supply with Power Distributor920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2CAC Input
- 100-240 V, 50-60 Hz, 11-4.5 Amp
DC Output
- 4 Amp @ +5V standby
- 75 Amp @ +12V
Certification Platinum Certified
System BIOSBIOS Type
- 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
- Plug and Play (PnP)
- APM 1.2
- PCI 2.2
- ACPI 1.0 / 2.0
- USB Keyboard support
- SMBIOS 2.3
- UEFI
Operating Environment / ComplianceRoHS
Environmental Spec.
- Operating Temperature:
5°C to 35°C (41°F to 95°F) - Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F) - Operating Relative Humidity:
8% to 90% (non-condensing) - Non-operating Relative Humidity:
5% to 95% (non-condensing)
