CAT 8.1 S-FTP patch cord, Cu, CMR Riser AWG 24/7, length 3ft, 7ft,15ft, 33ft, 66ft,100 ft, color grey white

The high-end network solution according to the CAT 8.1 standard

• Reach a bandwidth of up to 2000 MHz
• With Fire ratedCMR cable jacket, often called “riser-rated cable,” is constructed to prevent fires from spreading floor to floor in vertical installations. It can be used whencablesneed to be run between floors through risers or vertical shafts.
• AWG24 cu cord is thicker than AWG26,AWG28, which means durable and longer life
• Transparent yellow coloured metal shielded connector for easy identification of Category 8.1 (2,000 MHz)
• Inner conductors: Copper (Cu)
• PoE++ compatible

The Sunnytech® Category 8.1 Class I patch cables are manufactured and tested according to the ISO/IEC 11801 and DIN EN 50173 CAT 8.1 standards. They guarantee that the cable installation complies with the ISO & EN channel specification and provide excellent performance in the Sunnytech® CAT 8.1 cabling. The performance was tested up to 2000 MHz, including performance characteristics such as near-end crosstalk (“NEXT”). The Sunnytech® patch cables were specifically designed to fully meet all requirements in various application areas. Each cable is equipped with a molded anti-kink sleeve with strain relief. In addition, the sleeve has a locking lever protection, which prevents kinking of the cables and breaking-off of the locking lever from the connector. Category 8.1 is simply identified by the green colored connectors.

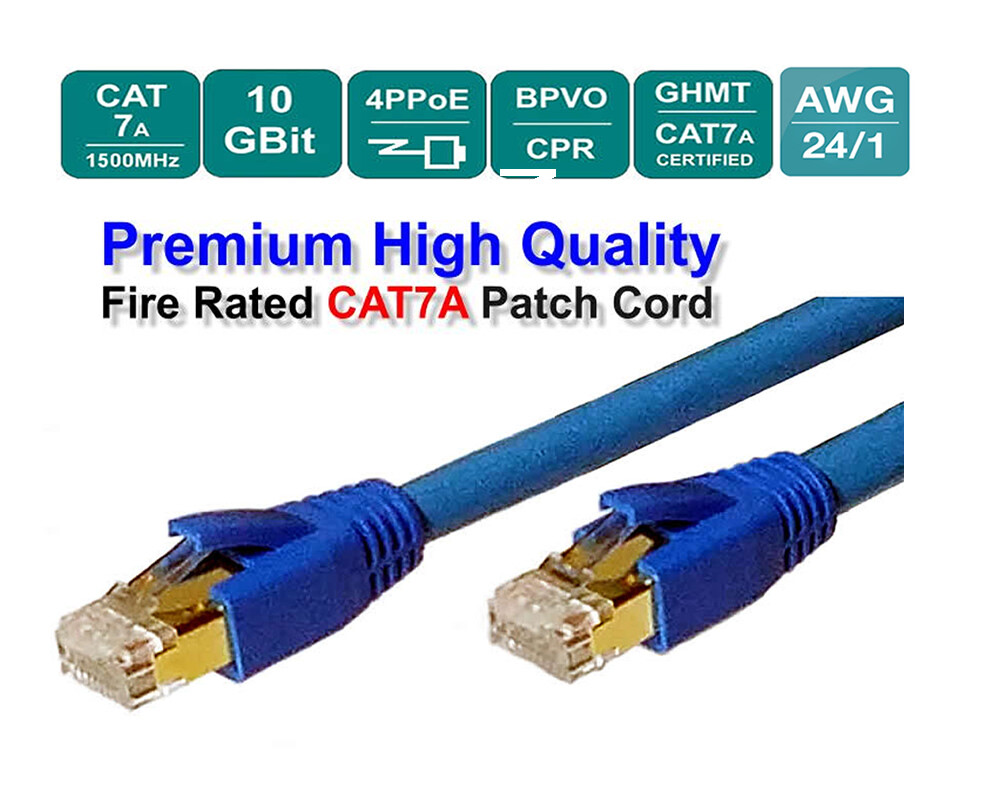

CAT 7A S-FTP patch cord, Cu, CMR Riser AWG 24/7, length 10ft, 25ft, 50ft,100 ft, color blue

The high-end network solution according to the CAT 7A standard

• Reach a bandwidth of up to 1500 MHz
• With Fire ratedCMR cable jacket, often called “riser-rated cable,” is constructed to prevent fires from spreading floor to floor in vertical installations. It can be used whencablesneed to be run between floors through risers or vertical shafts.
• AWG24 cu cord is thicker than AWG26,AWG28, which means durable and longer life
• Transparent red coloured metal shielded connector for easy identification of Category 7A (1500 MHz)
• Inner conductors: Copper (Cu)
• PoE++ compatible

The Sunnytech Cat.7A S/FTP installation cable is characterized by the following cable construction 4x2x AWG24/1 and reaches a transmission frequency up to 1500 MHz. The halogen free cable jacket is conform to the standard IEC 60332-3-24, FRNC-C, LSZH-3 and CPR Euro class Dca. The cable is suitable for building structured cabling in the secondary and tertiary area. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-9-1.
