Server Technology STV-4104V
Product DescriptionSwitched PDU - 14.4kW, STV-4104VRetail Price $2,727.05witched PDU - 14.4kW, STV-4104VKey Features

• NETWORK MONITORINGGain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
• TEMPERATURE/HUMIDITY MONITORINGPrimary and Link units each support two external 10' (3m) T/H probes. Receive SNMP-based alerts and email notifications.
• AUTO-FLIP CURRENT DISPLAYEasy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets.
• PER-INLET POWER SENSINGMeets ANSI C12.1 for billing-grade accuracy of Current per phase. PIPS includes voltage, active power, apparent power, power factor, and energy.
• BRANCH CIRCUIT PROTECTIONThis PDU meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL489 rated magnetic-hydraulic circuit breakers or UL248 fuses.
• OUTLET CONTROLOn Switched rack PDUs, cycle power to individual outlets or groups of outlets to reboot servers. Or, power off unused receptacles.
• HIGH RETENTION LOCKING OUTLETSReceptacles have high retention and are compatible with P-Lock type power cords.
• HIGH TEMPERATURE RATINGThis product has been tested and approved for safe and reliable operation in 60 °C data center environments.
• FLEXIBLE MOUNTINGIncludes standard button mounts along with provisions for custom mounting brackets (contact Server Technology for details).
• DescriptionThe Server Technology® Switched PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® technology provides accurate measurement of current (billing-grade), voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The Switched “Primary” PDU can be connected to a Switched “Link” PDU to extend the network access to the redundant or secondary power feed.

InputsInput Voltage (V):208Input Plug:CS8365 3P+G 50AInput Current (A):50Input Current Rated (A):40Input Power Capacity (kW):14.4
OutputsConnectorRating(18) x IEC 60320/C13North American Rating: ≤ 12A @208V L-L (15A Peak)(6) x IEC 60320/C19North American Rating: ≤ 16A @208V L-L (20A Peak)Branch Circuit ProtectionUL489 Compliant 2-pole, 20A trip circuit breakers, six (6) branch, rating: ≤ 16A, 5 kAIC Interrupt Rating
PhysicalDimensions: 70.0in tall x 1.75in wide x 3.5in deep [1778mm x 45mm x 89mm]EnvironmentalOperating Environment:32°F to 140°F / 0°C to 60°C | 8%RH to 90%RH non-condensing | 6,500ft/2km elevation
Storage Environment:-40°F to 185°F / -40°C to 85°C | 8%RH to 90%RH non-condensing | 50,000ft/15km elevation
Quiescent / Unloaded Power Draw: < 10W for all configurations
Communications & Security10/100/1000 Mbps Ethernet (RJ-45 connector), RS-232 serial (RJ-45 connector)
Two (2) temperature/humidity sensor inputs (4P4C), Link port (RJ-12) - {also on Link PDU}
Web-browser GUI and command-line interface (CLI): HTTP/HTTPS, TLSv1.2, SSHv2, Telnet, SNMPv2c and v3 (GET, SET, Traps), IPv4 and IPv6, LDAPv3/LDAPS, TACACS+, RADIUS, FTP/SFTPCertificationsNorth American:
Safety (TUVR certified, cTUVus mark)

• UL Std. 60950-1, 62368-1
• CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1

EMC

• FCC Part 15 Subpart B Sections 15.107 & 15.109, Class A
• CAN ICES-003, Class A

Measurement AccuracyInput Measurement Accuracy:
Input Measurement Accuracy
LED Current = ± 10% at 0.1 amp (0.5 - 9.9 amps) and 1 amp (> 9.9 amps) resolution
GUI Current = ± 1% at 0.01 amp resolution (above 0.5 amp)
Voltage = ± 1% at 0.1 volt resolution (nominal ± 10%)
Active Power = ± 1% at 1 watt resolution
Apparent Power = ± 1% at 1 volt-amp resolution
Power Factor = ± 3% at 0.01 resolution
Crest Factor = ± 10% at 0.1 resolution
Energy = ± 1% at 0.1 kilowatt-hour resolution
Description

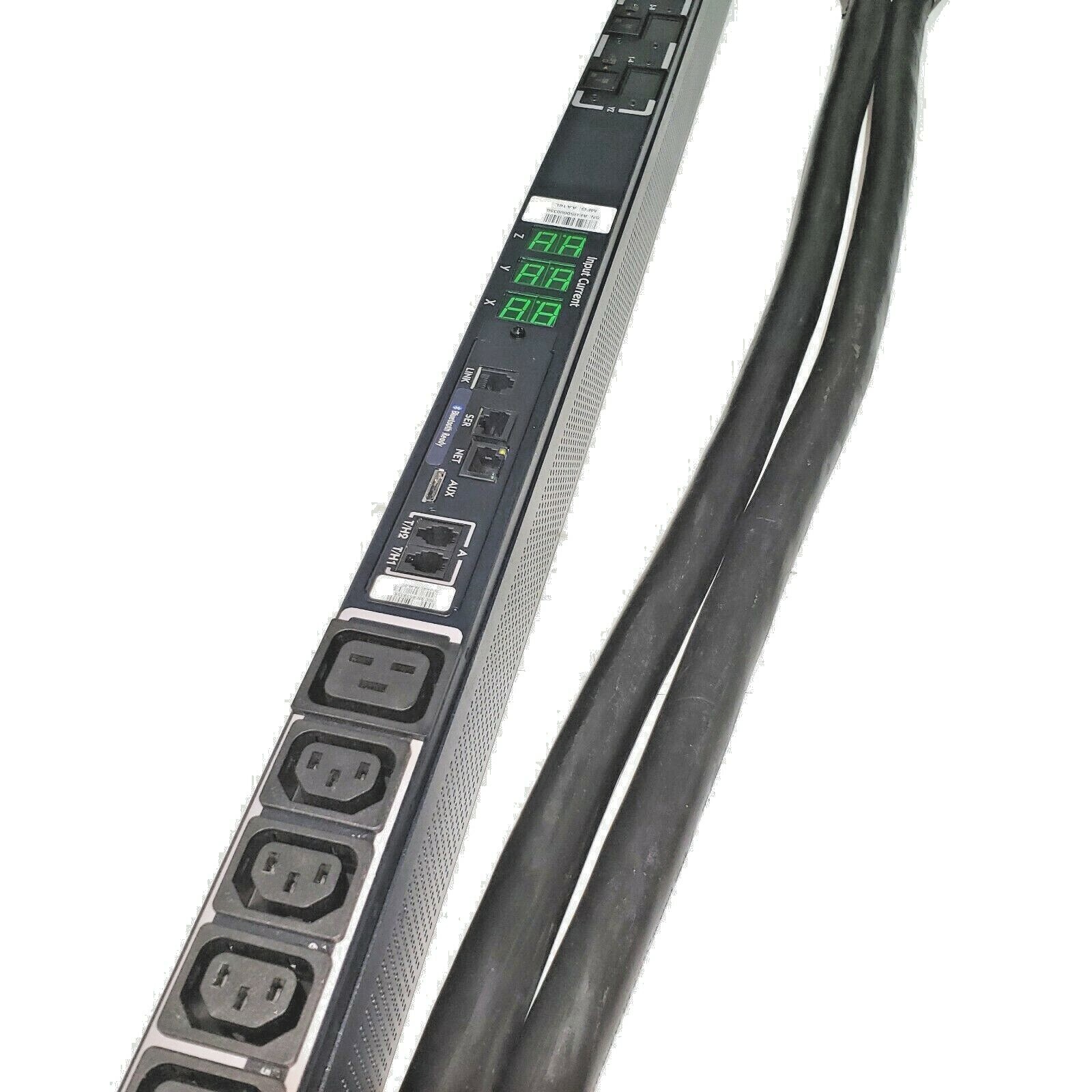

This is for one used Server Technology STV-4104V Switched PDU 208V 3PH 3W+PE 40A 24Outlet CS8365.This is a full-featured PDU’s with power monitoring and outlet switching capabilities.

• Includes one Server Technology STV-4104V Switched PDU 208V 3PH 3W+PE 40A 24Outlet CS8365as pictured above. Also includes button mount hardware. No other parts or accessories are included.
• This item is in good working and in good cosmetic condition. Cosmetic defects include light scratches and scuff marks.

Technical Specifications

• Input Voltage: 208 V
• Frequency: 50 / 60 Hz
• Input Plug:CS8365
• Input Current: 50A (Derated to 40A)
• Input Power Capacity: 14.4 kW
• Output Connectors:
• (18) IEC 60320 C13, North American Rating: ≤ 12A @208V L-L (15A Peak)
• (6) IEC 60320 C19, North American Rating: ≤ 16A @208V L-L (20A Peak)

Key Features

• Network Monitoring: Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
• Outlet Control: Individual outlet remote on/off switching. Cycle power to individual outlets or groups of outlets to reboot servers. Or, power off unused receptacles.
• Auto-Flip Current Display: Easy-to-read LEDs display current per phase to help prevent overloads and simplify load balancing in high density cabinets.
• Branch Circuit Protection: This PDU meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL248 fuses.

Additional informationWeight35.00 lbsDimensions76 × 6 × 6 inModel

STV-4104V

MPN

STV-4104V

Condition

New

Connector(s)

CS8365,IEC C13,IEC C19

Type

Power Distribution Panel

Features

Remote Monitoring,Remote Switching

Input Connector

CS8365

Brand

Server Technology

Voltage Compatibility

208 V,3
