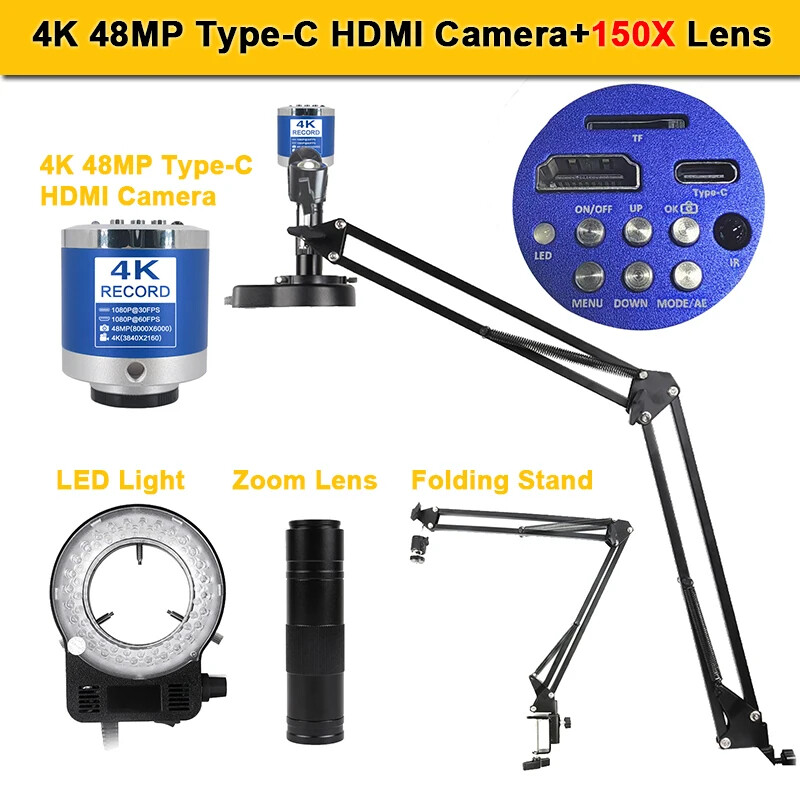

4K 48MP Digital Microscope Camera 150X Zoom Focus Led Lens Type-C HDMI Foldable Bracket Set For PCB Soldering Works
High-definition digital microscope, the stand can rotate and lift to meet your needs, and the lens supports 1-150X continuous zoom. It can definitely be a good helper for your daily work. QC inspection, educational purpose inspection, printing industry, industrial inspection, PCB materials, jewelry and philately, textile industry, biological inspection
Function:
1. Zoology, biology, botany, entomology, histology, mineralogy, archaeology, geology and dermatology.2. In the textile industry, used for inspection of raw materials and cotton fabrics.3. In the electronics industry, it is used as an operating tool for transistor welding, mobile phone electronic repair, watch repair and inspection, etc.4. In biological anatomy, applied to regional anatomy.5. In the manufacturing of precision parts, it is used in the installation of machine tools, observation of working processes, inspection and assembly of precision parts.6. Surface quality of lenses, prisms or other transparent substances and quality inspection of precision scales.7. Cultural relics, books, coins, calligraphy and paintings, inspection8. Widely used in textile products, chemistry, plastic products, electronic manufacturing, machinery manufacturing, pharmaceutical manufacturing, food processing, printing industry, universities, archaeological research and many other Model: Camera with HDMI USB2.0 two output
Image sensor: 48 megapixel Panasonic sensor
Frame rate: 1920*1080 60F/S @ HDMI output
Video save Movie size:4K(25fps) 2K(30fps) 1080P(60fps) 720P(60fps)(Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.)
Housing: All metal
Support: C-Mount lens
Digital magnification: 5 times digital zoom
White balance: Auto/manual
Cross cursor: Support multi-color, size adjustable
TF card interface: Max 32G
video format: MOV
HDMI interface: HDMI/USB output
Image : 48M 8000X6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456
Language: Chinese/English
Mirroring: line: 15 Horizontal line, 15 Vertical line, Central scale line, Custom colors, Size
Power supply:5-12V 1A

1X-150X Zoom C-mount Lens :Working distance: 50mm-1000mmzoom ratios: 1 : 15Magnification Power by 0.15- 2X (about 1 - 150X on the display)view field of Max multiple : 4.2mm*2.4mmview field of Min multiple : 130mm*70mmSize: 30mm(diameter) * 99mm(length)Weight: 195g

56 bright white LED bulbs：100,000 hours of lifeIntense and focused shadow-free illuminationThe brightness of 0-100%Adjustable,high brightnessVariable intensity controlPower input: 90-260V, 50-60HZSuit for the dia of the lens: 30mm-63mmWorking distance:400mm

Adjustable bracket ：size: 340mm+320mmMaximum thickness of bracket installation: 50mmIt is recommended that when the working distance exceeds 40cm, please use a work desk lamp to fill in the light.

Packages:

• A Set Camera Specification:
  Sensor: 1/2.8 Sony 2 million pixel imported sensorPixel size: 2.9µm × 2.9µmHDMI output: 1920*1080 60 framesTYPE-C output: 1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)Lens mount: C/CSExposure: automatic/manual/one-click exposureExposure compensation: supportWhite balance: automatic/manual/one-click white balance, supports RGB adjustableStorage: supports up to 64GBInput voltage: DC 5VLine: supports 16 straight/vertical lines, adjustable color, thickness and positionCenterline: SupportMenu language: English/Chinese/Traditional ChineseRemote control: supports remote control operationNet weight: 150gGross weight: 350 gramsProduct size: 68*68*47mmPackaging size: 145*130*70mm
  packing list:1*A Set microscope camera1*adapter1*Type C data cable1*HDMI cable1*remote control1*plastic ring1*Instruction manual

• B Set Camera Specification:
  Sensor: 1/2.33-inch SONY imx291 (upgraded version)HDMI output: 1920*1080 60PFSUSB output: 1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)Pixel size: 1.335μm × 1.335μmCamera interface: C/CSExposure: automatic/manualExposure compensation: supportWhite balance: automatic/manual, RGB adjustableStorage: supports up to 64GBInput voltage: DC 5v-12vline: supports 8 straight lines, color, thickness and position are adjustableCenterline: SupportMenu language: English/ChineseRemote control: Support remote control operationNet weight: 250 gramsThick weight: 450gProduct size: 66*66*49mmPackaging size: 145*130*70mm
  packing list:1*B Set microscope camera1*adapter1*HDMI cable1*remote control1*Instruction manual

• C Set Camera Specification:
  Sensor: GC2053Overall dimensions: 75*50*50mmVideo interface: HDMI VGALens: CSWorking voltage: 12VWorking current: 150mAOptical format: 1/3\"\"Pixel size: 2.8um*2.8umTV line: 1200TV lineMaximum image frame rate: 60FPSScan mode: progressive scanShutter mode: electronic shutterDynamic range: 65dBWireless signal-to-noise ratio: 45dBOSD language: English/ChineseAWB mode: One-time white balance/manual/autoHDR: AdjustableCrosshair: supports 8 colors/adjustable line widthBlack and white: allowedNegative: allowMirror flip: supports left/right/up/downFreeze: AllowedCompare: AllowManually set brightness, contrast, sharpness, saturation: AllowedOutput display resolution: HDMI: 16:9, 4:3 VGA: 1920*1080P or aboveName: XVH2003color: redSize: 50*50*63mmWeight: 301gOutput interface: HDMI VGAResolution: 1920*1080PRemote control: yesFeatures: remote control function, bracket mounting holes on the side, and power switch button. The camera power plug cannot be replaced (US/GB)
  packing list:1*C Set microscope camera1*power cord1*remote control1*Instruction manual
• 1X-150X zoom C-mount lens：Working distance: 50mm-1000mmZoom ratio: 1:15Magnification: 0.15-2X (approx. 1-150X on display)Maximum magnification field of view: 4.2mm*2.4mmMinimum magnification field of view: 130mm*70mmSize: 30mm (diameter) * 99mm (length)Weight: 195g

• Collapsible support Feature：
  Multi-directional folding optional installation, multi-purpose.Size: 340 mm * 320 mmMaximum bottom mounting size: 50mm

Notes:

• To get full 48MP 4k please connect using HDMI not USB or VGA.

• To Record or save videos in 48MP 4k Please use TF CARD not USB.
