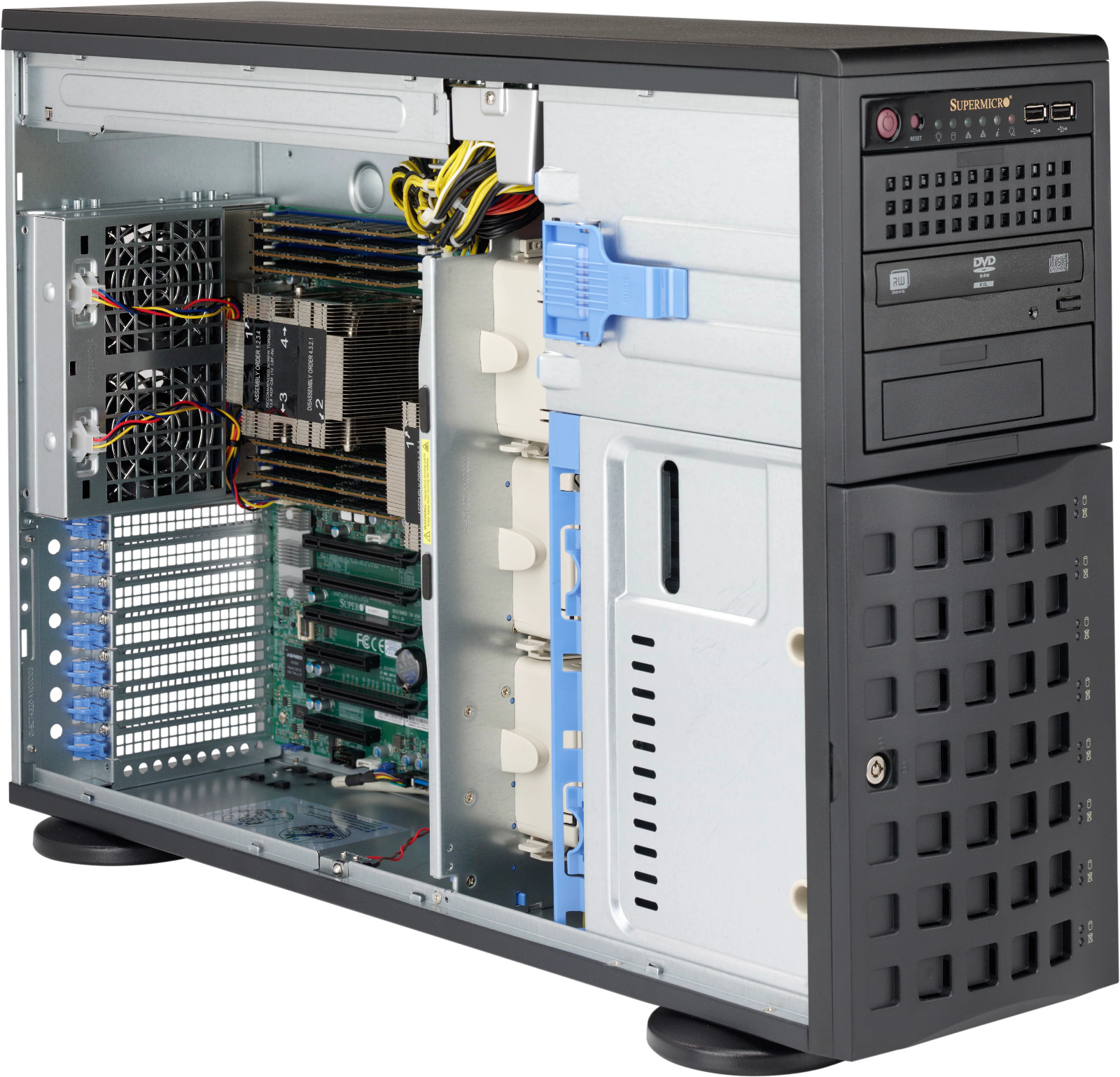

SuperMicro CSE-745BAC-R1K23B 4U 1200W Tower Chassis
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
SuperMicro CSE-745BAC-R1K23B 4U 1200W Tower Chassis
Price: US $1363.85
Key Features
  1. 8x 3.5"/ 2.5" SAS3/SATA3 Backplane for Hot-Swappable Drives
  2. Front HDD Door Lock & Side Panel Intrusion Switch
  3. Front I/O Ports: 2x USB 3.0
  4. 3x Middle 8cm (9400 rpm) PWM Fans & 2x 8cm (9400 rpm) PWM Fans
  5. 4U / Full Tower Chassis Supports max. Motherboard, Sizes - E-ATX 13.68" x 13"/ATX/Micro ATX
  6. 1200W (1 + 1) Redundant Titanium Level Certified High-Efficiency Power Supply
  7. 3x 5.25" External HDD Drive Bays & 8x 3.5"/2.5" Hot-Swappable HDD Drives

Form Factor
  • 4U tower chassis - supports maximum motherboard sizes up to E-ATX 13.68" x 13"
Processor Support
  • Dual and Single Intel® and AMD processors
Dimensions Height
  • 17.8" (452 mm)
Width
  • 7" (178 mm)
Depth
  • 25.5" (647 mm)
Gross Weight
  • 62 lbs (28.12 kg)
Net Weight
  • 59 lbs (26.76 kg)
Packaging (W x H x L)
  • 24.6" (625 mm) x 14" (356 mm) x 31.3" (795 mm)
Available Color
  • Black
Product SKUs SuperChassis 745BAC-R1K23B
