Key Features

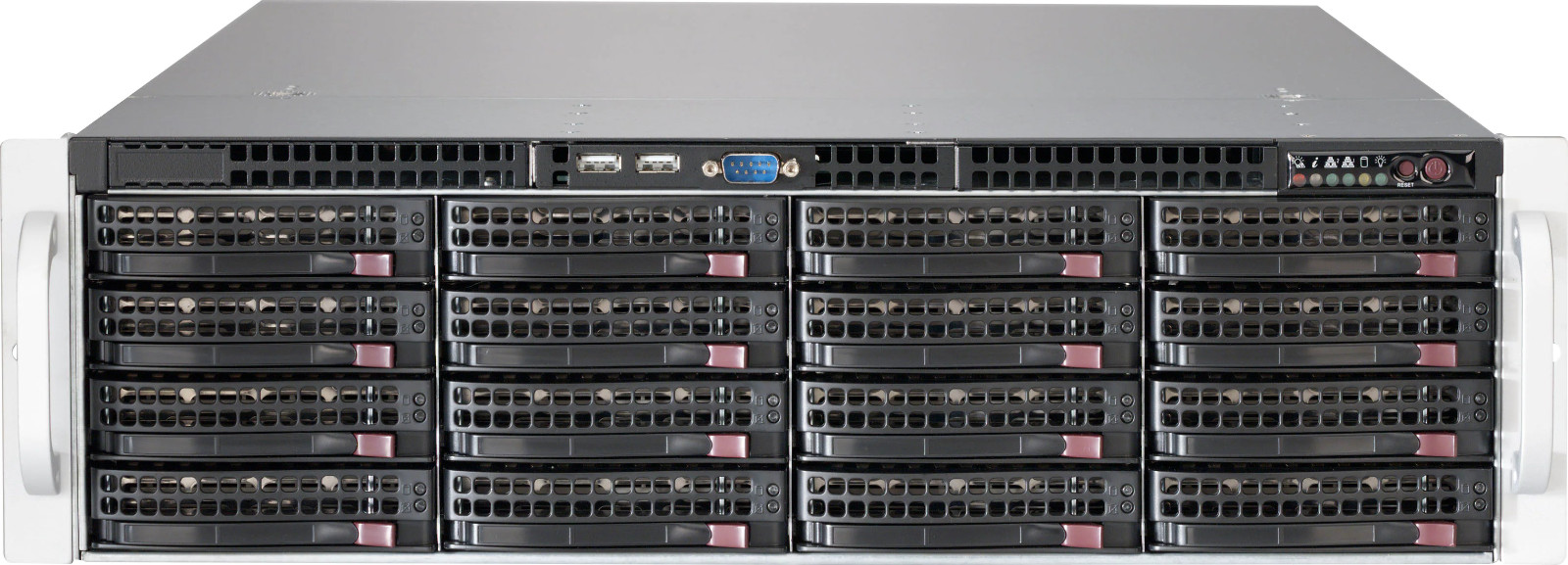

1. Cloud Backup, Data Replication, or High Density Archive Storage Applications3U Storage JBOD Chassis with capacity 16 x 3.5" hot-swappable HDDs bays
2. Single Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
3. 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
4. 1x IPMI port for Remote System Power on/off and system monitoring
5. Support NTP for time synchronization & RTC battery backup
6. 600W (1+1) 94% efficient Platinum level power supplies
7. 5 hot-plug redundant cooling fans
8. Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
9. Qualified SAS HBA / controller:
   AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
   AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
   AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller

Dimensions Height

• 5.2" (132 mm)

Width

• 17.2" (437 mm)

Depth

• 25.5" (647 mm)

Gross Weight

• 75 lbs (34.02 kg)

Net Weight

• 36 lbs (16.33 kg)

Packaging (W x H x L)

• 26.6" (676 mm) x 13" (330 mm) x 39.9" (1013 mm)
