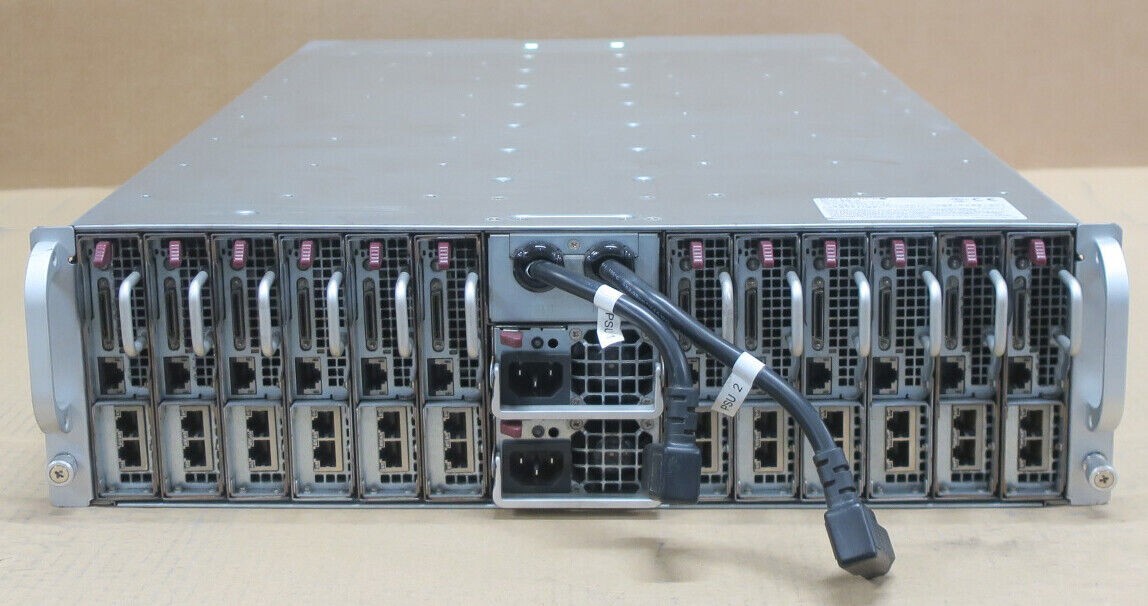

Supermicro MicroCloud 5037MC-H12TRF 12-Node Server X9SCE-F CTO No CPU/Memory/HDD

Chassis P/N:5037MC-H12TRF

Node P/N:X9SCE-F

In Good Condition, Full Working Order

Tested, 2 Year Warranty

CTO Configure-To-Order

CTO Server, no memory, no CPU, no HDD included - required in order to operate, we can quote to supply if required

Included

• 1 xSupermicro MicroCloud 5037MC-H12TRF12-Node Server Chassis
• 1 x CSE939 MicroCloud (12 node) hotswap backplane - BPN-SAS-939H rev 1.01
• 2 x 1620W Power Supply - PWS-1K63S-1R
• 12 x Server NodesEach With:
• Motherboard -Super X9SCE-F rev 1.01A
• 1 x Heatsink
• 2 x 3.5" SATA Hard Drives
• 1 x Power Board AOM-PDB-MC12 rev 1.02
• 1 x Dual Port Gigabit Ethernet Network Card Super AOC-CGP-i2M rev 1.01

Full Manufacturers specification:SuperServer

• SYS-5037MC-H12TRF (Black)

MotherboardSuper X9SCE-F**Processor/CacheCPU

• Intel® Xeon® processor E3-1200 v2 series, Intel® 2nd Gen. Core i3 & Intel® Pentium® family processors***
• Up to 69W
• Socket H2 (LGA 1155)

System Memory (per node)Memory Capacity

• 4x 240-pin DDR3 DIMM slots
• Supports up to 32 GB DDR3 VLP ECC Un-Buffered memory (UDIMM)

Memory Type

• 1333/1600MHz*** ECC DDR3 (VLP) SDRAM 72-bit, 240-pin gold-plated UDIMMs

DIMM Sizes

• 8GB, 4GB, 2GB, 1GB

Memory Voltage

• 1.5 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices (per node)Chipset

• Intel® C204 PCH chipset*

SATA

• 1x SATA DOM

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM over LAN support
• Nuvoton WPCM450 BMC

Graphics

• Matrox G200eW 16MB DDR2

Super I/O

• Nuvoton WPCM450RA0BX

Network Devices (per node)Micro-LP NIC

• Intel® i350 GbE controller
• Dual RJ-45 connectors
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• Intel® I/O Acceleration Technology (I/O AT)
• MicroLP Adapter Matrix(Networking options)

Input / Output (per node)Serial ATA

• 2 SATA3 (6Gbps), 2 SATA2 ports (3Gbps)

LAN

• 2 RJ45 Gigabit Ethernet LAN ports
• 1 RJ45 Dedicated IPMI LAN port

KVM

• 1 VGA, 1 COM, and 2 USB 2.0 ports

System BIOSBIOS Type

• 64Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• Plug and Play (PnP)
• APM 1.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• RTC (Real Time Clock) Wakeup

Front Window (each node)Switch

• Power / UID

ChassisForm Factor

• 3U

Model

• 5.21" (132.5 mm)

Width

• 17.5" (444.5 mm)

Depth

• 29.5" (749.3 mm)

Package

• 16.1" (H) x 28.35" (W) x 42.36" (D)

Weight

• Net Weight: 95.0 lbs (43.09 kg)
• Net Weight w/ 2.5" HDDs: 115 lbs (52.16 kg)
• Net Weight w/ 3.5" HDDs: 132 lbs (59.87 kg)
• Gross Weight: 125 lbs (56.70 kg)

Color

• Black

Drive Bays (per node)Internal

• 2x 3.5" SATA3 HDDs per node; up to 24x 3.5" HDDs total (SW RAID 0, 1) OR
  4x 2.5" SATA (2x SATA3 + 2x SATA2) HDDs per node; up to 48x 2.5" HDDs total (SW RAID 0, 1, 10)
• Enterprise SATA HDD only recommended

System CoolingFans

• 4x 9cm Heavy duty fans with optimal cooling zone

Power Supply1620W high-efficiency redundant power supply w/ PMBusAC Input

• 1000W Output @ 100-120V, 12-10A, 50-60Hz
• 1200W Output @ 120-140V, 12-10A, 50-60Hz
• 1620W Output @ 180-240V, 10.5-8A, 50-60Hz

DC Output

• 1000W: +12V/84A; +5Vsb/4A
• 1200W: +12V/100A; +5Vsb/4A
• 1620W: +12V/135A; +5Vsb/4A

CertificationPlatinum LevelPC Health MonitoringCPU

• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
• 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V

FAN

• Cooling zone

Temperature

• Monitoring for CPU and chassis environment

Operating Environment / ComplianceRoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
  10°C to 35°C (50°F to 95°F)
• Non-operating Temperature:
  -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)

We can supply this server with a different specification to suit your requirements; more or less memory, different or additional hard drives, additional network cards etc. Please contact us for a quote.
