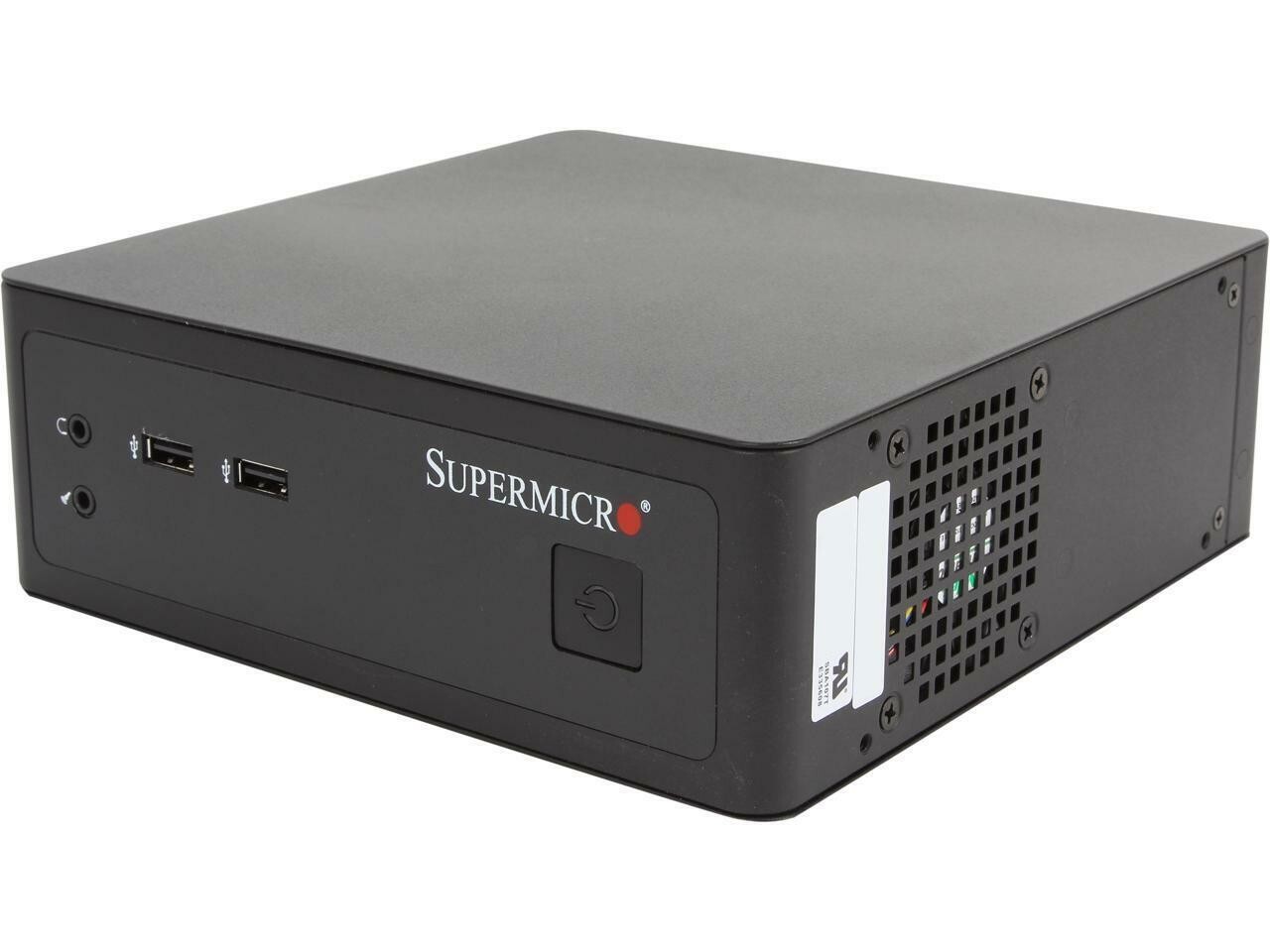

Supermicro SYS-1017A-MP Mini-ITX Atom System
These are leftover brand new from an OEM project. These come with a 5 Year Warranty from Vector Data.
Product SKUsSYS-1017A-MP

• SuperServer 1017A-MP (Black)

Motherboard
Super X9SCAAProcessor/CacheCPU

• Socket FCBGA559
• Intel® Atom™ N2800 (2 Core) processors support
• 1MB, 1.86GHz, 2C/4T, HT, 64-bit, 6.5W

System MemoryMemory Capacity

• 2x 204-pin SO-DIMM slots
• Supports up to 4GB of non-ECC DDR3 1066MHz (Single Channel)
• Some 1333MHz memory can be used, but memory capacity will operate at 1066MHz

Memory Type

• 1066MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs

DIMM Sizes

• 2GB, 1GB

Memory Voltage

• 1.5 V

On-Board DevicesChipset

• Intel® NM10 Express Chipset

SATA

• SATA 2.0 (3Gb/s)

Network Controllers

• Intel® 82574L dual-port Gigabit Ethernet LAN ports
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Audio

• Realtek ALC888S-VD2 HD Audio

Graphics

• Integrated Intel® GMA 3650

USB 3.0

• Renesas uPD720202

Input / OutputSATA

• 2x SATA2 ports

LAN

• 2x RJ45 LAN ports

USB

• 2x USB 3.0 ports (2 rear)
• 4x USB 2.0 ports (2 rear, 2 front)

Video Output

• VGA, HDMI, Display Port

ChassisForm Factor

• 7.68\" (195mm)

Height

• 2.68\" (68mm)

Depth

• 7.68\" (195mm)

Weight

• Gross Weight: 5.75 lbs (2.6 kg)
• Net Weight: 3.86 lbs (1.75 kg)

Available Colors

• Black

Front PanelButtons

• Power button

LEDs

• Power LED (Hard drive activity LED)

I/O Ports

• 2x USB 2.0
• 2x Audio Jacks

Expansion SlotsPCI-E

• 1x Mini-PCI-E

Drive BaysInternal

• 1x 2.5\" HDD tray
• Enterprise SATA HDD only recommended

System CoolingFans

• 1x 6cm 4-pin high performance cooling fan

Power Supply60W DC Power AdapterSystem BIOSBIOS Type

• 64Mb SPI Flash EEPROM with AMI UEFI BIOS

BIOS Features

• Plug and Play (PnP)
• DMI 2.3
• ACPI 1.0 / 2.0
• USB Keyboard support
• RTC (Real time Clock) Wakeup

Operating Environment / ComplianceRoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
  0°C to 40°C (32°F to 104°F)
• Non-operating Temperature:
  -20°C to 60°C (-4°F to 140°F)
• Operating Relative Humidity:
  10% to 85% (non-condensing)
• Non-operating Relative Humidity:
  10% to 95% (non-condensing)

See Parts ListParts List - (Items Included)Part NumberQtyDescriptionMotherboard / X9SCAA Motherboard
Embedded Mini-ITX ChassisPower Supply and accessoryMCP-250-10105-0N160W DC power adapter with US power cord 18AWG 6ft RoHS, PBFManualMNL-1497-QRG11017A-MP, QRG, HF, RoHS/REACH, PBFI/O ShieldMCP-260-00058-0N1Standard I/O Shield for X9SCAA/-L with EMI Gasket
Vector Data builds rugged, carrier-grade and custom systems.
We use to sell our OEM surplus and to reach customers across the globe.
On-site installation is available for an additional fee. We also accept trade-in\'s of any systems or data center equipment that you may be trying to get rid of.
Please contact us to have a custom product listing created for you if you require a custom configuration or need a part that is not listed.
