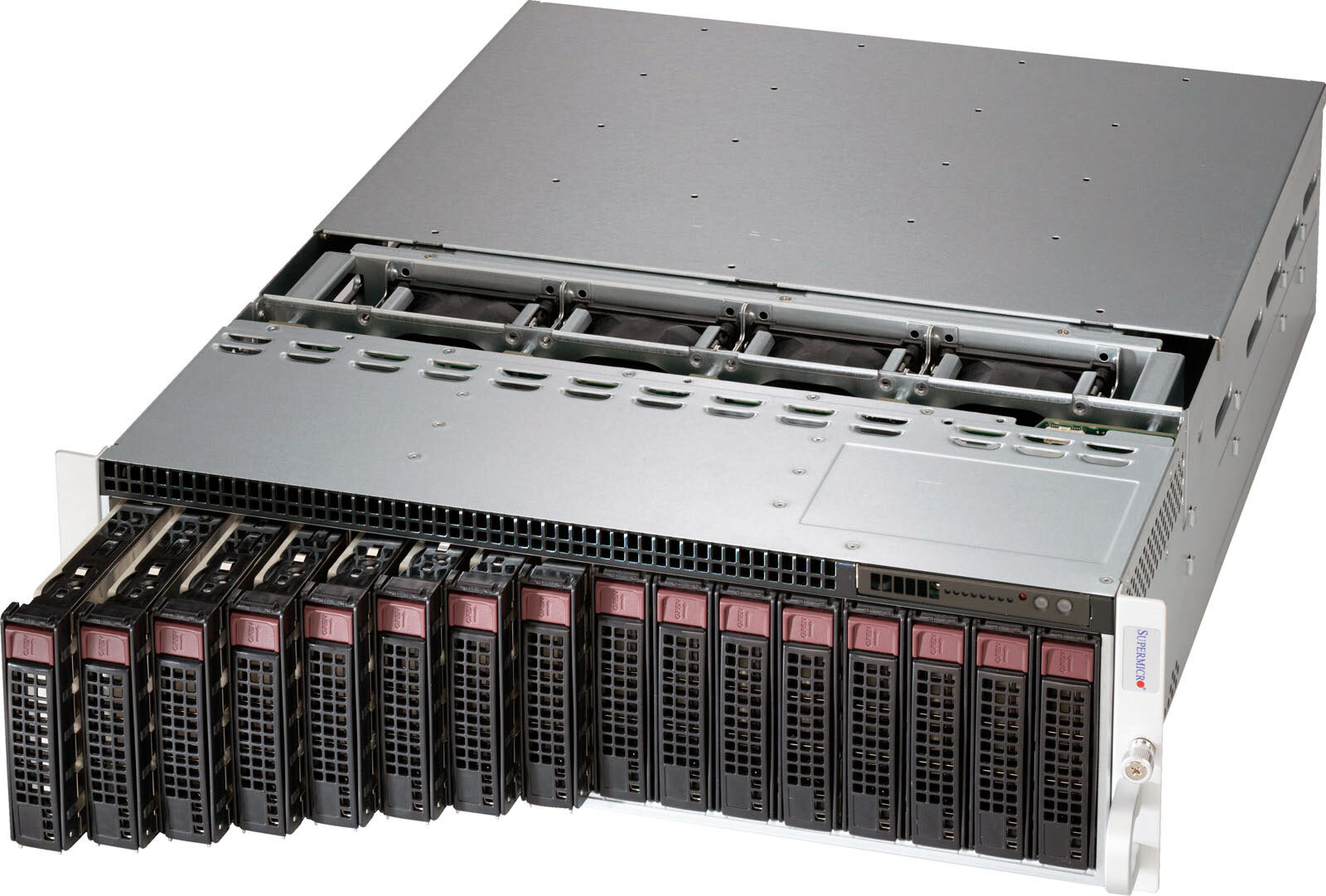

SupermicroSYS-5037MR-H8TRF8-Node MicroCloud Barebones Server
These are leftover brand new servers from an OEM project. These come with a 5 Year Warranty from Vector Data.
Product SKUsSuperServer

• SYS-5037MR-H8TRF (Black)

MotherboardSuper X9SRD-FProcessor/CacheCPU

• Single Socket R (LGA 2011)
• Intel® Xeon® processor E5-2600
  andE5-2600 v2family†
  (up to 12 cores and up to 130W)

Note† BIOS version 3.0 or above is requiredCache

• Up to 30MB

System Bus

• QPI up to 8 GT/s

System Memory (per node)Memory Capacity

• 4x 240-pin DDR3 DIMM slots
• Supports up to 128 GB DDR3 ECC Registered memory (RDIMM)
• Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)

Memory Type

• 1866/1600/1333/1066MHz ECC DDR3, 240-pin gold-plated DIMMs

DIMM Sizes

• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB

Memory Voltage

• 1.5 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices (per node)Chipset

• Intel® C602J Chipset

SATA

• 1x SATA DOM
• SATA 3.0 6Gbps with RAID 0, 1

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM over LAN support
• Nuvoton WPCM450 BMC

Headers

• 1 USB Type A 3.0, TPM ready

Graphics

• Matrox G200eW 16MB DDR2

Super I/O

• Nuvoton WPCM450RA0BX

Network Devices (per node)MicroLP NIC

• Intel® i350, 2x Gigabit LAN ports
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• Intel® I/OAT 3support for fast, scaleable, and reliable networking
• VMDqsupport for better performance of virtualization
• MicroLP Adapter Matrix(Networking options)

Input / Output (per node)Serial ATA

• 2x SATA 3.0 ports (6Gbps)

LAN

• 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port

KVM

• 1x VGA, 1x COM, and 2x USB 2.0 (with KVM dongle) ports

System BIOSBIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• Plug and Play (PnP)
• APM 1.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• RTC (Real Time Clock) Wakeup

Rear Window (each node)Switch

• Power / UID

ChassisForm Factor

• 3U

Model

• 5.21" (132.5 mm)

Width

• 17.26" (438.4 mm)

Depth

• 23.2" (589 mm)

Package

• 11.65" (H) x 26.26" (W) x 34" (D)

Weight

• Net Weight: 62.2 lbs (28.21 kg)
• Gross Weight: 88 lbs (39.92 kg)

Color

• Black

Front PanelButtons

• Power On/Off button

LEDs

• Power LED
• Node status LED

Expansion Slots (per node)PCI-Express

• 1 (x8) PCI-E 3.0 Low-profile slot
  MicroLP Adapter Matrix(Networking options)
• AOC Compatibility Matrix

Drive Bays (per node)Hot-swap

• 2x 3.5" hot-swap SATA3 (6Gbps) HDDs per node; up to 16 HDDs total
• Enterprise SATA HDD only recommended

System CoolingFans

• 4x 8cm 11K RPM, 4-pin PWM cooling fans

Power Supply1620W high-efficiency redundant power supply w/ PMBusAC Input

• 1000W Output @ 100-120V, 12-10A, 50-60Hz
• 1200W Output @ 120-140V, 12-10A, 50-60Hz
• 1620W Output @ 180-240V, 10.5-8A, 50-60Hz

DC Output

• 1000W: +12V/84A; +5Vsb/4A
• 1200W: +12V/100A; +5Vsb/4A
• 1620W: +12V/150A; +5Vsb/4A

Certification Platinum Certified
[Test Report]PC Health MonitoringCPU

• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
• 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V

FAN

• Cooling zone

Temperature

• Monitoring for CPU and chassis environment

Operating Environment / ComplianceRoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
  10°C to 35°C (50°F to 95°F)
• Non-operating Temperature:
  -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)

See Parts ListParts List - (Items Included)Part NumberQtyDescriptionMotherboard / X9SRD-F Motherboard
3U ChassisAir ShroudMCP-310-93801-0B1Mylar air shroud portion-1 for SC938, X9SCDAdd-On 3U (CSE-938) MicroCloud 6Gbps backplane, support up to 16x 3.5-inch SAS/SATA HDDCable 1CBL-0218L1USB/KVM/SUVI,36 PIN TO 9 PIN/15 PIN/2 USB CH,11.5CM,30/28AWGRiser CardRSC-RR1U-E88RSC-RR1U-E8Heatsink / RetentionSNK-P0047PS+8Customized Passive CPU Heat Sink for Micro Cloud Series ServersPower SupplyPWS-1K62P-1R21620W REDUNDANT POWER MODULEManualn/a13U Super MicroCloud SystemMounting RailMCP-290-00057-0N-Rail set, quick/quick, default for 4U 17.2"W
Optional Parts ListPart NumberQtyDescriptionMicroLP 10 Gigabit Ethernet Adapter
- Dual-port 10 Gigabit Ethernet Adapter
- InfiniBand FDR AdapterHDD ConverterMCP-220-93801-0B-Black 3.5" Hot-swap to 2.5" HDD Tray (SC747, 936, 938 & Blade)
Vector Data builds rugged, carrier-grade and custom systems.
We use to sell our OEM surplus and to reach customers across the globe.
On-site installation is available for an additional fee. We also accept trade-in's of any systems or data center equipment that you may be trying to get rid of.
Please contact us to have a custom product listing created for you if you require a custom configuration or need a part that is not listed.
