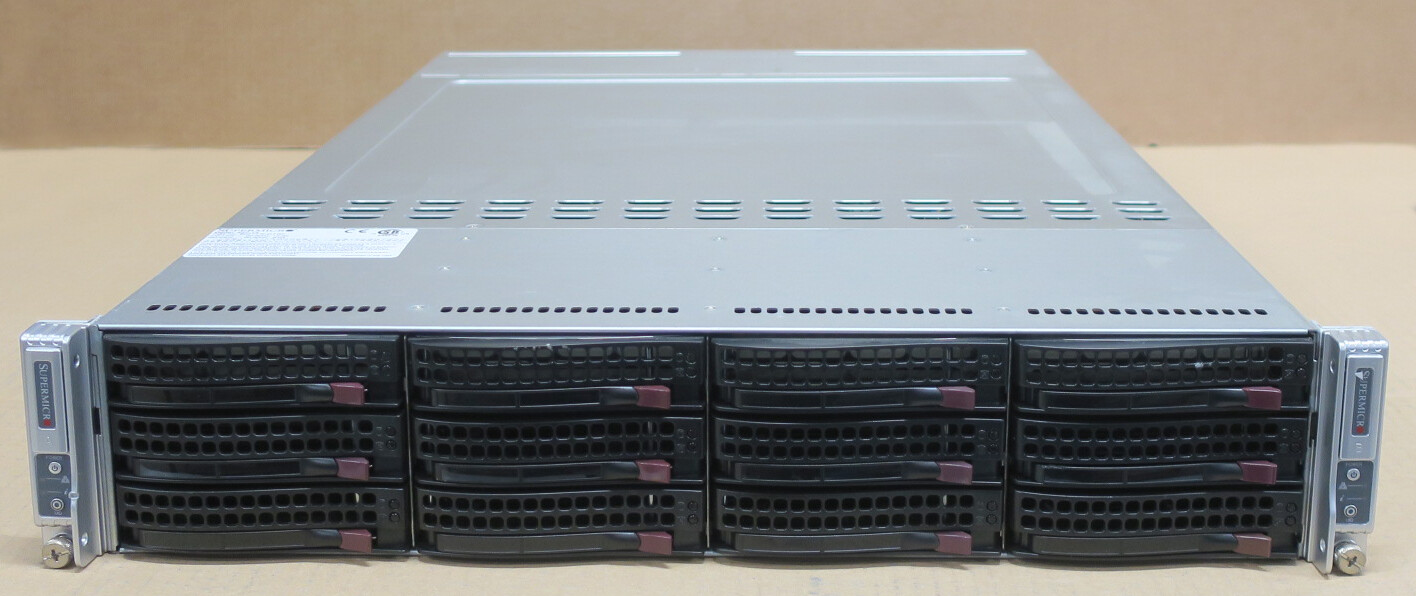

Supermicro SuperServer 6027TR-DTRF 2-Node Server X9DRT-HF CTO No CPU/Memory/HDD
Chassis P/N:6027TR-DTRF
Node P/N:X9DRT-HF
In Good Condition, Full Working Order
Tested, 2 Year Warranty
CTO Configure-To-Order
CTO Server, no memory, no CPU, no HDD included - required in order to operate, we can quote to supply if required
Included
- 1 xSupermicro SuperServer 6027TR-DTRF2-Node Server Chassis
- 12 x 3.5\" SAS / SATA Hard Drive Bays With 12 x Hard Drive Caddies
- Backplane - Super SAS-827HD rev 1.10
- 2 x 1280W Power Supply - PWS-1K28P-SQ
- 2 x Server NodesEach With:
- Motherboard -X9DRT-HF rev 1.21A
- 2 x Heatsinks
- Backplane Adapter -BPN-ADPX9-6SATA rev 1.21
- 1 x 2U Riser Card W/ 3 PCI-E x8 Twin MBs - RSC-R2UT-3E8R rev 1.00
Full Manufacturers specification:
Product SKUsSYS-6027TR-DTRF
- SuperServer 6027TR-DTRF (Black)
Motherboard
Super X9DRT-HFProcessor/CacheCPU
- Dual Socket R (LGA 2011)
- Intel® Xeon® processor E5-2600
andE5-2600 v2family†
(up to 135W TDP *)
Note† BIOS version 3.0 or above is requiredCache
System Bus
System MemoryMemory Capacity
- 8x 240-pin DDR3 DIMM slots
- Up to 512GB DDR3 ECC LRDIMM
- Up to 256GB DDR3 ECC Registered memory (RDIMM)
Memory Type
DIMM Sizes
- 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage
Error Detection
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
On-Board DevicesChipset
SATA
- SATA 2.0 & 3.0 with RAID 0, 1, 5, 10
IPMI
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- Nuvoton WPCM450 BMC
Network Controllers
- Intel® i350 Dual Port Gigabit Ethernet
- Virtual Machine Device Queues reduce I/O overhead
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
- 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics
Input / Output (per Node)Serial ATA
- 2x SATA 3.0 ports (6Gbps)
- 4x SATA 2.0 ports (3Gbps)
LAN
- 2x RJ45 Gigabit Ethernet LAN ports
- 1x RJ45 Dedicated IPMI LAN port
USB
- 3x USB 2.0 ports total
(2x rear + 1x Type A)
VGA
Serial Port / Header
- 1x Fast UART 16550 port / 1 Header
ChassisForm Factor
Model
Height
Depth
Gross Weight
Available Colors
Front PanelButtons
- Power On/Off button
- System Reset button
- UID button
LEDs
- Power status LED
- HDD activity LED
- 2x Network activity LEDs
- Universal Information (UID) LED
Expansion Slots (per Node)PCI-Express
- 3x PCI-E 3.0 (x8) slots (1x Low-profile and 2x Full-height half-length)
Drive Bays (per Node)Hot-swap
- 6x 3.5\" Hot-swap SATA3/SATA2 HDD trays
System CoolingFans
- 4x 8cm heavy duty PWM fans with optimal fan speed control
Power Supply1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2AC Input
- 1000W Output @ 100-140V, 8-12A, 50-60Hz
- 1280W Output @ 180-240V, 6-8A, 50-60Hz
DC Output
- 1000W: +12V/83A; +5Vsb/4A
- 1280W: +12V/106.7A, +5Vsb/4A
CertificationPlatinum Certified
System BIOSBIOS Type
- 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
- Plug and Play (PnP)
- APM 1.2
- PCI 2.2
- ACPI 1.0 / 2.0
- USB Keyboard support
- SMBIOS 2.3
- UEFI
Operating Environment / ComplianceRoHS
Environmental Spec.
- Operating Temperature:
10°C to 35°C (50°F to 95°F) - Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F) - Operating Relative Humidity:
8% to 90% (non-condensing) - Non-operating Relative Humidity:
5% to 95% (non-condensing)
We can supply this server with a different specification to suit your requirements; more or less memory, different or additional hard drives, additional network cards etc. Please contact us for a quote.
