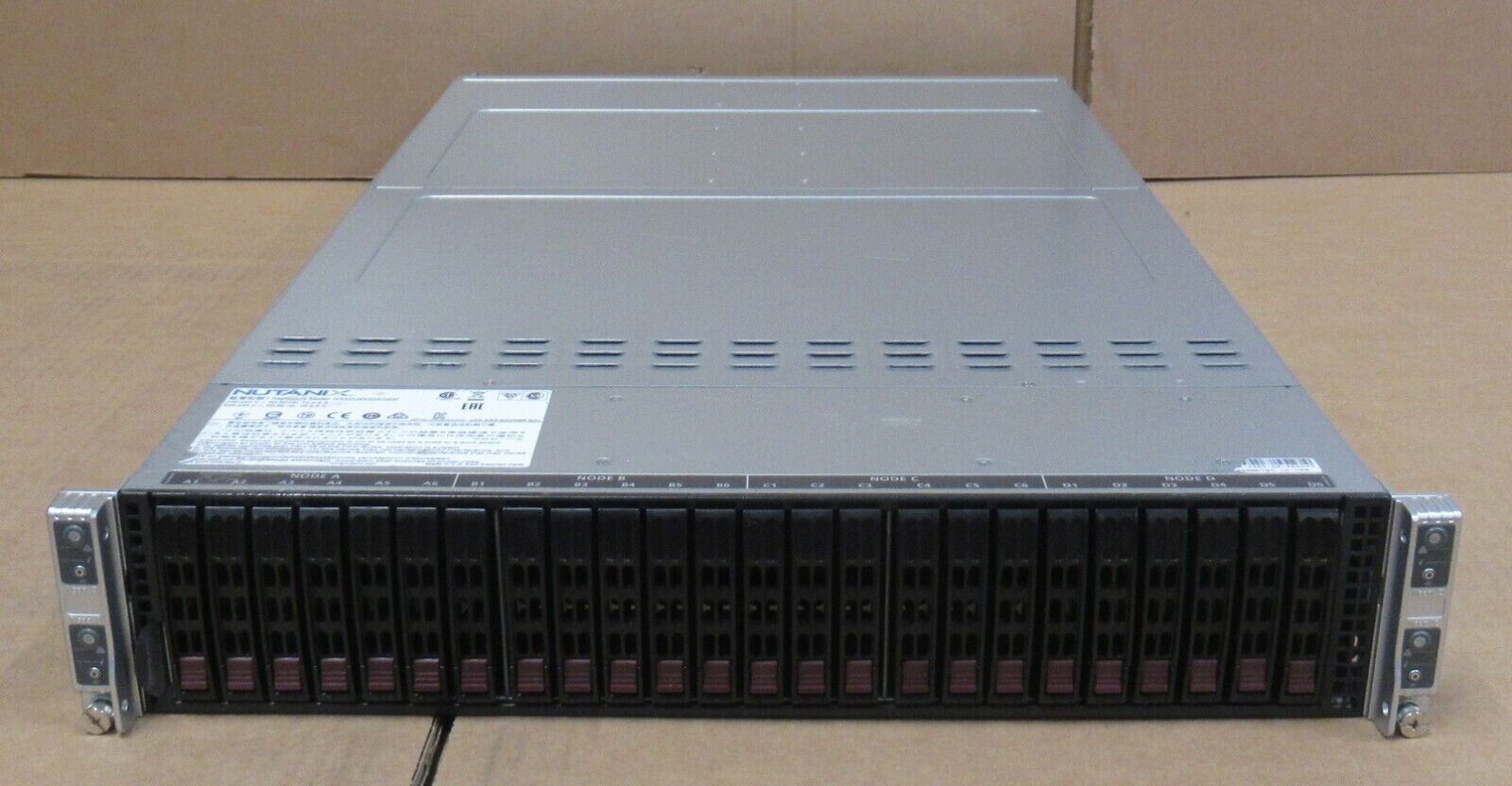

Supermicro SuperServer CSE-217 24-Bay 4x Node Chassis + 3 x X10DRT-P CTO NodesChassis P/N: CSE-217Node P/N: X10DRT-P
In Good Condition, Full Working OrderTested2 Years Warranty
CTO Configure-To-OrderCTO Server, no memory, no CPU, no HDD included - required in order to operate, we can quote to supply if required
Included:

• 1 x Supermicro SuperServer CSE-217 4-Node Server
• 24 x 2.5” SAS Bays
• Backplane: 24x SAS/SATA SSD/HDD Bays BPN-SAS3-217HQ-NI22
• 2 x Power Supplies 2000W Power Supply
• 3 x Server NodesX10DRT-P Nodes each with:
• Up to 2x Intel Xeon E5-2600v3/v4 Family Processors
• 16 x DDR4 DIMM Slots
• Motherboard - X10DRT-P
• Backplane Adapter - BPN- S3008L-L61P-NI22
• 1 x Riser Card - RSC-R1UTP-E16R

Full Manufacturers specification:
Product SKUsMBD-X10DRT-P

• Proprietary Twin

Dimensions

• 6.8\" x 18.86\" (17.27cm x 47.9cm)

Processor/CacheCPU

• Intel Xeon processor E5-2600 v3, Intel Xeon processor E5-2600 v4.
• Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W

Cores / Cache

• Up to 22 cores † / Up to 55MB† cache

Note

• † BIOS version 2.0 or above is required

Note

• ** Motherboard supports this maximum TDP. Please verify your system can thermally support.

System MemoryMemory Capacity

• 2TB 3DS ECC RDIMM, DDR4-2133MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots

Memory Type

• 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes

• RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
• LRDIMM: 32GB, 64GB
• 3DS LRDIMM: 128GB

Memory Voltage

• 1.2V

Error Detection

• Corrects single-bit errors

On-Board DevicesChipset

• Intel C612

SATA

• Intel C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

AHCI SATA

• SATA3 (6Gbps); RAID 0, 1, 5, 10

SCU SATA

• SATA3 (6Gbps); RAID 0, 1, 5, 10

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC

Network Controllers

• Dual LAN with Intel® Ethernet Controller I350-AM2
  Single LAN with Virtual Machine Device Queues reduce I/O overhead
  Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)

Graphics

• Aspeed AST2400 BMC

Input / OutputSATA

• 10 SATA3 (6Gbps) port

LAN

• 2 RJ45 Gigabit Ethernet LAN ports
• 1 RJ45 Dedicated IPMI LAN port

USB

• 3 USB 3.0 ports (2 rear + 1 Type A)

Video Output

• 1 VGA port

TPM

• 1 TPM Header

Expansion SlotsPCI-E

• 1 PCI-E 3.0 x16,
• 1 PCI-E 3.0 x8,
• 1 PCI-E 3.0 x8 connector for SMC add-on cards,
• 1 PCI-E 3.0 x16 connector for SMC add-on cards

System BIOSBIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• Plug and Play (PnP)
• PCI 2.3
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• USB Keyboard support
• SMBIOS 2.7.1
• UEFI 2.3.1

ManagementSoftware

• IPMI2.0, NMI, SuperDoctor 5, Watchdog

System Management Software

• SPM
• SUM
• SSM
• SuperDoctor 5

Power Configurations

• ACPI Power Management
• Power-on mode for AC power recovery

PC Health MonitoringVoltage

• +12V, +3.3V, +5V, 3.3V standby, 6 Phase-switching voltage regulator, Memory Voltages, VBAT

FAN

• 2x 4-pin fan headers (up to 2 fans), 4 fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control

Temperature

• Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 4 Fan Connectors (2 fans on backplane), Thermal Monitor 2 (TM2) support, PECI

LED

• CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID

Other Features

• RoHS

Operating EnvironmentOperating Temperature Range

• 10°C - 35°C (50°F - 95°F)

Non-Operating Temperature Range

• -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range

• 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range

• 5% - 95% (non-condensing)

We can supply this server with a different specification to suit your requirements; more or less memory, different or additional hard drives, additional network cards etc. Please contact us for a quote.
