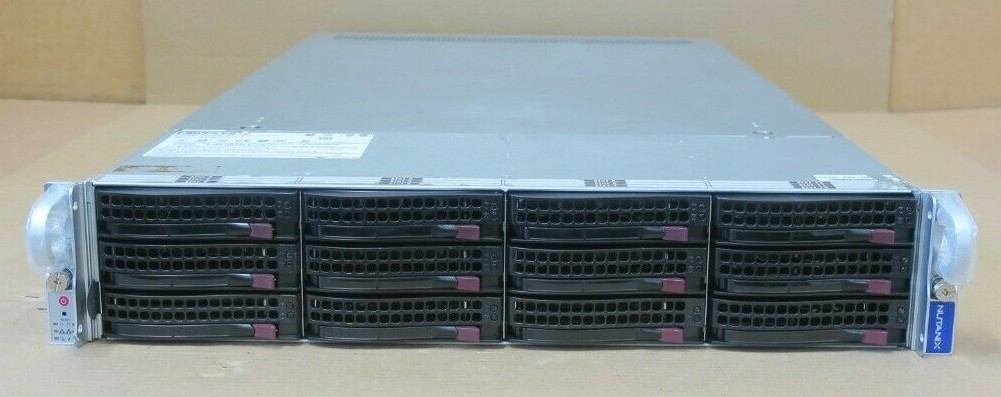

Supermicro SuperServer CSE-829U X10DRU-i+ 12x 3.5" SAS HDD Bay CTO 2U Server
Chassis Part Number:CSE-829U
Motherboard Part Number:X10DRU-i+ rev 1.02B
Backplane Part Number: BPN-SAS3-826A-N4 rev 1.11
In Good Condition, Full Working Order
Tested
CTO - No CPU No Memory Included, Required In Order To Use
Includes:
- 1 xSupermicro SuperServer CSE-829U X10DRU-i+ 12x 3.5" SAS HDD Bay CTO 2U Server
Specifications:
- 2 x Heatsinks forIntel Xeon processor E5-2600 v4/ v3 family
- 1 x 12-Bay 3.5" SAS Backplane BPN-SAS3-826A-N4 rev 1.11 with 12 x 3.5" disk caddies and screws included
- MotherboardX10DRU-i+ rev 1.02B
- 2 x 1000W Power SuppliesPWS-1K02A-1R
- 1 xSupermicro AOC-2UR68-i4G 2U Ultra Riser with 4x Gigabit Ethernet RJ45 Ports,1x PCI-E 3.0 x8 (in x16), 1x PCI-E 3.0 x16, 1x PCI-E 3.0 x8 (internal)
- 1 x Supermicro 2U Left PCI-Express x8 & PCI-Express x16Riser Card RSC-R2UW-2E8E16rev 1.10
- 1 x Supermicro 2U Right PCI-Express x8 Riser Card RSC-R1UW-E8R rev 1.10
Manufacturer's Full Chassis Specification:
Motherboard
Super X10DRU-i+Processor/CacheCPU
- Intel® Xeon® processor E5-2600v4†/ v3 family (up to 160W TDP)*
- Dual Socket R3 (LGA 2011)
Cores / Cache
- Up to22 Cores†/ Up to55MB†Cache
System Bus
System MemoryMemory Capacity
- 24x 288-pin DDR4 DIMM slots
- Up to 3TB†ECC 3DS LRDIMM, 1.5TB ECC RDIMM/LRDIMM
Memory Type
- 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
- 2666/2400 ECC DDR4 NVDIMM
DIMM Sizes
- RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
- LRDIMM: 64GB, 32GB
- 3DS LRDIMM: 128GB
- NVDIMM: 16GB
Memory Voltage
Error Detection
- Corrects single-bit errors
On-Board DevicesChipset
SATA
- SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
Network Connectivity
- 4x GbE ports viaAOC-2UR68-i4G
- Intel® i350 Gigabit Ethernet Controller
- 1x Realtek RTL8211E PHY (dedicated IPMI)
Graphics
Input / OutputSATA
SAS
- 12x SAS3 ports support via optional Add-on Card
LAN
- 4x RJ45 Gigabit Ethernet LAN ports
- 1x RJ45 Dedicated IPMI LAN port
USB
- 5x USB 3.0 ports
(2 rear, 2 onboard header, 1 Type A)
Video
Serial Port / Header
DOM
- 2x SuperDOM(Disk on Module) ports
System BIOSBIOS Type
- 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
- Plug and Play (PnP)
- APM 1.2
- PCI 2.3
- ACPI 1.0 / 2.0 / 3.0 / 4.0
- USB Keyboard support
- SMBIOS 2.7.1
- UEFI 2.3.1
ManagementSoftware
- SuperDoctor® 5
- Intel® Node Manager 3.0
- Watch Dog
- NMI
- SUMandSSM
- Optional IPMI 1.5 / 2.0
Power Configurations
- ACPI Power Management
- Power-on mode for AC power recovery
ChassisForm Factor
Model
Height
Depth
Weight
- Net Weight: 36 lbs (16.4 kg)
- Gross Weight: 72 lbs (32.7 kg)
Available Colors
Front PanelButtons
- Power On/Off button
- System Reset button
LEDs
- Power status LED
- HDD activity LED
- 2x Network activity LEDs
- System information (overheat/UID) LED
Expansion SlotsPCI-Express
- 1x PCI-E 3.0 x16 slot (FH, 10.5" L)
- 7x PCI-E 3.0 x8 slots
(5x FH, 10.5" L, 1x LP, 1x Internal LP)
Drive BaysHot-swap
- 12x Hot-swap 3.5" Drive Bays:
10x SATA3 ports by default - Optional drive support: 12x SAS3
Backplane2U SAS/SATA backplaneSystem CoolingFans
- 4x 8cm heavy duty PWM fans
Power Supply1000W Redundant Power Supplies with PMBusTotal Output Power
- 800W: 100 – 127Vac
- 1000W: 200 – 240Vac
- 1000W: 200 – 240Vdc (for CCC only)
Dimension
(W x H x L)
Input
- 100-127Vac / 9.8 - 7A / 50-60Hz
- 200-240Vac / 7 - 5A / 50-60Hz
- 200-240Vdc / 7 - 5A (for CCC only)
+12V
- Max: 66.7A / Min: 0A (100-127Vac)
- Max: 83A / Min: 0A (200-240Vac)
- Max: 83A / Min: 0A (200-240Vdc)
12Vsb
Output Type
- 25 Pairs Gold Finger Connector
VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£570 excluding VAT
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
