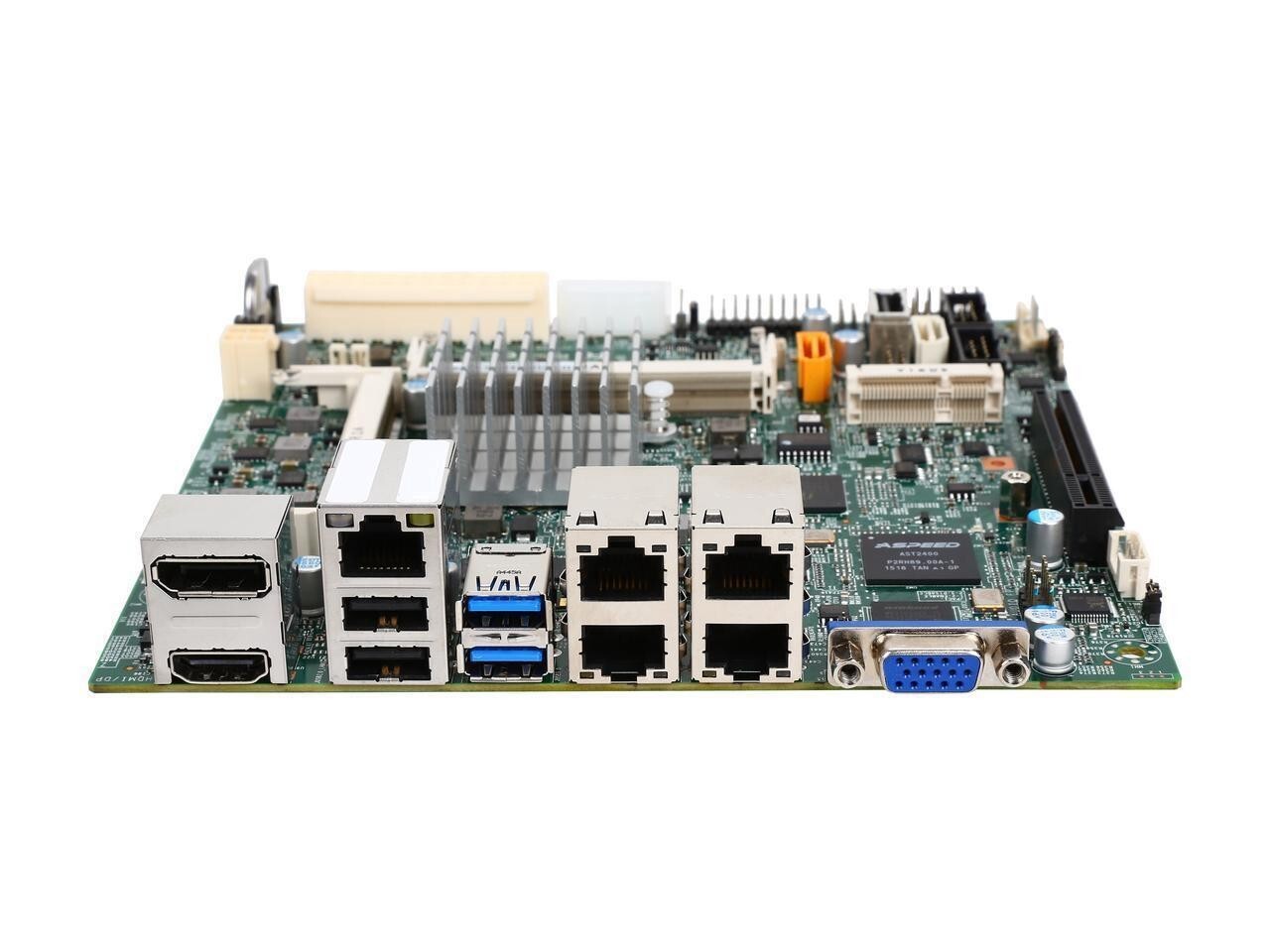

You are purchasing an new Supermicro X11SBA-LN4F Mini ITX Server Motherboard Socket FCBGA1170 Intel N3700 1600 / 1333 / 1066 MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs (MBD-X11SBA-LN4F) REV 1.02A. The Item comes in bulk packaging no retail box. Each purchase comes with 1 Mother Board SATA cable and the Motherboard back plate. Key Features - Intel® Pentium™ Processor N3710., Single Socket FCBGA1170 supported, CPU TDP support 6W
- Up to 8GB 1600MHz DDR3 Non-ECC SO-DIMM in 2 sockets
- 1 PCI-E 2.0 x1 (in x8),
1 Mini-PCIe (mSATA support) - Quad GbE LAN with Intel® i210-AT
- Supports 12V DC power input
- System-on-Chip
- 1 HDMI, 1 DP, Intel HD Graphics,
VGA port for BMC - 2 USB 3.0 ports (2 rear), 7 USB 2.0 (2 rear, 4 via header(s), 1 Type A)
- I/O: 1 SATA DOM, 2 COM, TPM 1.2 header, ALC 888S HD Audio
- IPMI 2.0 with dedicated Port and KVM
Form Factor: Mini-ITXDimension: 6.7" x 6.7" (17.02cm x 17.02cm)CPU: Intel® Pentium™ Processor N3710 Single Socket FCBGA-1170 supported, CPU TDP supports Up to 6W TDPCore: Up to 4 cores, 4 threads / 2MB CacheMemory Capacity: 2 DIMM slotsUp to 8GB Unbuffered non-ECC SODIMM,DDR3-1600MHzMax total memory: up to 8GB onlyMemory Type: 1600/1333/1066MHz non-ECC DDR3 SODIMM Unbuffered 204-pin gold-plated DIMMsDIMM Sizes: 2GB, 4GB, 8GBMemory Voltage: 1.35VBIOS Type: AMI UEFIBIOS Features: ACPI 5.0UEFI 2.3.1Plug and Play (PnP)SMBIOS 2.7.1DMI 2.3USB Keyboard supportRTC (Real Time Clock) Wakeup Management:Software SuperDoctor® 5, NMI, KVM with dedicated LAN, IPMI2.0, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM supportSystem Management Software SuperDoctor 5, IPMIView for Linux/WindowsPower Configurations Power-on mode for AC power recovery, ACPI Power Management  |
|
