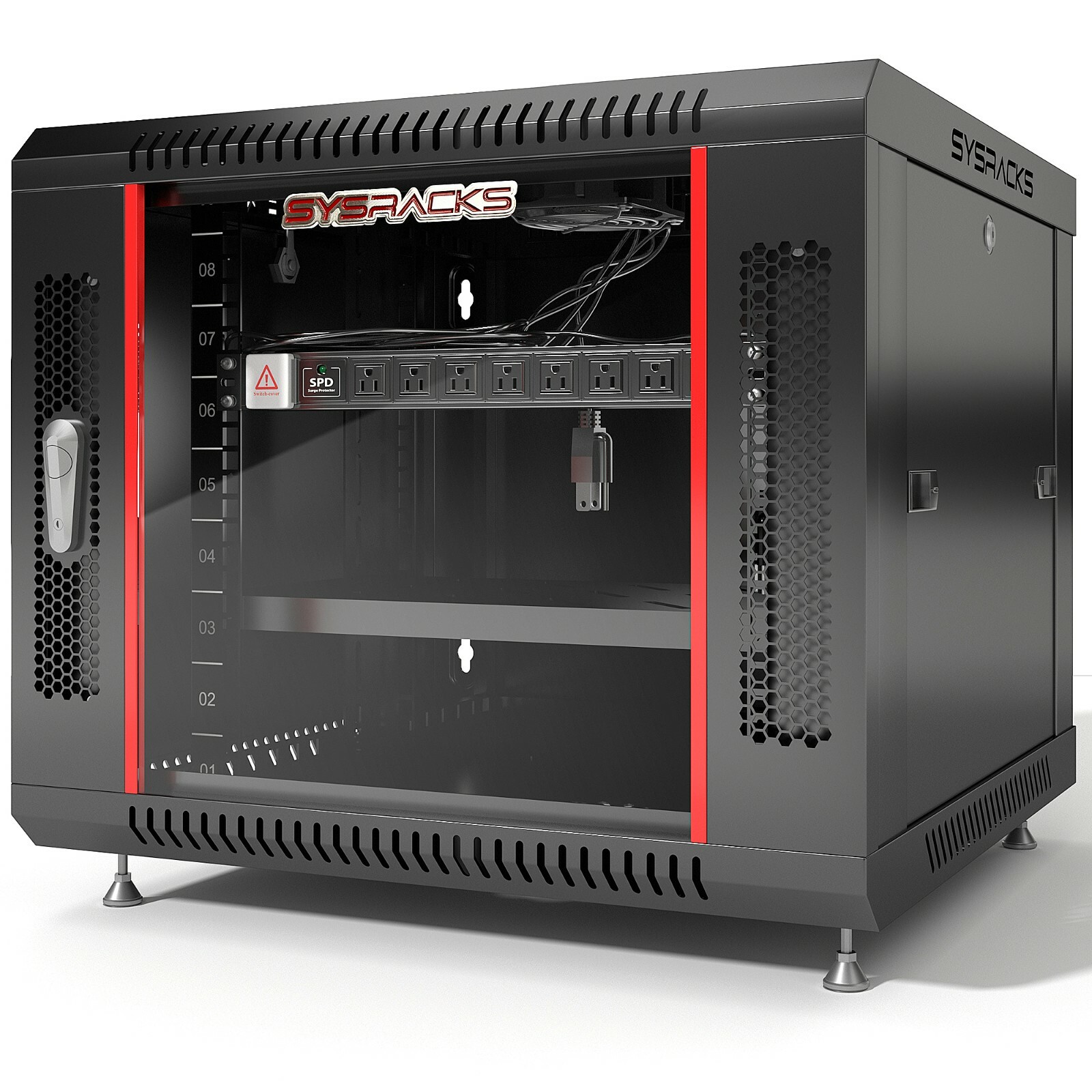

9U 18" Deep Wall Mount Data Server IT/AV Enclosure Cabinet Rack
Item Description
The modern design and technical parameters of a 9U server rackSRW Seriesis thebest solution to house 19"IT, A/V & Telecommunication equipment and build home and officeprojects, LAN and communication centers. The frame structure and smart technologies guaranties the stability, performance and security for you and your server equipment.
Designed for SOHO (Small Office/Home Ofice) environements.
Features
- Cooling fan
- 8-Way Power Bar
- Vented tray
- Standing adjustable feet
- Mounting hardware (Set of bolts and nuts -20 pcs)
- Glass front door in perforated metal frame
- Lockable front door, removable side panels
- Lockable latch handle
- U-marking mounting rails
Technical parameters
- Dimensions: 9U 24"X18"X20"
- Depth: 18” (450mm)
- Weight: 48 pounds
- Coating Powder paint
- Active Cooling Cooling fan pre-installed into the top
- Passive Ventilation Air Flow Circulation due to perforated front door
- Load capacity: Up to 133 pounds
- Color: Black
Design
- Glass front door and perforate frame give not only a modern look to the cabinet, but also, help to remove hot air from the cabinet and let air flow circulation provide cooling effect to the equipment
- Locking front door and latch handle give impression of being a HQ furniture but not a technical box, at the same time, facilitate and limit access to the equipment
Fixed vented shelf
- A fixed vented tray improves air flow circulation and helps to keep the temperature of the equipment in secure regime. Loading capacity up to 133 lbs
Cooling fan:
- Cooling fan is used to assist air flow circulation maintain the working temperature regime inside the cabinet. Optionally, another cooling fan can be installed at the bottom of the cabinet to pump cool air in. Capacity is 440m3/h.
Standing legs:
- Now, all server cabinets come with standing adjustable feet. You can anytime transform your cabinet from a wall mount to free standing unit. (!!! Do not exceed the recommended loading capacity!!!
Mounting hardware (M6 x 20pcs, tools):
- There is no need to get mounting hardware. Mounting tools, screwdriver, mounting key and a set of 20 pcs of nuts, clips/screws is already included in each cabinet.
Locking front and rear doors and removable back panels:
- SRW-series cabinets are designed to maximize security of the equipment. All locking front and rear doors, removable side panels limit access to unauthorized persons while allowing for authorized personnel to easy installation, maintain or upgrade the equipment. (set of 2 keys included)
Adjustable mounting rails with U-marking and square holes:
- Help to adapt the internal space to any accessories and devices regardless to brand, fitting the cabinet (from 3” to 21” depth). U-marking make installation easier and faster but, also, correctly determine the mounting area for the equipment
Original manufacturer warranty: 2 years
