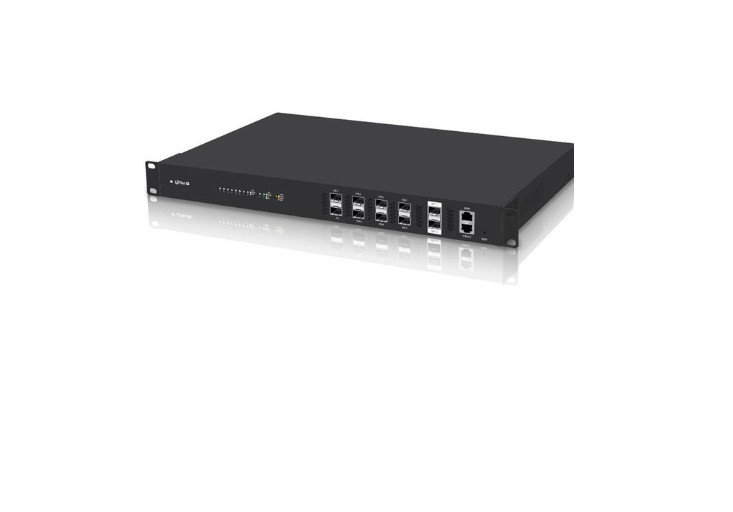

Ubiquiti UF-OLT UISP Fiber OLT 8Gigabit Passive Optical Network Ports 1G/10G SFP
Price: US $1945.00
PRODUCT SPECIFICATIONS

UISP-ready optical line terminal with (8) Gigabit optical network ports, (2) fiber uplinks, and Layer 2/3 switching capability.

UFiber OLT supports up to 128 ONU CPEs per GPON port with physical links of up to 20 km in distance. It also features SFP+ connectivity for uplinking. The UFiber OLT can be mounted in a 1U rack, mounted on a wall, or placed on a desktop. Management options include the Gigabit Ethernet port (out-of-band), RJ45 serial console port (CLI), and uplink (in-band) – configured via the UFiber UI orUISP.

Features:

  • 8 Gigabit Passive Optical Network Ports
  • Supports up to 1024 Clients (128 per PON Port)
  • Up to 2.488 Gbps TX and 1.244 Gbps RX
  • Two 1G/10G SFP+ Ethernet Ports
  • Flexible Layer 2/3 Management Features
  • Fast Ethernet port for management
  • Console serial port for management

Technical Description

Dimensions

  • 442.4 x 285.6 x 43.7mm (17.42 x 11.24 x 1.72\")

Weight

  • Without Mount Brackets: 4.40kg (9.7lbs)
  • With Mount Brackets: 4.495kg (9.1lbs)

Networking Interfaces:

  • (8) GPON OLT SFP
  • (2) 1G/10G SFP+

Concurrent Clients

  • 1024 Registered ONUs/ONTs (128 per GPON Port)

Management Interfaces

  • (1) Ethernet Out-of-Band Management
  • (1) Ethernet In-Band Management
  • (1) RJ45 Serial Console Port
  • (1) Bluetooth

GPON Speeds:

  • 2.488Gbps Upstream (TX)
  • 1.244Gbps Downstream (RX)

Operating Wavelengths

  • 1490nm TX
  • 1310nm RX

Normal Optical Power Range

  • TX (Class B+): 1.5 to 5dBm
  • RX: -8 to -28dBm

Range

  • Physical Reach: 20km
  • Logical Reach: 60km
  • Max. Differential Fiber Distance: 20km (B+) / 40km (C+)

Power Supply

  • (2) DC/DC or AC/DC PSU Module Bays
  • (1) 54V 150W DC/DC PSU Module Included

Max. Power Consumption

  • 40W (Excluding SFP modules)

Processor Specs

  • MIPS 1004kc 880MHz Dual-Core

Memory Information

  • 256MB DDR3, 256MB NAN

Operating Temperature

  • -10 to 45°C (14 to 113°F)

Operating Humidity

  • 10 to 90% non-condensing

Certifications

  • CE, FCC, IC

Product Includes:

  • (1) UFiber OLT
  • (2) Mounting Brackets
  • (8) Bracket Screws
  • (4) Mounting Screws
  • (4) Cage Nuts
  • (1) SC/UPC GPON SFP Transceiver (UF-GP-B+)
  • (1) Power Cord
  • (4) Rubber Feet
  • (1) Quick Start Guide
