Universal 1-lamp CCFL Inverter Board for LCD panels
Price: US $15.95
Universal 1-lamp CCFL Inverter Board for LCD panelsSingle Lamp CCFL Inverter with 3-wire harness for LCD repair and replacement. For ideal use with 15”-22” displays. Inverter board dimensions: 120mm x 23.5mmWire harness length: 330mmInput Working Voltage: 10-25 VdcOutput Voltage: 650~900VrmsOutput Current: 2.5~7mA Inverter 6 Pin Connector Assignment:1 – VIN: power supply (10-25V) – RED WIRE2 – VIN: power supply (10-25V)3 – ENA (enable, switch on/off) switch signal – YELLOW WIRE4 – ADJ (dimming function / brightness control)5 – GND (Ground wire)6 – GND (Ground wire) – BLACK WIRE Wire Harness:Red Wire= Input (pin #1)Yellow Wire = Switch on/off (pin #3)Black Wire = Ground (pin #6) Universal 1-lamp CCFL Inverter Board for LCD panels

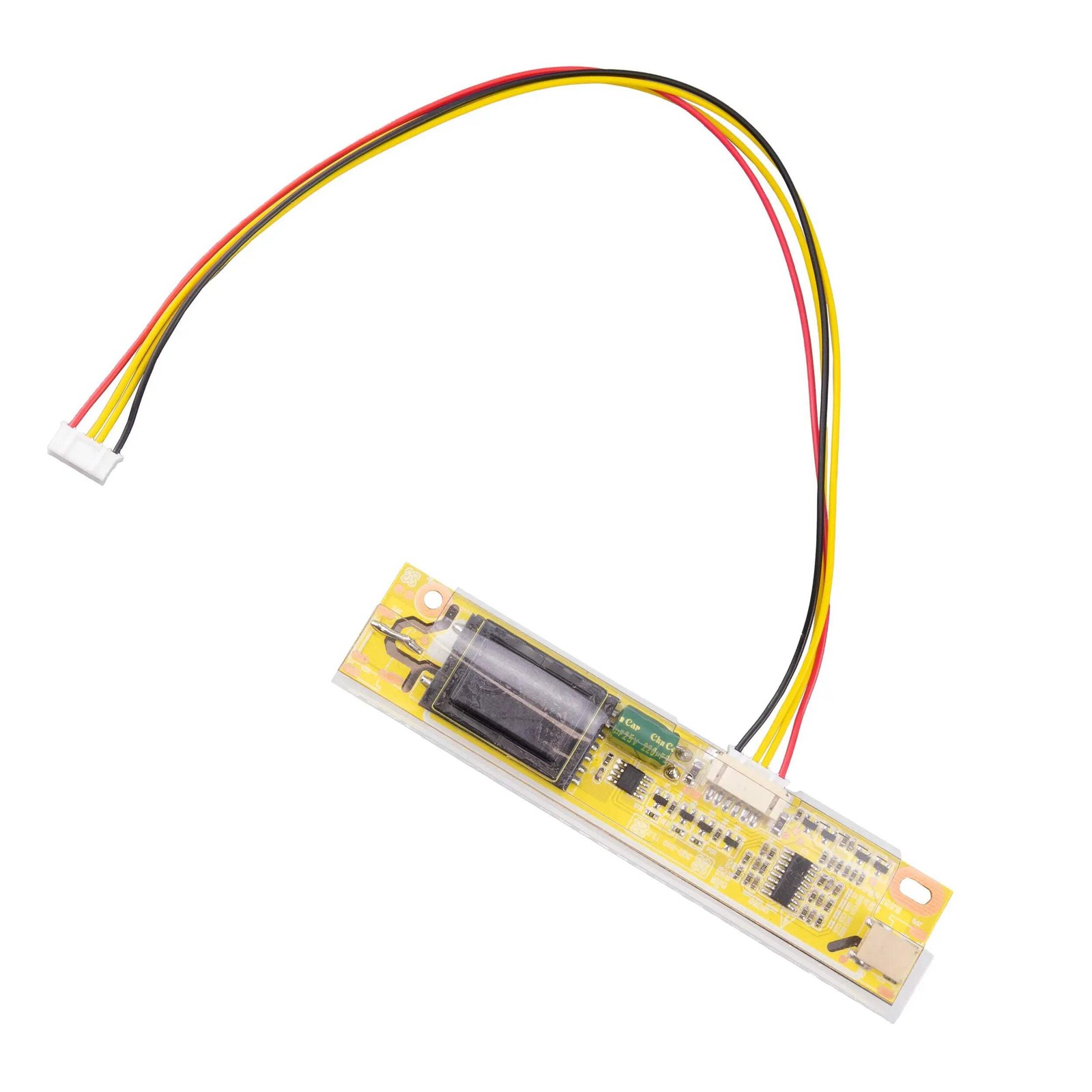

Single Lamp CCFL Inverter with 3-wire harness for LCD repair and replacement. For ideal use with 15”-22” displays.

Inverter board dimensions:  120mm x 23.5mm
Wire harness length:  330mm
Input Working Voltage: 10-25 Vdc
Output Voltage: 650~900Vrms
Output Current: 2.5~7mA

Inverter 6 Pin Connector Assignment:
1 – VIN: power supply (10-25V) – RED WIRE
2 – VIN: power supply (10-25V)
3 – ENA (enable, switch on/off) switch signal – YELLOW WIRE
4 – ADJ (dimming function / brightness control)
5 – GND (Ground wire)
6 – GND (Ground wire) – BLACK WIRE

Wire Harness:
Red Wire= Input (pin #1)
Yellow Wire = Switch on/off (pin #3)
Black Wire = Ground (pin #6)

× × × × × × × × ×
