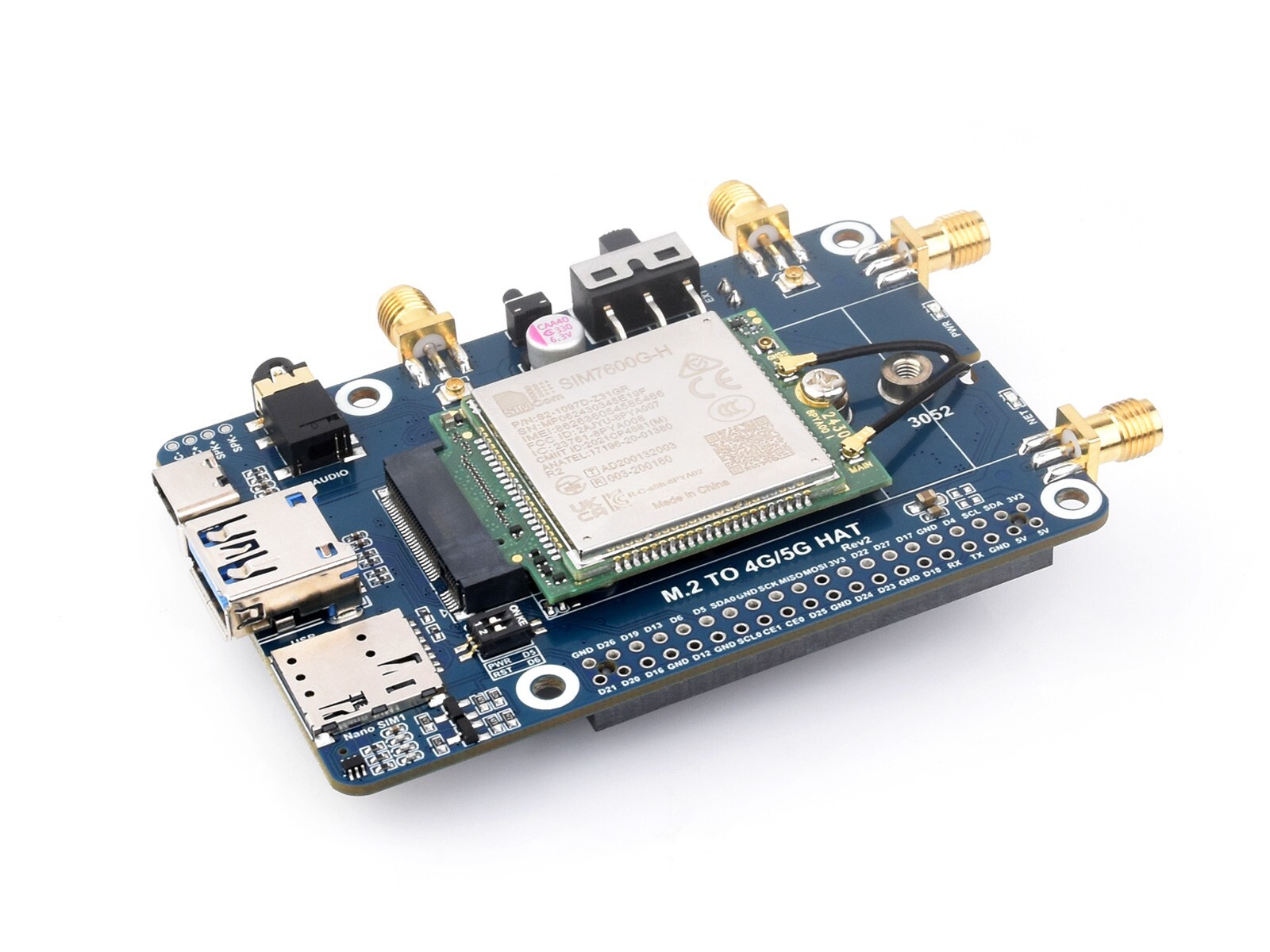

Prohibited by the module manufacturer SIMCOM, we\'re not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.SIM7600G-H M.2 4G HAT For Raspberry Pi, LTE CAT4 High Speed, Global Coverage Multi Band, 4G/3G/2G Compatible, GNSSSIM7600G-H M.2 4G HATFOR RASPBERRY PI
4G/3G/2G communication and GNSS positioning, global band
Features At A Glance
This is a 4G/3G/2G Raspberry Pi communication HAT with GNSS positioning and high speed LTE CAT4 global band connection. By connecting it to PC, Raspberry Pi or Jetson Nano host boards, it is easy to enable 4G high speed networking, cloud platform communication, phone call/SMS, and global GNSS positioning functions.
- Supports dial-up, phone call, SMS, TCP, UDP, MQTT, HTTP(S), FTP(S), and so on
- GNSS positioning: GPS, Beidou, Glonass, Galileo, QZSS, LBS base station
- USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 4G communication
- Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
- Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply
- Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
- Reserved 4x SMA to IPEX antenna interfaces, with pre-soldered 2x connectors for easily using antennas, allows changing the SMA antenna position
- Onboard audio jack and audio decoder, allows audio operation like making phone call
- High efficiency power supply circuit, up to 3A output current
Module SpecificationsFREQUENCY BANDLTE Cat-4LTE-FDD:B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
LTE-TDD:B34, B38, B39, B40, B413GUMTS/HSDPA/HSPA+:B1, B2, B4, B5, B6, B8, B192GGSM/GPRS/EDGE:850, 900, 1800, 1900 MHzGNSSSatellite systemsGPS, Beidou, GLONASS, GALILEO, QZSSReceiver type16-channelC/A CodeSensitivity-159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)Cold starts: -148 dBmTime-To-First-Fix (open air)Cold starts: <35sHot starts: <1sSMS AND AUDIOSMSSupported types: MT, MO, CB, Text, PDUStorage: USIM card and ME (default)Audio featureSupports echo cancellationSupports noise reductionGlobal Band 4G/3G/2G Support
LTE Cat-4: Up To 150Mbps (Downlink) / 50Mbps (Uplink)
3G (HSPA+): Up To 42Mbps (Downlink) / 5.76Mbps (Uplink)
2G (GPRS/EDGE): Up To 236.8Kbps (Downlink) / 236.8Kbps (Uplink)
Multi System Support, Easy To Use
Supports Windows 7/8/10/11, Ubuntu, Raspberry Pi OS, OpenWRT...
Just plug it into USB port, go through some simple configuration, the high speed 4G network connection will be ready to use
Connection Examples
For Windows PC Or Jetson Nano Series, Use A USB Cable
For Raspberry Pi 4B/3B+, Or CM4-IO-BASE-A/B, Use The Purpose-Made USB Adapter
connecting withRaspberry Pi 4B
connecting withRaspberry Pi 3B+
connecting withCM4 IO Base
Cloud Communication
Supported Communication Protocols: TCP, UDP, FTP, FTPS, HTTP, HTTPS...
GNSS Positioning
Supports GPS, Beidou, Glonass, Galileo, QZSS, And LBS Base Station Positioning
Phone Call & SMS Support
Allows Using AT Commands To Make Phone Call Or Send SMS
Standard Raspberry Pi 40PIN GPIO Header
Compatible With Raspberry Pi Series And Jetson Nano, Stackable Design For More HATs
* for reference only, please check the Package Content section for exact part list.High Speed Cooling Fan
Better Heat Dissipation For Both Raspberry Pi And The 4G Module
Standard M.2 B KEY Slot
Compatible With SIM7600X-M.2, SIM7906X-M.2, A7906X-M.2 Series Modules
SIM7600X-M.2
SIM7906X-M.2
A7906X-M.2
Outline DimensionsResources & The SIM7600 FACTORM.2DIMENSIONS42.0 × 31.4 × 3.8 (mm)FREQ.
BANDLTE-FDDB2, B4, B12B1, B2, B3, B4, B5, B7, B8, B28, B66B1, B3, B5, B7, B8, B20B2, B4, B5, B12, B13, B14, B25, B26, B66, B71B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66LTE-TDDB40B38, B40, B41B41B34, B38, B39, B40, B41WCDMAB2, B5B1, B2, B5, B8B1, B5, B8B1, B2, B4, B5, B6, B8, B19GSM850, 900, 1800, 1900MHz900, 1800MHz850, 900, 1800, 1900MHzGNSSGPS, Beidou, GLONASS, GALILEO, QZSSAPPLICABLE REGIONSNorth America (AT&T)Australia, New Zealand, Taiwan, Latin AmericaEurope, the Middle East, Africa, South Korea, ThailandNorth America (all providers)Global
PACKAGE CONTENT
Weight:0.215 kg
- M.2 TO 4G/5G HAT x1
- SIM7600G-H-M.2 x1
- Antenna 2pcs x1
- IPEX adapter cable 2pcs x1
- 2*20PIN pin header x1
- Passive GPS antenna x1
- Dual plug USB3.0 cable x1
- USB3.0 adapter x1
- USB2.0 adapter x1
- SMA protective cap 2pcs x1
- Screws pack x1
