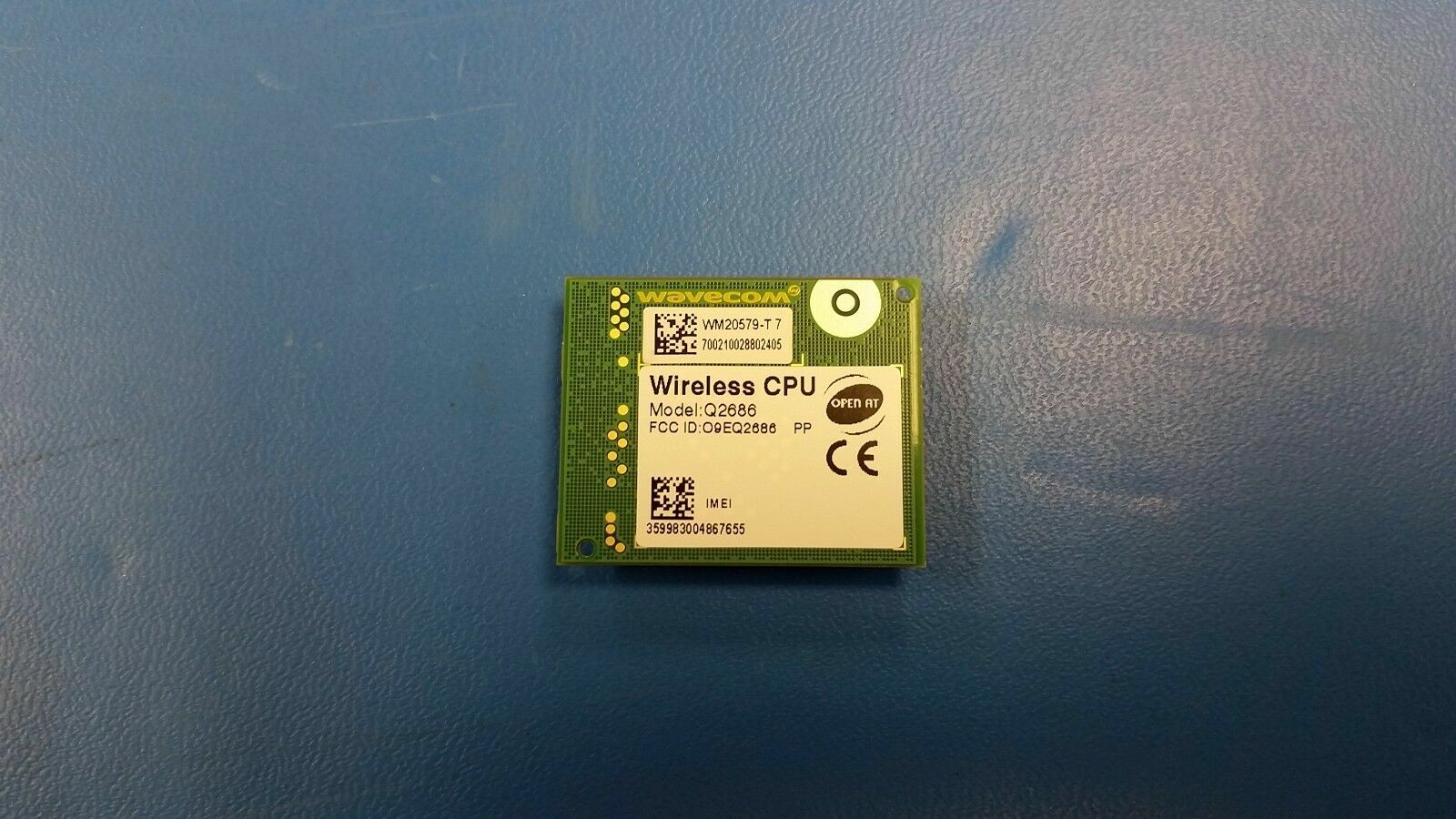

THIS LISTING IS FOR (1 PC) OF Q2686 BY WAVECOM GSM-GPRS-EDGE Embedded Wireless Modules ROHS
The Wavecom Q2686 GSM/GPRS/EDGE module is equipped with up to 44 GPIOs and is especially suited to applications which require a high number of connections. The Open AT® OS runs on an ARM9 core on the module, providing applications with up to 87 MIPS (using VariSpeed). The Q2686 features a market-leading range of peripheral interfaces, including companion Bluetooth® and GPS.
Key Features
- ARM9, 32 bit, 104 MHz running Open AT® RTOS as standard
- Upto 44 GPIO including 2 SPI, I2C, 2 UART
- Quad band GSM & GPRS: 850/900/1800/1900 MHz
- Advanced audio features
- 2 analogue channels, 1 PCM
- Compact size, just 40 x 32.2 x 4mm
- Intelligent Device Services (IDS)
- inSIM (embedded SIM) option
- Footprint compatibility with entire Q Series of intelligent embedded modules
- Looking for 3G? Easy upgradeability to 3G with Q26 Extreme
Frequency Range (MHz) Quad band GSM: 850/900/1800/1900 MHzOperational Bands (MHz) GSM 850GSM 900GSM 1800GSM 1900Core processor ARM946/DSP, 32 bit, 26-104 MHzMemory Internal 64Mb Flash and 32Mb PSRAM Digital Inputs/Outputs Up to 44 GPIOs, 2 SPI, 1 I2C, 5x5 keyboardCommunications Interfaces 2 UART, USB 2.0, 1 16 bit parallel portAnalogue Interfaces 2 ADC, 1 DACAudio Interfaces 2 speakers and 2 microphones, DTMF, PCM audioCellular Radio Quad band GSM: 850/900/1800/1900 MHzCellular Data GSM standard SMS, Fax, CSD, GPRS class 10Cellular Voice Quad codec (FR/HR/EFR/AMR)RF Connector Solder Pad UFL SocketSystem/IO Connector Panasonic 100-pin connectorPower Supply 3.2V - 4.8VCurrent Consumption 17 uA Alarm Mode 1.7 mA - 40 mA Idle Mode 400 mA GPRS Class10Type Approval PTCRB GCF FCC CE RoHSEnvironmental -20°C / +55°C Class A -30°C / +85°C Class B -30°C / +85°C StorageDimensions/Size L 40 x W 32.2 x H 4 mm
