[3D Printer Universe] BLTouch Smart Auto Bed Leveling Sensor w/ Extension Wire For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

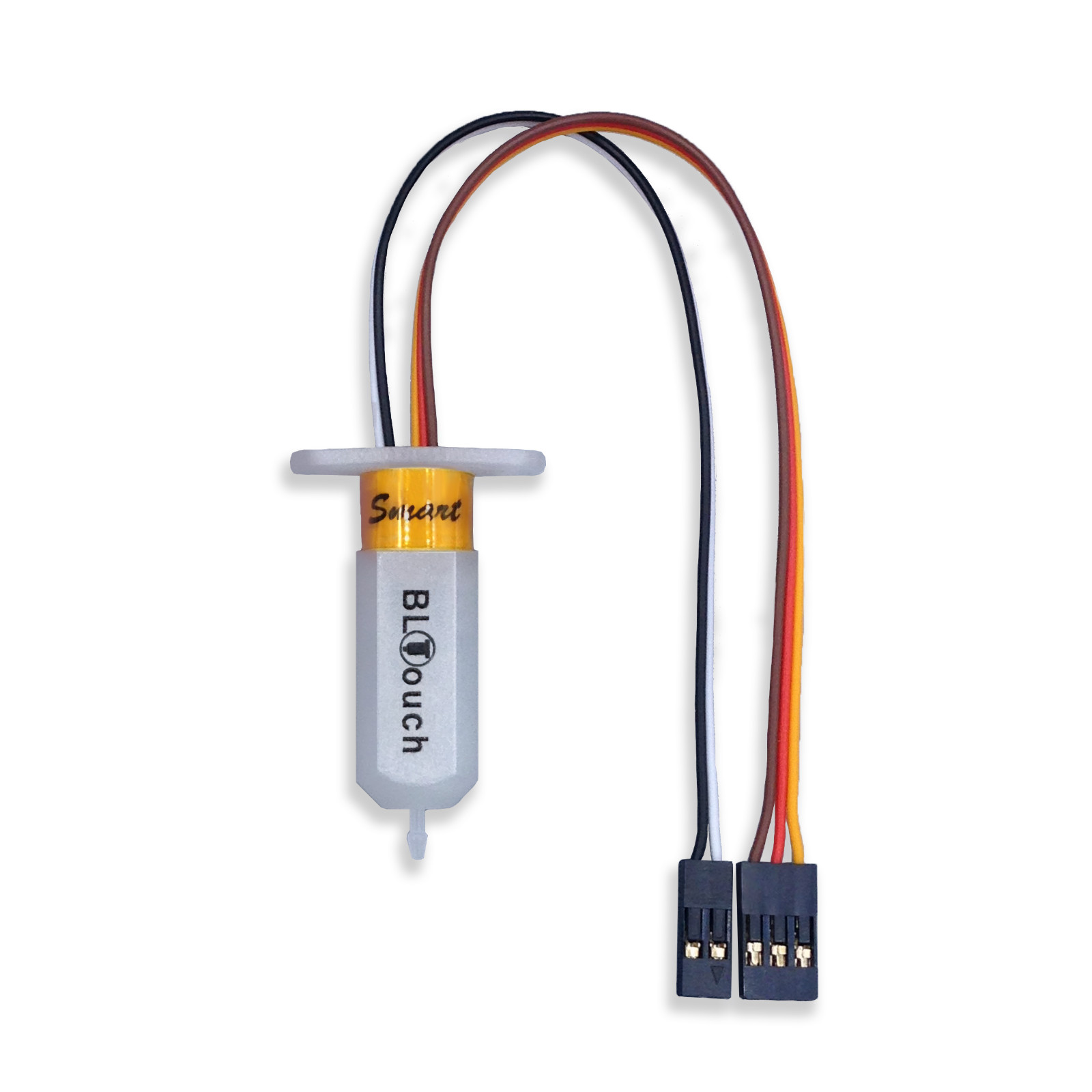

[3D Printer Universe] BLTouch Smart Auto Bed Leveling Sensor w/ Extension Wire

Price: US $30.00

※Please beware ofcounterfeit BLTouches. We are only Certified reseller for the US.

It has recently come to our attention that there are BLTouch copies now on the market.

The genuine BLTouch is a very precisely tuned device and we take great pride in its value and quality.

These copies are not affiliated with ANTCLABS and ANTCLABS will not support these copies.

BLTouch (Auto bed leveling sensor for 3D printers) isonly made by ANTCLABS(A&T) in Korea.

BLTouch-Smart v3.1 : Auto Leveling Sensor for 3D Printers

With BLTouch, your Open-source 3D Printercan be alsoa Masterpiece.

BLTouch is an auto leveling touch sensor for 3D Printers based on open-source.

It could work with any kinds of bed materials, such as glasses, woods, metals, and so on.

BLTouch Setting class="0" style="font-size: 14pt; widows: 1; background-image: initial; background-attachment: initial; background-color: rgb(255, 255, 255); background-size: initial; background-origin: initial; background-clip: initial; background-position: initial; background-repeat: initial;">BLTouch uses the same servo signal which used in previous servo line.

■Solenoid Push-pin Up➡servo signal 90Degree(ex : M280 P0 S90 ) ←PWM

■Solenoid Push-pin Down➡servo signal 10Degree(ex : M280 P0 S10 )

■Manual Self-test➡servo signal 120Degree(ex : M280 P0 S120)

■Alarm Release➡servo signal 160Degree(ex :M280 P0 S160)

■ZminTestMode➡servo signal 60Degree(ex : M280 P0 S60 )

※BLTouch can be operated in the following condition.

- One I/O(PWM or Software PWM)for control

- One I/O for Zmin

- GND and +5V power

※Soldering andFirmware updating might be needed on a case.

Wiring :

3Pin: Brown(- , GND) Red(+5V) Orange(control signal)
