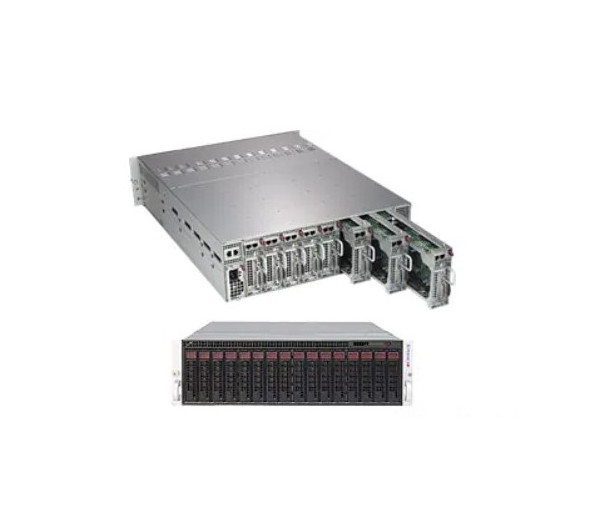

Supermicro SYS-5039MD8-H8TNR Barebone 1 CPU, 8-Node, 3U Virtual Server System
• Cloud Computing
• Web Cache
• Web Hosting, VM
• Social Networking, CDN
1. Intel® Xeon® Processor D-2141I, 8-Cores, 16 Threads
2. 2x 3.5" SATA3 by default; 2x 2.5" hybrid SATA3/NVMe w/ Optional kits
3. Up to 512GB ECC LRDIMM, Up to 256GB ECC RDIMM, up to DDR4-2133MHz; in 4 DIMM slots
4. 2 GbE LAN ports via Intel i350
5. 1 PCI-E 3.0 x16 (low-profile), 1 Micro-LP, and 2 M.2
6. 2 USB 2.0, 1 VGA, 1 COM port, (with KVM dongle)
7. 4 heavy duty hot-swap 8cm fans with optimal cooling zone (per system)
8. 1600W Redundant power supplies Titanium Level Certified (per system)
Barebone 3U Rackmount SuperServer, Per Node: Single Intel Xeon D-2141I CPU. Up to 512GB DDR4 memory in 4 DIMM slots. System on Chip. 2x RJ-45 Ports, 1x PCI-E, 1x Micro-LP, 2x M.2, 2x 3.5in SATA3 (6Gbps) drive bays
Processor/Cache (per Node)CPUSocket FCBGA1667Intel® Xeon® Processor D-2141ICPU TDP support 65WCores / Cache8-Cores, 16 ThreadsSystem Memory (per node)Memory Capacity4x 288-pin DDR4 DIMM slotsUp to 512 GB ECC LRDIMMUp to 256 GB ECC RDIMMMemory Type2133MHz ECC DDR4 LRDIMM and RDIMMDIMM Sizes32GB, 16GB, 8GBMemory Voltage1.2 VError DetectionCorrects single-bit errorsDetects double-bit errors (using ECC memory)Network Devices (per node)Micro-LP NICDual RJ-45 connectorsMicroLP Adapter Matrix (Networking options)Intel® i350 GbE LAN controllerOn-Board Devices (per node)ChipsetSystem on Chip (SoC)SATASATA3 (6Gbps) via SoCIPMISupport for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM over LAN supportASPEED AST2500 BMCGraphicsASPEED AST2500 Graphics (BMC with Graphic controller)Input / Output (per node)SATA2 SATA3 (6Gbps) portsLAN2 RJ45 Gigabit Ethernet LAN portsKVM1 VGA, 1 COM and 2 USB 2.0 (with KVM dongle)System BIOSBIOS Type128Mb SPI Flash EEPROM with AMI BIOSBIOS FeaturesUSB Keyboard supportDMI 2.3SMBIOS 2.3ACPI 1.0 / 2.0ManagementSoftwareWatchdogKVM with dedicated LANSuperDoctor® 5Intel® Node ManagerIPMI 2.0SSM , SPM , SUMRear Window (each node)SwitchPower / UIDChassisForm and WeightHeight5.2" (132 mm)Width15.26" (387 mm)Depth23" (585 mm)Package11.65" (H) x 26.26" (W) x 34" (D)WeightNet Weight: 62.2 lbs (28.21 kg)Gross Weight: 88 lbs (39.92 kg)ColorBlackFront PanelButtonsPower On/Off buttonLEDsPower LEDNode status LEDExpansion Slots (per node)PCI-Express1 PCI-E 3.0 x16 (Low-profile) slot1 Micro-LP PCI-E 3.0 x8 slotM.2M.2 Interface: 2 PCI-E 3.0 x4M.2 Form Factor: 2280/22110M.2 Key: M-KeyDrive Bays (per node)InternalEnterprise SATA HDD only recommended2x 3.5" SATA3 (6Gbps) HDDs per node (or 2x 2.5" Hybrid SATA3/NVMe with optional kits); up to 16 HDDs totalSystem CoolingFans4 Hot-swap 8cm cooling fans fan speed controlPower Supply (76mm Width)Power Supply (76mm Width)1600W 1U Redundant Power Supplies with PMBusTotal Output Power800W: 100 – 140Vac1600W: 180 – 240VacDimension (W x H x L)76 x 40.4 x 336 mmInput100-140Vac / 10-7A / 50-60Hz180-240Vac / 11-8A / 50-60Hz+12VMax: 67A / Min: 0A (100-140Vac)Max: 133A / Min: 0A (180-240Vac)+5VsbMax: 1A / Min: 0AOutput Type27 Pairs Gold Finger ConnectorCertificationTitanium LevelPC Health MonitoringCPUMonitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.5 Phase-switching voltage regulator with auto-sense from 0.8375V-1.60VFANCooling zoneTemperatureMonitoring for CPU and chassis environmentOperating Environment / ComplianceRoHSRoHS CompliantEnvironmental Spec.Operating Temperature: 10°C to 35°C (50°F to 95°F)Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)
