CRS36-27R
360mm Lead-Free Copper Water Cooling Radiator
84.17 dm² of Cooling Power — Full-Tower, High-TDP, No in84.17 dm²
Cooling Area710g
1.57 lbs3x120mm
Triple Fan SupportG1/4 x2
Threaded PortsKey Features📐84.17 dm² Massive Cooling Area — Handles 500W+
Triple the surface area of a 120mm rad. Engineered for overclocked i9/Ryzen 9 CPUs + RTX 4090/5090 GPUs in a single loop. This is the radiator you choose when you refuse to thermal-throttle.
♻Lead-Free Copper — Medical and Industrial Grade
Pure red copper high-density fins with blackening treatment. Brass upper and lower chambers with built-in flow division. Zero lead, RoHS certified — suitable for the most demanding applications.
💧12 Waterways — Full-Length Even Cooling
12 precision-channeled waterways span the entire 393mm length. The flow division system ensures coolant reaches every millimeter of fin surface — no hot spots.
🔩One-Piece All-Copper Welded Construction
High-temperature integrated welding creates a single solid copper structure. No gaskets to fail, no seals to degrade — pure metal-to-metal integrity.
🎮External Radiator Ready — Mo-Ra Alternative
At only 710g and 27mm thick, this is the lightest 360mm copper rad in its class. Perfect for external radiator stands, wall mounts, or under-desk setups at a fraction of boutique prices.

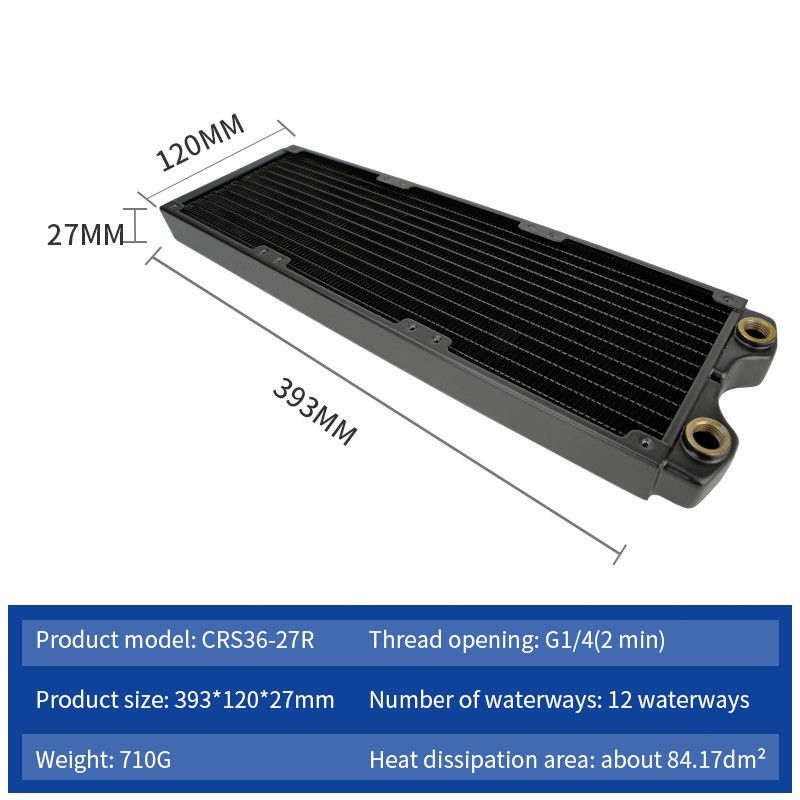

Technical (LxWxH)393 x 120 x 27 mm (15.47 x 4.72 x 1.06 in)Weight710 g (1.57 lbs)MaterialRed copper fins + brass chambers + steel frameConnectorG1/4 thread x 2 portsWaterways12 channelsHeat Dissipation Area~84.17 dm²Fan Support3 x 120mm fansMax Pressure0.2 MPa (factory test)Color / FinishBlack / baked paintCertificationRoHS — Lead-FreeWhat's in the Box
- 1x OCOCOO CRS36-27R Copper Water Cooling Radiator
- 1x M3 Mounting Screw Set for 120mm fans (12 pcs push / 6 pcs single-side)
Please Note:Fittings, fans, tubing, and coolant are NOT included.⚠ Important Installation WarningScrew Length Limit:Screws mustNOTprotrude more than5mmpast the fan mounting surface. Exceeding this willpuncture the copper tubes— NOT covered by warranty. For push-pull, use M3 x 30mm screws max.Complete Your Loop — OCOCOO CRS SeriesModelSizeFansCooling AreaBest ForCRS12-27R120mm1x120mm27.08 dm²SFF / Single ComponentCRS24-27R240mm2x120mm55.60 dm²Mid-Tower / CPU+GPUCRS36-27R360mm3x120mm84.17 dm²Full-Tower / High-TDP
Dispatch TimeWithin 48 hours after payment clearedReturns30-day return accepted. Buyer pays return shipping.
