Integrated Board A2SDi-2C-HLN4F Key Features
• Compact Cloud Server
• Edge Computing Device
• 7 Years life cycle

1. Intel® Atom processor C3338, SoC,
FCBGA 1310, CPU TDP support 9W 2. 4 Hot-swap 3.5" SATA drive bays,
2 internal 2.5" drive bays, 1 slim
DVD-ROM drive bay (shared with
1 internal 2.5") 3. 1 PCI-E 3.0 x2 (in x4) open ended slot 4. Up to 64GB RDIMM or 32GB ECC/
non-ECC UDIMM, DDR4-1866MHz in
2 DIMM slots 5. Quad 1GbE LAN ports via Intel C3000
SoC; IPMI 2.0, KVM with dedicated LAN 6. 1 VGA, 1 Aspeed AST2400 BMC 7. 1 USB 3.0 (1 Type A), 4 USB 2.0
(2 rear, 2 via header) 8. 1x 12cm rear exhaust fan 9. 250W Flex ATX Multi-output Bronze
Power Supply

Drivers & Utilities BIOS IPMI Tested Memory
Tested M.2 List Manuals Drive Options

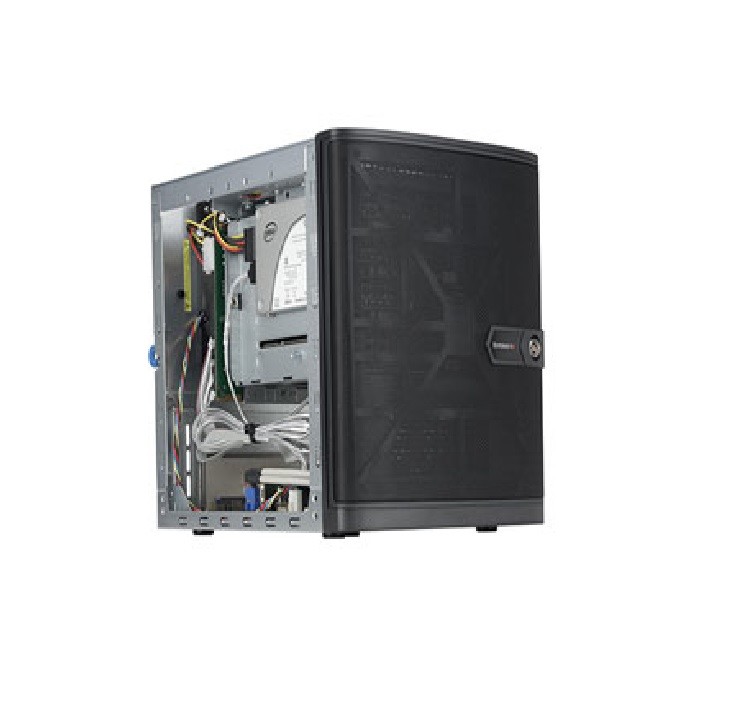

Product SKUs SYS-5029A-2TN4

• SuperServer 5029A-2TN4 (Black)

Motherboard
Super A2SDi-2C-HLN4F Processor/Cache CPU

• Intel® Atom® Processor C3338
• FCBGA 1310
• CPU TDP support 9W
• System-on-Chip

System Memory Memory Capacity

• Up to 64GB Register DIMM RDIMM and DDR4-1866MHz
• Up to 32GB Unbuffered ECC/non-ECC UDIMM, DDR4-1866MHz, in 2 DIMM slots

Memory Type

• 2400/2133/1866/1600MHz DDR4 RDIMM and ECC/Non-ECC UDIMM (Operating speed up to 1866MHz)

DIMM Sizes

• 32GB (RDIMM only), 16GB, 8GB, 4GB

Memory Voltage

• 1.2 V

On-Board Devices SATA

• SoC controller for 6 SATA3 (6Gbps) ports

Network Controllers

• Quad 1GbE LAN with Intel C3000 SoC
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Video

• Aspeed AST2400 BMC

Input / Output SATA

• 6 SATA3 (6Gbps) ports

LAN

• 4 RJ45 Gigabit Ethernet LAN ports
• 1 RJ45 Dedicated IPMI LAN port

USB

• 1 USB 3.0 (Type A)
• 4 USB 2.0 (2 front, 2 rear)

COM Port

• 1 COM port (1 header)

Video

• 1 VGA

TPM

• 1 TPM Header

Management Software

• SuperDoctor® 5
• Watch Dog

Power Configurations

• ACPI Power Management
• ATX Power connector
• Control of power-on for recovery from AC power loss
• CPU thermal trip support for processor protection

Chassis Form Factor

• Mini Tower

Model

• CSE-721TQ-250B

Dimensions and Weight Height

• 9.45" (240mm) / 13.78" (350mm) pkg.

Width

• 8.27" (210mm) / 12.4" (315mm) pkg.

Depth

• 11" (279mm) / 16.14" (410mm) pkg.

Weight

• Net Weight: 15 lbs (6.8 kg)

Available Colors

• Black

Front Panel Buttons

• Power On/Off button
• System Reset button

LEDs

• Power LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat LED

Expansion Slots PCI-E

• 1 PCI-E 3.0 x2 (in x4) open ended slot

Drive Bays HDD

• 4 Hot-swap 3.5" drive bays
• 2 Internal 2.5" fixed drive bays

Peripheral

• 1 slim DVD-ROM drive bay (shared with 1 internal 2.5" fixed drive bay)

System Cooling Fan

• 1x 12cm rear exhaust fan

Power Supply 250W Flex ATX Multi-output Bronze Power Supply AC Voltage

• 100 - 240V, 50 - 60Hz, 5Amp

+5V

• Max:14 Amp; Min:0.5 Amp

+12V

• Max:18 Amp; Min:1 Amp @100V-240V

-12V

• Max: 3 Amp; Min: 0 Amp

+3.3V

• Max: 12 Amp Min: 0.3Amp

5VSB

• Max: 2.5 Amp Min: 0 Amp

Certification Bronze Certified System BIOS BIOS Type

• AMI UEFI BIOS

BIOS Features

• Plug and Play (PnP)
• DMI 2.3
• ACPI 5.0
• USB Keyboard support
• SMBIOS 2.7.1
• UEFI

Operating Environment / Compliance RoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
  0°C to 40°C (32°F to 104°F)
• Non-operating Temperature:
  -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)

See Parts List Parts List - (Items Included)
Part Number
Qty
Description
Motherboard / Chassis MBD-A2SDi-2C-HLN4F
CSE-721TQ-250B 1
1 Super A2SDi-2C-HLN4F Motherboard
Mini Tower Chassis Backplane CSE-SAS-733TQ 1 4x3.5\" SAS2/SATA3 backplane w/SES-II Cable 1 CBL-SAST-0616 1 MINI SAS HD-4 SATA,6G,INT,50CM,50CM SB,30AWG Parts MCP-260-00084-0N 1 Standard I/O Shield for A1SRM-LN7F with EMI Gasket,RoHS/REACH Power Supply PWS-251-1H 1 1U 250W Flex ATX Multi-output Bronze Power Supply
