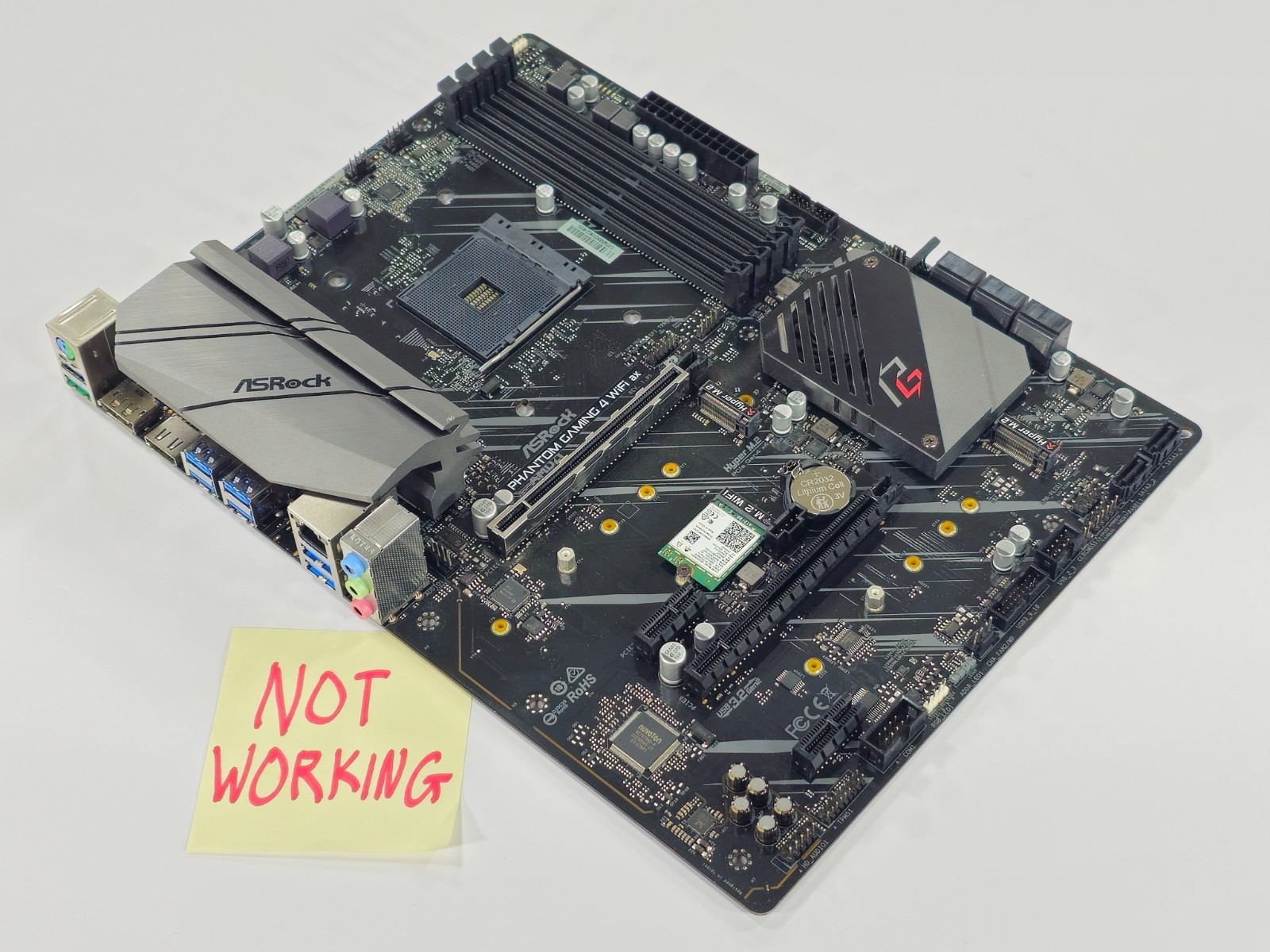

For sale is my ASRock X570 PHANTOM GAMING 4 WiFi ax motherboard.It will boot up and run Windows, but it has many problems.None of the SATA ports work, the WiFi M.2 slot does not work, and certain USB ports don't work. It's suspected that part of the X570 chipset is dead. I was able to boot up with an M.2 SSD installed in the top slot and the top PCI-E slot does work. I did not exhaustively test this motherboard, so certain other slots or connections might not work. BIOS has updated to the latest as of August 2026.It does not come with I/O shield, M.2 screws, or WIFI antenna. It is also missing it's PCI-E slot retention clips, and CPU backplate + mounting brackets. Does not come with retail box or any other accessories not pictured.
I may have some spare accessory parts available, such as CPU backplates and brackets, CMOS batteries, I/O shields, Wi-Fi antennas, M.2 screws and studs, and PCI-E slot retention clips. If available, these can be added to a motherboard purchase as needed for an additional fee. I don’t offer these items on their own, and quantities are limited to what makes sense for the motherboard(s) being purchased. If interested, send an message to ask about availability and pricing.
This motherboard was shipped as part of a prebuilt computer at some point, so any damage or symptoms may be related to damage during shipping. It was also in storage for a long period of time, so the CMOS battery may be dead if there is a battery still installed, and there may be dust, scratches, dents, bent or broken pins, or other physical damage not explicitly described. You will receive the exact motherboard that is pictured, so make sure to check all of the photos closely for actual physical condition.
Your purchase comes with everything pictured. You are only buying what is pictured, and nothing else. If a cable or something else is not pictured, it is not included!SHIPPING AND PURCHASE TERMSIdo combined shipping discounts! Multiple quantity listings already have automatic shipping discounts included, but multiple items from different listings do not. If you want to purchase from multiple listings from me and you need a shipping adjustment, please contact me and an adjustment will be made after purchase. Shipping discounts on additional items beyond the first item vary, but expect modest to significant savings depending on factors like size, weight, and distance for the package(s). Multiple listing combined shipping discounts are not automatic and must be requested.
Due to increasing amounts of fraudulent buyers using freight forwarders, buyers suspected to be using a freight forwarder will be scrutinized for fraudulent activity, and will require an admission in messages that a freight forwarder is being used for that order. I reserve the right to cancel and refund orders using freight forwarders in order to protect myself from potential fraud.Item serial number will be recorded if present.Signature confirmation will be required on all sales of $750 or more.International buyers READ THIS: International shipping for most countries will be handled by international shipping services. Otherwise it will be shipped with an appropriate USPS, UPS, or FedEx service. Keep in mind, I cannot change customs value of the item and I cannot mark it as gift. Import duties, taxes, and charges aren't included in the item price or postage cost for items not shipped with international shipping. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to offerding or buying.___
Learn more about theASRock X570 PHANTOM GAMING 4 WIFI AXModelBrandASRockModelX570 PHANTOM GAMING 4 WIFI AXSupported CPUCPU Socket TypeAM4CPU TypeSupports AMD AM4 socket Ryzen 2000 and 3000 series processorsChipsetsChipsetAMD X570MemoryNumber of Memory Slots4x288pin (DDR4)Memory StandardAMD Ryzen series CPUs (Matisse) support DDR4 4066+(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory*
AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory*
AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory** For Ryzen Series CPUs (Picasso), ECC is only supported with PRO CPUs.
* Please refer to Memory Support List on ASRock's website for more information.Maximum Memory Supported128GB
* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.Channel SupportedDual ChannelExpansion SlotsPCI Express 4.0 x16AMD Ryzen series CPUs (Matisse)
- 2 x PCI Express 4.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))*
AMD Ryzen series CPUs (Pinnacle Ridge)
- 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))*
AMD Ryzen series CPUs (Picasso)
- 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x8 (PCIE1); dual at x8 (PCIE1) / x4 (PCIE3))** Supports NVMe SSD as boot disksPCI Express x12 x PCI Express 4.0 x1 SlotsOther Slots1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
15µ Gold Contact in VGA PCIe Slot (PCIE1)Storage DevicesSerial ATA (SATA)8 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot PlugM.21 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M.2 PCI Express module up to Gen4 x4 (64Gb/s) (with Matisse) or Gen3 x4 (32Gb/s) (with Pinnacle Ridge and Picasso)*
1 x Hyper M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen4 x4 (64Gb/s) (with Matisse) or Gen3 x4 (32Gb/s) (with Pinnacle Ridge and Picasso)** Supports NVMe SSD as boot disks
* Supports ASRock U.2 KitSATA RAID0/1/10Onboard VideoOnboard Video ChipsetIntegrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
DirectX 12, Pixel Shader 5.0
Shared memory default 2GB. Max Shared memory supports up to 16GB.**
Dual graphics output: support HDMI and DisplayPort 1.2 ports by independent display controllers
Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required)
Supports HDR (High Dynamic Range) with HDMI 2.0
Supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.2 Ports
Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 Ports
Supports Microsoft PlayReady* Actual support may vary by CPU
** The Max shared memory 16GB requires 32GB system memory installedOnboard AudioAudio ChipsetRealtek ALC1200Audio Channels7.1 ChannelsOnboard LANLAN ChipsetIntel i211ATMax LAN Speed1GbpsWireless LANIntel 802.11 ax Wi-Fi Module
Supports IEEE 802.11 a/b/g/n/ax
Supports Dual-Band (2.4/5 GHz)
Supports high speed wireless connections up to 2.4 Gbps
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
Supports MU-MIMOBluetoothSupports Bluetooth 5.0 + High speed class IIRear Panel PortsBack I/O Ports3 x Antenna Ports (on I/O Panel Shield)
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.2
2 x USB 3.2 Gen2 Type-A Ports (10Gb/s) (Supports ESD Protection)
6 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / MicrophoneInternal I/O ConnectorsOnboard USB1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)Other Connectors1 x COM Port Header
1 x SPI TPM Header
1 x Power LED and Speaker Header
2 x RGB LED Headers*
1 x Addressable LED Header**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
1 x Front Panel Audio Connector
1 x AMD LED Fan USB Header
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 3 AIC Card R2.0 only)* Support in total up to 12V/3A, 36W LED Strip.
** Supports in total up to 5V/3A, 15W LED Strip.
*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
***** CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.Physical SpecForm FactorATXLED LightingRGBDimensions (W x L)12.0" x 9.0"Power Pin1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power ConnectorSoftware FeatureWindows 11Supported___
