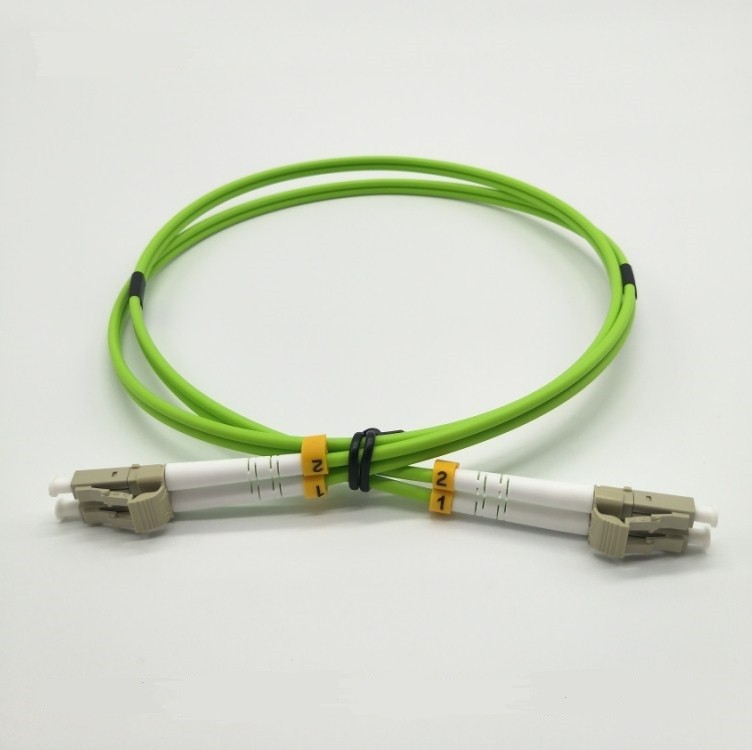

Fiber Optic Patch Cord Duplex Multimode OM5 LSZH Fiber Cable LC/UPC Connector Optical Fiber LC Multimode OM5 JumperDescription:
Note: If you need thecustomized connector and customized length, pls contact with me.Products DescriptionOM5 Multimode Wideband 2.0mm LSZH LC/UPC to LC/UPC Fiber Optic Patch CableOM5 wideband multimode bend insensitive fiber optimized for multi-wavelengths transmission systems operating in the range of 850-953nm, enabling optimal support of emerging Shortwave Wavelength Division Multiplexing (SWDM) applications that reduce parallel fiber count by at least a factor of four to allow continued use of just two fibers (rather than eight) for transmitting 40 Gb/s and 100 Gb/s and reduced fiber counts for higher speeds.OM5 meets TIA-492AAAE and draft IEC 60793-2-10 A1a.4 requirements while completely backward compatible with existing OM4 networks and applications. It meets RoHS compliant and the fiber patch cord is optically tested for insertion loss to ensure high quality.Model Number:Fiber Optic Patch CordConnector Type:LC/UPC to LC/UPC Type:50/125 OM5Fiber count:DuplexWavelength:850/1300nmFiber Grade:Bend InsensitiveInsertion loss:≤0.3dB(UPC/PC)Return loss:UPC/PC ≥35Min. Bend Radius
(Fiber Core)7.5mmMin. Bend Radius
(Fiber Cable)20/10D (Dynamic/Static)40G Ethernet Distance440m at 850nm100G Ethernet Distance150m at 850nmAttenuation at 850nm3.0 dB/kmAttenuation at 1300nm1.0 dB/kmEffective Modal Bandwidth
(at 850nm)≥4700 MHz·kmEffective Modal Bandwidth
(at 953nm)≥2470 MHz·kmCable Jacket:LSZHJacket Color:Lime Green...CustomizedCable Diameter2.0mmLaying Method:Indoor cablingOperating Temperature (° C)-10~ + 70Storage Temperature (° C)-40 ~ +85Exchangeability≤ 0.2dBCable Patch cord
