0.5M (4Pack) LC to LC Duplex OM3 Multimode Fiber Patch Cable (50/125), 10G Gigab For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

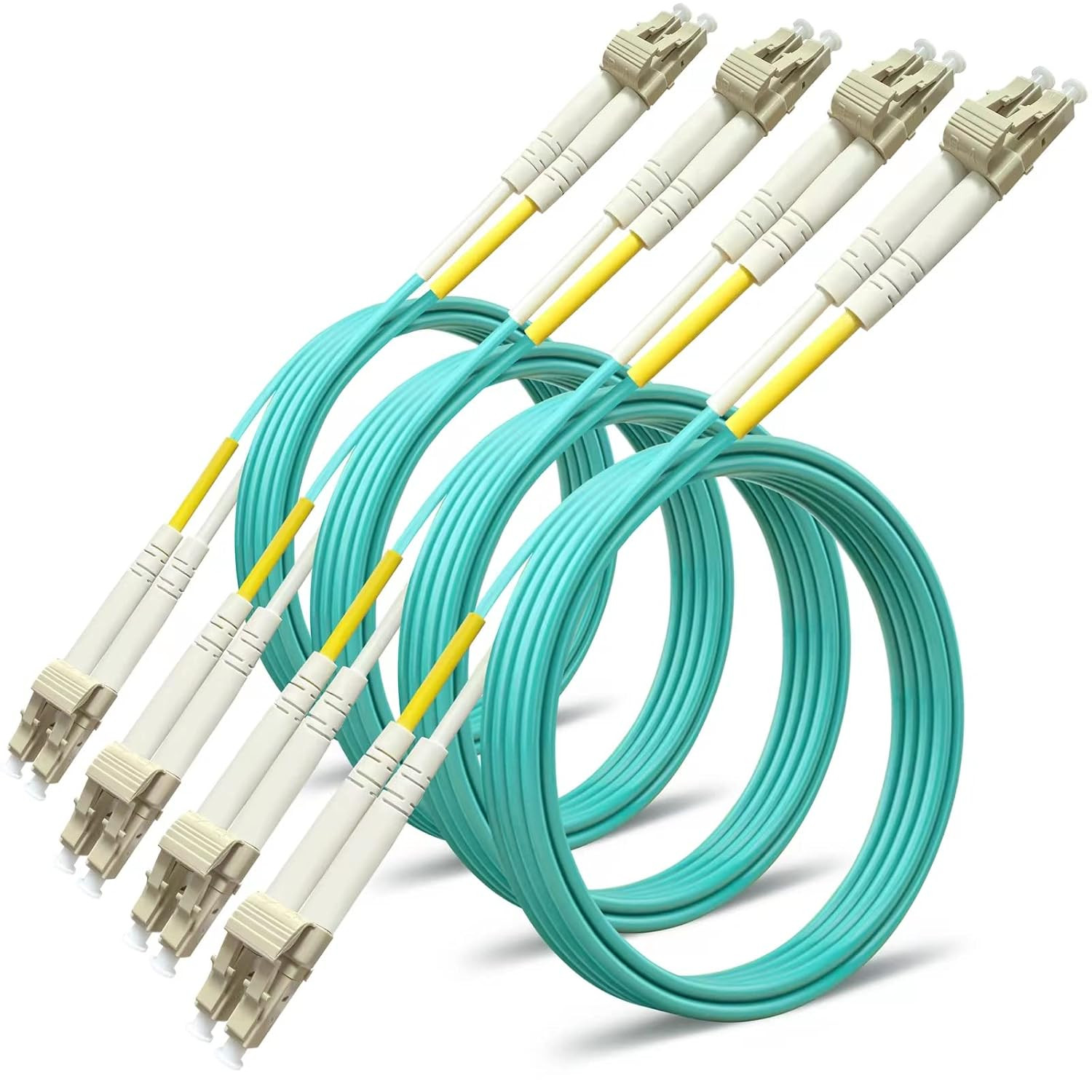

0.5M (4Pack) LC to LC Duplex OM3 Multimode Fiber Patch Cable (50/125), 10G Gigab

Price: US $29.41

0.5M (4Pack) LC to LC Duplex OM3 Multimode Fiber Patch Cable (50/125), 10G Gigabit Fiber Optic Cables, 2.0Mm Fiber Optic Patch CableDescription Connector Type Optical Cable Type Fiber Optic Compatible Devices Fiber Optics Patch Panel, Server Other Special Features of the Product Bend insensitive fiber Connector Gender Male-to-Male Data Transfer Rate 10 gigabits_per_second Connectivity Technology Optical Fiber Recommended Uses For Product Suitable for SFP+ Transceivers, Ethernet Switches, Media Converters Indoor Outdoor Usage Indoor, Outdoor Color Aqua Item Shape Round Brand Name Bangun Model Ban-oms-0.5m-4pk Manufacturer Bangun Part Number Ban-oms-0.5m-4pk Unit Count 4 Count Number of Items 4 Outer Material LSZH Brand Bangun Special Feature Bend insensitive fiber

Product description LC UPC to LC UPC Duplex OM3 Multimode Fiber Optic Patch Cable Specifications Connector Type LC UPC to LC UPC Fiber Grade Bend Insensitive Fiber Mode OM3 50/125μm Fiber Count Duplex Wavelength 850/1300nm 10G Ethernet Distance 300m at 850nm Insertion Loss ≤0.2dB Return Loss ≥35dB Min. Bend Radius (Fiber Core) 7.5mm Min. Bend Radius (Fiber Cable) 20/10D (Dynamic/Static) Cable Jacket LSZH Cable Diameter 2.0mm Operating Temperature -20~75°C Storage Temperature -20~75°C Suitable for SFP transceivers and media converters

This 50/125 OM3 multimode fiber optic cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. Compatible with Cisco SFP-10G-SR, Meraki MA-SFP-10GB-SR, Ubiquiti UF-MM-10G, Fortinet, Mikrotik, D-Link, Supermicro and More

Unique end-face baking technology

The unique end-face baking technology allows the jumper to maintain a dry end-face for an extended period in even the harshest climate conditions, preventing the formation of moisture that could affect data transmission.

Compared with traditional PVC cable, LSZH Jacket is more healthy and safe.

Bangun Fiber Optic Patch Cable adpoted 3.0mm LSZH Jacket that is environment flame retardant, anti-corrosion, pull-resistant, low-smoke, halogen-free and immune to electrical interference.

Bangun products are extensively applicable to telecom operators, fiber optic engineering, CCTV, broadband networks, FTTH, data center in more than 80 countries worldwide.

Add to Cart Customer Reviews 3.9 out of 5 stars 171 4.6 out of 5 stars 41 4.6 out of 5 stars 5 3.5 out of 5 stars 81 4.6 out of 5 stars 69 Price $89.99$89.99 — no data — no data $116.10$116.10 $12.99$12.99 Fiber Count Duplex / 2 Fibers Duplex / 2 Fibers Duplex / 2 Fibers Duplex / 2 Fibers Simplex Fiber Type Corning G.657.A2 Corning G.657.A2 Corning OM3 Corning OM3 Corning G.657.A2 Jacket Armored LSZH, Black Armored LSZH, White LSZH, Aqua HDPE, Black Armored LSZH, Black Cable Diameter 3.0mm 3.0mm 3.0mm 3.0mm 3.0mm Insertion Loss ≤0.15dB ≤0.15dB ≤0.15dB ≤0.15dB ≤0.15dB Low Friction Coating ✓ no data no data no data ✓ Length 1-10 Kilometers 1-30m 0.2-25m 15-300m 10-30m Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.3 out of 5 stars 20 4.2 out of 5 stars 7 5.0 out of 5 stars 2 — — — Price $18.99$18.99 $12.99$12.99 $49.99$49.99 $49.99$49.99 $99.99$99.99 $59.99$59.99 Fiber Count 12 6 6 6 12 12 Fiber Mode 9/125 μm 9/125 μm 50/125 μm 50/125 μm 50/125 μm 9/125 μm Cable Diameter 0.9 mm 0.9 mm 0.9 mm 0.9 mm 0.9 mm 0.9 mm Minimum Bend Radius 7.5mm 7.5mm 7.5mm 7.5mm 7.5mm 7.5mm Insertion Loss ≤0.15dB ≤0.15dB ≤0.15dB ≤0.15dB ≤0.15dB ≤0.15dB Cable Types Color-Coded Color-Coded Color-Coded Bunch Bunch Bunch Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.6 out of 5 stars 165 4.7 out of 5 stars 1,684 4.7 out of 5 stars 232 4.4 out of 5 stars 75 4.4 out of 5 stars 75 4.7 out of 5 stars 80 Price $6.99$6.99 $7.19$7.19 $19.99$19.99 — no data $17.99$17.99 $10.99$10.99 Fiber Count Simplex Simplex Simplex Simplex Simplex Simplex Fiber Grade Corning G.657.A2 Corning G.657.A2 Corning G.657.A2 Corning G.657.A2 Corning G.657.A2 Corning G.657.A2 Jacket LSZH, Yellow Armored LSZH, White Armored LSZH, Black Armored LSZH, White Armored LSZH, Black Armored LSZH, White Cable Diameter 3.0mm 3.0mm 3.0mm 3.0mm 3.0mm 3.0mm Insertion Loss ≤0.15dB ≤0.15dB ≤0.15dB ≤0.15dB ≤0.15dB ≤0.15dB Low Friction Coating no data no data ✓ no data ✓ no data Length 1-30m 1-30m 1-10 Kilometers 1-30m 10-100m 1-30m

WIDE APPLICATION: Bangun 50/125 OM3 multimode fiber optic cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. Suitable for 10/40/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections.
Product details: LC/PC-LC/PC, Duplex, Multimode, OM3, 50/125. Jacket Material: Low-Smoke, Zero Halogen (LSZH) jacket. OD: 2.0mm. Please remove the protective caps (the white plastic boots) are removed prior to inserting the LC optical fiber connector into the transceiver.
Bend insensitive fiber optic cable: Min. Bend Radius (Fiber Core): 7.5mm.
If installed in conduit: the Minimum conduit size is expected to be ≥13mm diameter for duplex LC connector and ≥10mm diameter for simplex LC connector.
Bangun LC to LC Multimode OM3 Duplex fiber patch cords terminated with Foxconn precision ceramic ferrule LC/PC fiber patch cable connectors, insuring low insertion loss(less than 0.2 dB) for faster speed network performance.
