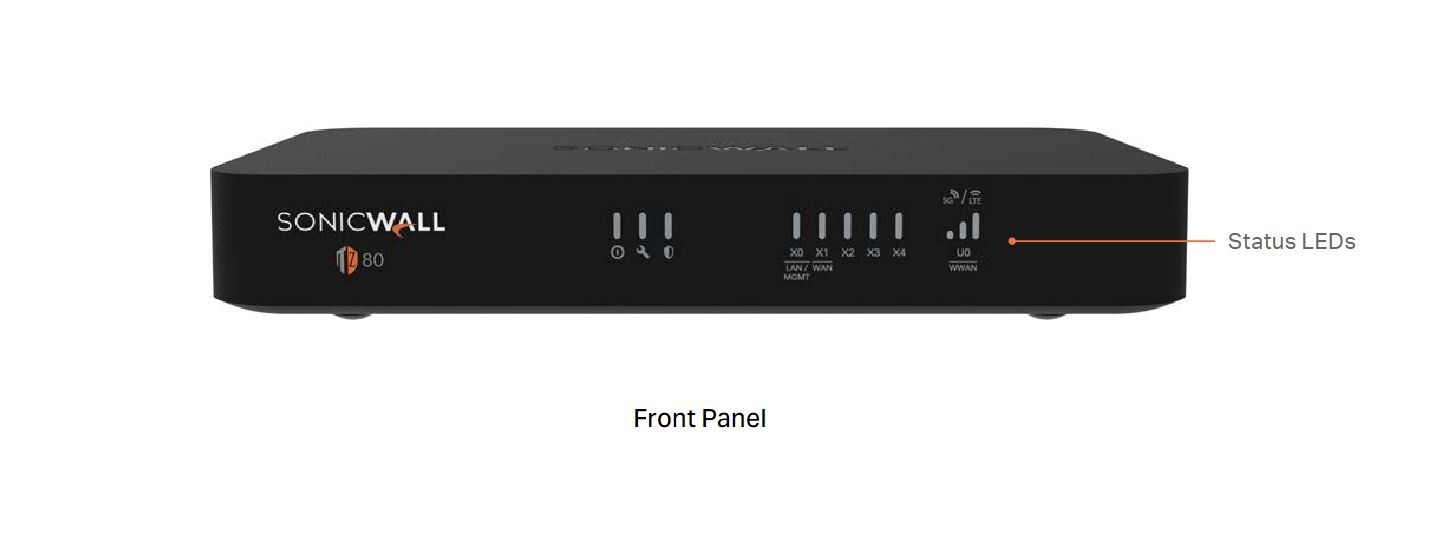

Main Specifications Product Description SonicWall TZ80 SOHO - Security appliance with 3 YR APSS & 1 YR CSE Device Type Security appliance Form Factor External Networking Number of Ports 5 (4x1G Ethernet + 1 xSFP) Connectivity Technology Wired Network Management Network Security Manager (2.6 and above), CLI, SSH, Web UI, REST APIs Network / Transport Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS,IEEE 802.3 Routing Protocol OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR) Performance Firewall: 750 Mbps,Threat Prevention: 750 Mbps,Application Inspection: 750 Mbps,Intrusion Prevention System (IPS): 750 Mbps,Anti-malware throughput: 750 Mbps,TLS/SSL Inspection & Encryption (DPI SSL): 250 Mbps,IPSEC VPN: 750 Mbps IP address assignment Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server,DHCP relay NAT modes 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT,transparent mode Routing protocols BGP, OSPF, RIPv1/v2, static routes, policy-based routing QoS Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCPmarking, 802.1e (WMM) Authentication LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal userdatabase, Terminal Services, Citrix, Common Access Card (CAC) Local user database 150 VoIP Full H323-v1-5, SIP Standards TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE,L2TP, PPTP, RADIUS, IEEE 802.3 Certifications Pending : CSfC High availability Active/Standby with stateful synchronization Hardware Form Factor Desktop Power supply 35W Maximum power consumption (W) 11.6W Input power 100-240 VAC, 50-60Hz, 3A Total heat disipation (BTU) 39.6 Dimensions 200.3 x 113.6 x 30.2 (mm) Weight 0.438 Kg WEE weight 0.755 Kg Shipping weight 0.973 Kg MTBF @26°C in years 64.3 Environment(Operating/Storage) 0°C to ~+ 40°C / -40°C to ~ +70°C Humidity 5-95% non-condensing Firewall General Operating System SonicOS Interfaces 4*1GbE Cu, 1*1G SFP, 1 console, 1 USB (USB type-C or USB type-A) Management Network Security Manager (2.6 and above), CLI, SSH, Web UI, REST APIs Single Sign-On (SSO) Users 250 VLAN interfaces 64 Access Points Supported (Maximum) 2 Firewall/VPN Performance Firewall inspection throughput 750 Mbps Threat prevention throughput 750 Mbps Application inspection throughput 750 Mbps IPS thoughput 750 Mbps Anti-malware inspection throughput 750 Mbps TLS/SSL inspection and encryption throughput (DPI SSL) 250 Mbps IPSEC VPN throughput 750 Mbps Connections per second 750 Mbps Maximum connections (SPI) 300000 Maximum connections (DPI) 75000 Maximum connections (DPI SSL) 10000VPN Site-to-site VPN tunnels 50 IPSec VPN clients (maximum) 1(5) SSL VPN licenses (maximum) 1(5) Encryption/authentication DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography Key exchange Diffie Hellman Groups 1, 2, 5, 14v Route-based VPN RIP, OSPF, BGP Certificate support Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA forSonicWall-to- SonicWall VPN, SCEP VPN features Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, RedundantVPN Gateway, Route-based VPN Global VPN client platforms supported Microsoft® Windows 10 and Windows 11 NetExtender Microsoft® Windows 10 and Windows 11, Linux Mobile Connect Apple® iOS, Mac OS X, Google® Android™Security Services Deep Packet Inspection Services Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL Content Filtering Service (CFS) HTTP URL, HTTPS IP, keyword and content scanning, Comprehensivefiltering based on file types such asActiveX, Java, Cookies for privacy, allow/foroffer lists Comprehensive Anti-Spam Service Yes Application Visualization Yes Application Control Yes Capture Advanced Threat Protection Yes DNS Filtering YesCloud Secure Edge Secure Private Access YesRegulatory Major regulatory compliance (wired models) FCC Class B, ICES Class B, CE (EMC, LVD, RoHS), RCM, VCCI Class B, UL,cUL, CB, Mexico DGN by UL, WEEE, REACH, BSMI, KCC/MSIP, ANATEL,TEC/MTCTERegulatory Model Numbers TZ80 APL69-11B
