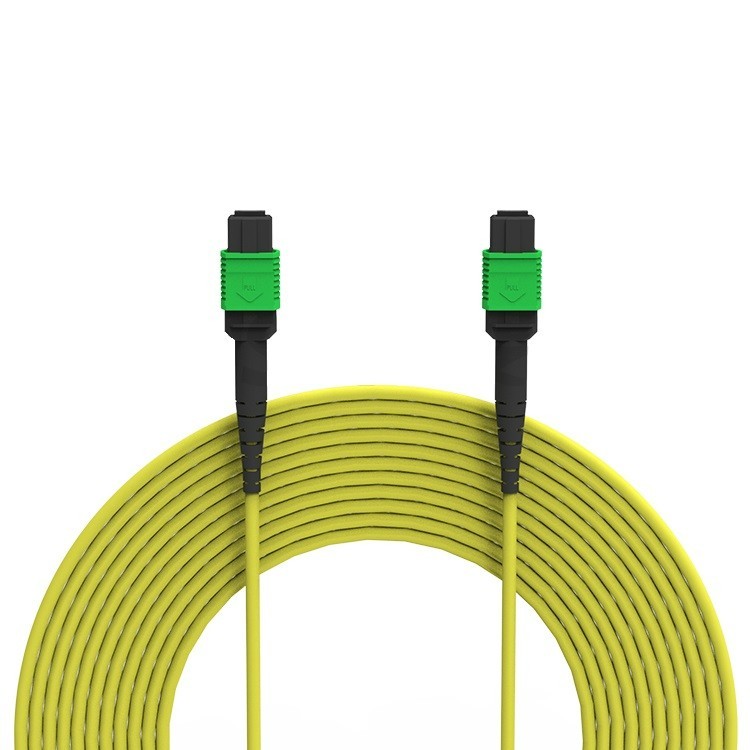

1~100M 8 Cores Singlemode Cable 9/125 MPO MTP Female Male Fiber Optic Patch Cord Type BMPO Jumper, MPO/APC to MPO/APC 8 cores 12 cores Single Mode (OS2) 9/125 3mm Fiber Optic Patch Cord
MPO jumpers, allow for the seamless migration to higher data rates in the data center when used in conjunction with our trunk cables. They are typically used for patching within a cabinet. MPO cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.Due to the MPO-12 also supporting MPO-8 fiber systems, it is also ideal for 8-fiber parallel single mode optical transceivers applications, such as 40G QSFP+ PLR4, 100G QSFP28 PSM4, 400G OSFP DR4/XDR4, and 400G QSFP-DD DR4/XDR4 optics connection.Product ParamentersConnector AMPO Female/MaleConnector BMPO Female/MaleFiber Mode9/125 SMWavelength1310/1550nmFiber GradeG.657.A1 (Compatible with G.652.D)Polish TypeAPCMinimum Bend Radius10mmCable Length1m, 2m 3m ...customizedInsertion Loss (dB) 850/1300nmStandard Loss ≤0.50Elite Low Loss ≤0.35
Return LossAPC ≥60dBUPC ≥50dB
Attenuation at 1310nm≤0.32dB/kmAttenuation at 1310nm≤0.18dB/kmJacket OD3.0mmCable Tensile Load66 NTensile Strength (Long/Short Term)80N/240NOperating Temperature (° C)-10~ + 70Storage Temperature (° C)-40 ~ +85Test Assured Program3D interferometer provides verification of MTP/MPO polishing process and making all parameters of the polished MT ferrule complies and exceeds industry standards. Clean optical connectors are paramount in providing a reliable, high-performance fiber optic infrastructure.Features:Used to connect equipment that utilizes MPO style connectors and Single Mode OS1/OS2 9/125μm Cabling
● Type A, Type B and Type C Polarity Options available● Each cable 100% tested for low insertion loss and back reflection● Custom lengths and cable colors available● OFNR (PVC), Plenum(OFNP) and Low-Smoke, Zero Halogen(LSZH) Rated options● Reduced Insertion Loss by up to 50%● High Durability● High Temperature Stability● Good Exchangeability● High Density design cuts down on installation costs● Designed for 40Gig QSFP systemsMPO Connector TypeMPO connector can choose Male or FemaleFiber Polarity Guidance12 Fibers MPO Fiber Polarity 24 Fibers MPO Fiber Polarity
