Product Description
- Server to Switch uses Type B crossover sequence jumpers.
- Switch to Switch uses Type B crossover sequence jumpers.
- Type B crossover jumper is required for direct connection between devices.
- Type A straight-through jumperscannot be used for direct connection between devices.
- Support custom cable lengths and Type A/Type B/Type C wire sequences and MPO Male connectors.
- Lots of stock, should you need more quantity please contact us to handle. Thanks!
Parameter:

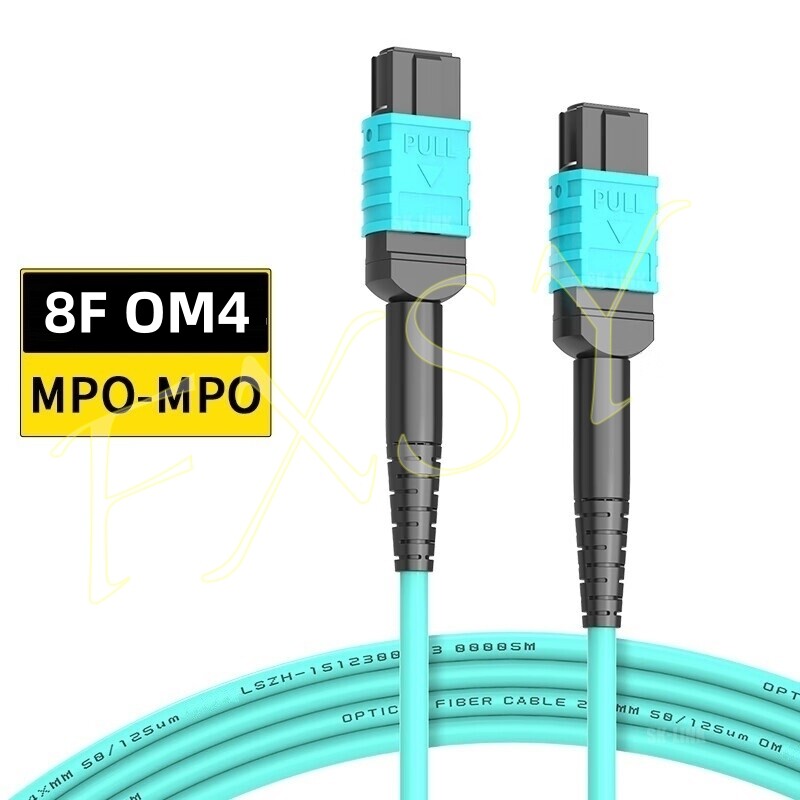

- Connector A:MPO/PC Female (Without Pin)
- Connector B : MPO/PC Female (Without Pin)
- Polarity:Type B(Cross
- Polarity: Type A(Straight
- Number of cable cores: 8|12
- Length: 1-40M
- Diameter: 3.0mm
- Fiber Type: Multi-mode OM4
- Insertion Loss: ≤0.35dB
- Return loss: ≥30dB
- Ferrule Material：Ceramic (zirconia)
- Sheath: LSZHjacket
- Operating temperature：-40~+85°C
Package List:
- 1Pcs MPO-MPOFiber Optic Patch Cord
More Types MPO jumpers:
MPO-OM3-Aqua：
MPO/Female-MPO/Female 8|12F TypeB/TypeA
MPO/Male-MPO/Male 8|12F TypeB/TypeA
MPO/Male-MPO/Female 8|12F TypeB/TypeA
MPO/Female-4×LC Duplex TypeB/TypeA
MPO/Female-6×LC Duplex TypeB/TypeA
MPO/Male-4×LC Duplex TypeB/TypeA
MPO/Male-6×LC Duplex TypeB/TypeA
MPO-OM4-Aqua：
MPO/Female-MPO/Female 8|12F TypeB/TypeA
MPO/Male-MPO/Male 8|12F TypeB/TypeA
MPO/Male-MPO/Female 8|12F TypeB/TypeA
MPO/Female-4×LC Duplex TypeB/TypeA
MPO/Female-6×LC Duplex TypeB/TypeA
MPO/Male-4×LC Duplex TypeB/TypeA
MPO/Male-6×LC Duplex TypeB/TypeA
MPO-OM4-Red：
MPO/Female-MPO/Female 8|12F TypeB/TypeA
MPO/Male-MPO/Male 8|12F TypeB/TypeA
MPO/Male-MPO/Female 8|12F TypeB/TypeA
MPO/Female-4×LC Duplex TypeB/TypeA
MPO/Female-6×LC Duplex TypeB/TypeA
MPO/Male-4×LC Duplex TypeB/TypeA
MPO/Male-6×LC Duplex TypeB/TypeA
MPO-OS2-Yellow：
MPO/Female-MPO/Female UPC/APC 8|12F TypeB/TypeA
MPO/Male-MPO/Male UPC/APC 8|12F TypeB/TypeA
MPO/Male-MPO/Female UPC/APC 8|12F TypeB/TypeA
MPO/Female-4×LC Duplex UPC/APC TypeB/TypeA
MPO/Female-6×LC Duplex UPC/APC TypeB/TypeA
MPO/Male-4×LC Duplex UPC/APC TypeB/TypeA
MPO/Male-6×LC Duplex UPC/APC TypeB/TypeA
