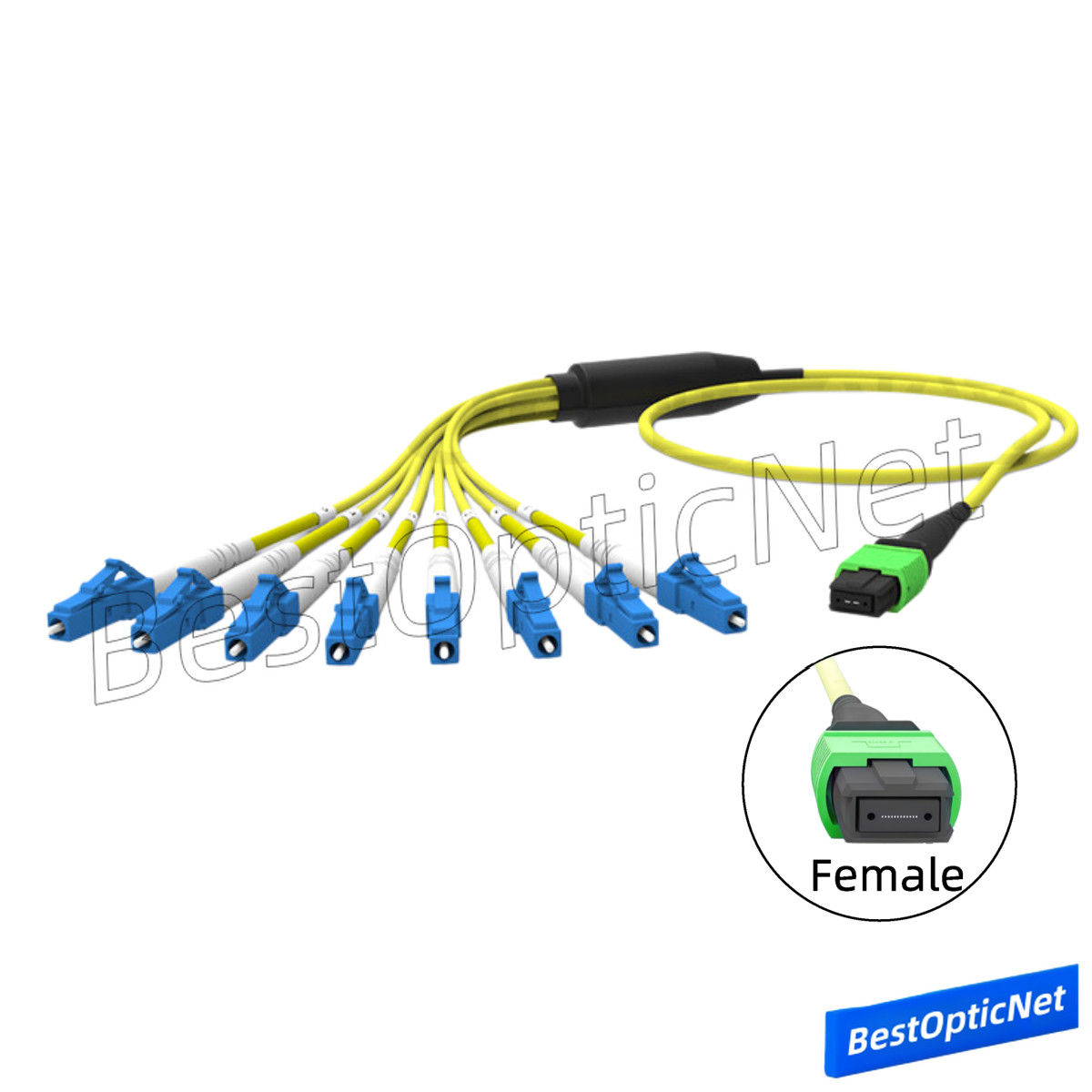

Product Description

• MPO Male cannot be used to connect optical modules,MPO Male can only connect with MPO Female,To connect an optical module, select MPO Female.
• LC Simplex connector, compatible with all wiring sequences of Type A/Type B/Type C.
• Lots of stock, should you need more quantity please contact us to handle. Thanks!

Parameter:

• Connector A : MPO APC or UPC Male orFemale
• Connector B : LC/UPCMaleSimplex
• Polarity: All are compatible

• Number of cable cores: 8|12
• Length: 1-15M(Branch 0.5m)
• Diameter: 3.0mm(Branch 2.0mm)
• Fiber Type: OS2
• Insertion Loss: ≤0.35dB
• Return loss: ≥50dB(UPC)≥60dB(APC)
• Wavelength: 1310nm/1550nm
• Durability: 50 times of insertion and removal, Variation in insertion loss is less than 0.2dB
• Bending radius: 10D (static), 20D (dynamic)
• Tensile strength:100N
• Ferrule Material：Ceramic (zirconia)
• Sheath: LSZH jacket
• Operating temperature：-40~+85°C

Package List:

• 1Pcs MPO-LC Fiber Optic Patch Cord
