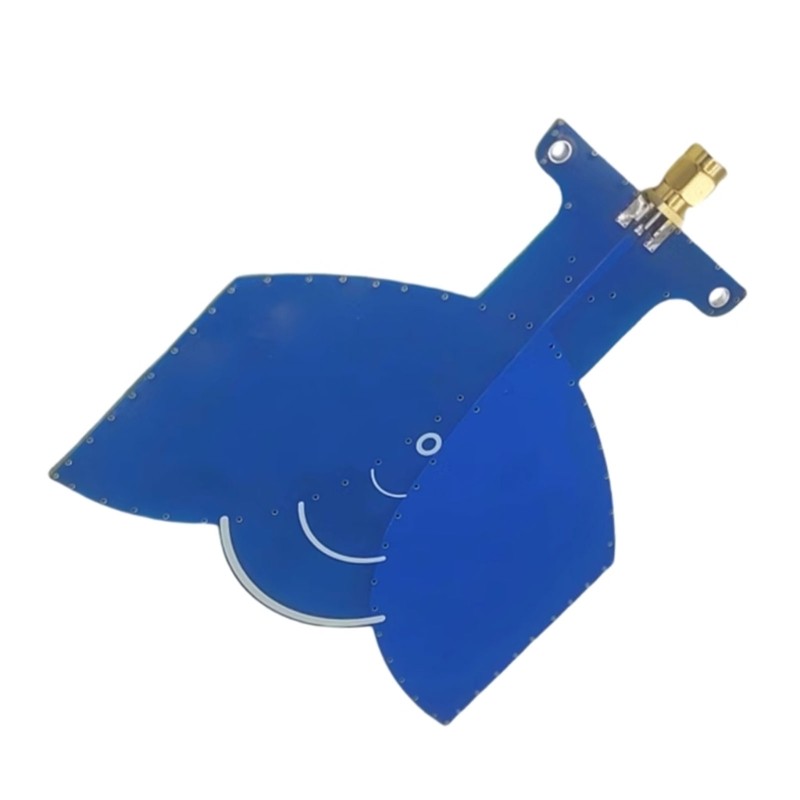

Features: AH569 Wideband Directional delivers good performances across 1.1GHz to 9GHz frequency ranges with VSWR≤2 and return loss< 10dB, optimized through multiple design iterations for superior signals transmission.
Featuring coplanar linearly polarized design and PCB construction, this directional communication ensures stable signals reception in aviation, positioning, and applications.
Ideal for engineers, operators, and wireless communication researcher requiring high precisions signals control in aerospace and telemetries systems.
Perfect for aircraft communication link, radars signals analysis, satellite tracking systems, and weather stations demanding wideband coverage.
Engineered with multi layer PCB technology and impedance components, this directional maintains consistent gains patterns across its operational bandwidth for data transmission.Specifications: Component:Metal
Operating frequency: 1.1GHz-9GHz
Impedance: 50Ω
Gains: 2-11dBi
Standing waves ratio: <2 (typical)
Maximums input power: Includes: 1Piece Wideband Directionalnote: Please allow 1mm errors due to manual measurement.
Due to the differences between different monitors, the picture may not reflect the actual color of the item.
