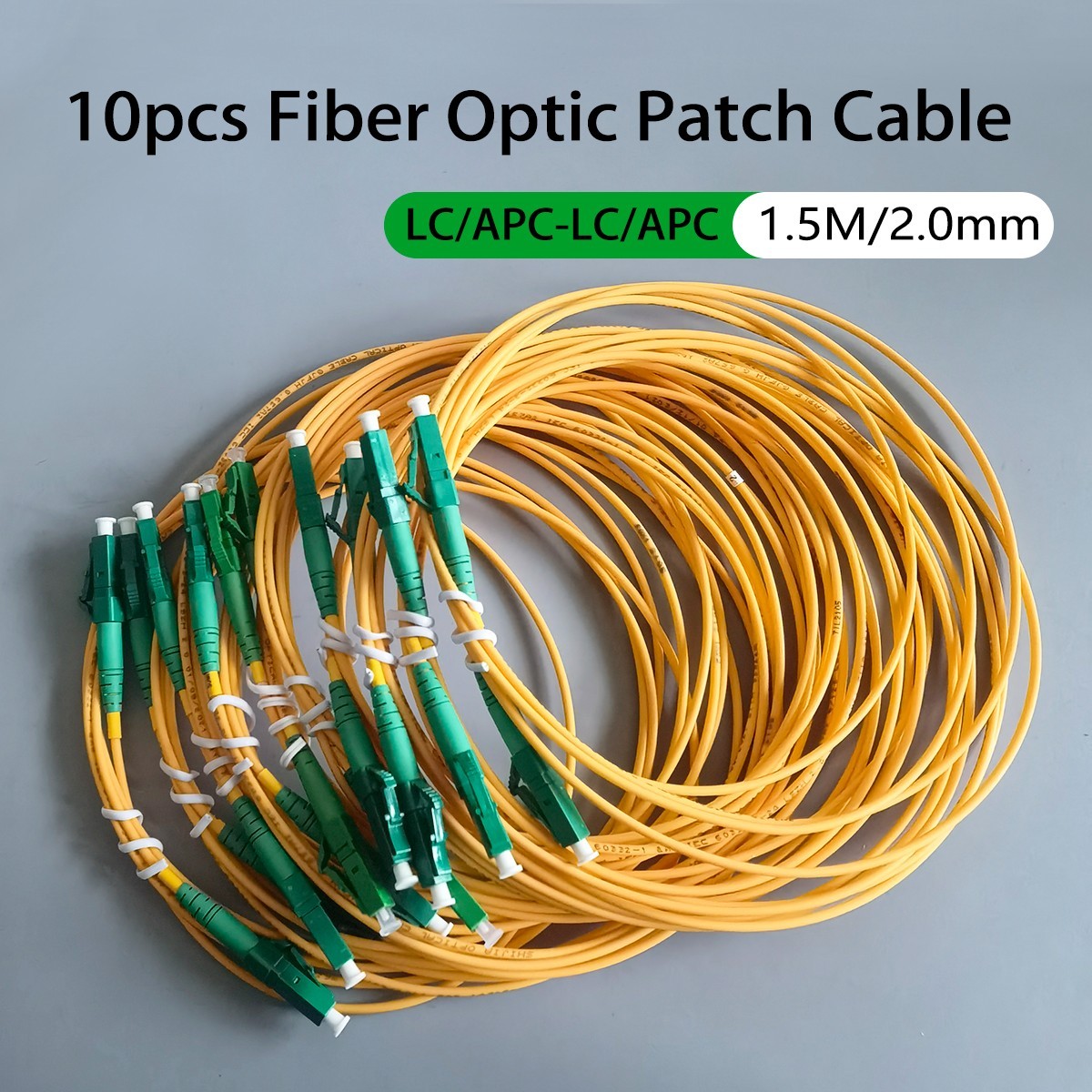

Superior Bend Insensitivity:Built with G.657.A2 fiber, which allows for very tight bending radii (as low as 7.5mm for 10 turns) without significant signal loss, perfect for in-home installations and cramped panels.

Low Reflection & Low Loss:Features APC (Angled Physical Contact) polished connectors, providing a typical insertion loss of ≤0.3dB and a high return loss of ≥65dB, crucial for clear signal transmission in PON networks.

Enhanced Safety:The LSZH (Low Smoke Zero Halogen) jacket does not emit toxic or corrosive fumes when exposed to fire, protecting both people and sensitive equipment.

Durable & Compact Design:The 2.0mm diameter cable is highly flexible and robust. The small form-factor LC connectors save significant space in high-density patches.

FTTH Optimized:The ideal solution for connecting ONTs (Optical Network Terminals) to wall outlets or for use within optical distribution points inside an apartment or office.

Standard Color Coding:The green connector boots and yellow jacket provide instant visual identification for single mode APC connections, preventing accidental mating with UPC TypeSimplex (Single Fiber)Cable StandardITU-T G.657.A2 (Bend-Insensitive)Connector TypeLC/APC to LC/APCPolish TypeAPC (Angled Physical Contact)Insertion Loss≤ 0.3 dBReturn Loss≥ 65 dBCable Diameter2.0 mmJacket MaterialLSZH (Low Smoke Zero Halogen)Jacket ColorYellowConnector Boot ColorGreen (Standard for APC)Minimum Bend Radius7.5mm(for 10 turns, static) /15mm(once, under load)Operating Temperature-20°C to +75°CTensile Load≤ 100 N (During Installation)Available Lengths1.5 meters (4.92 ft)
