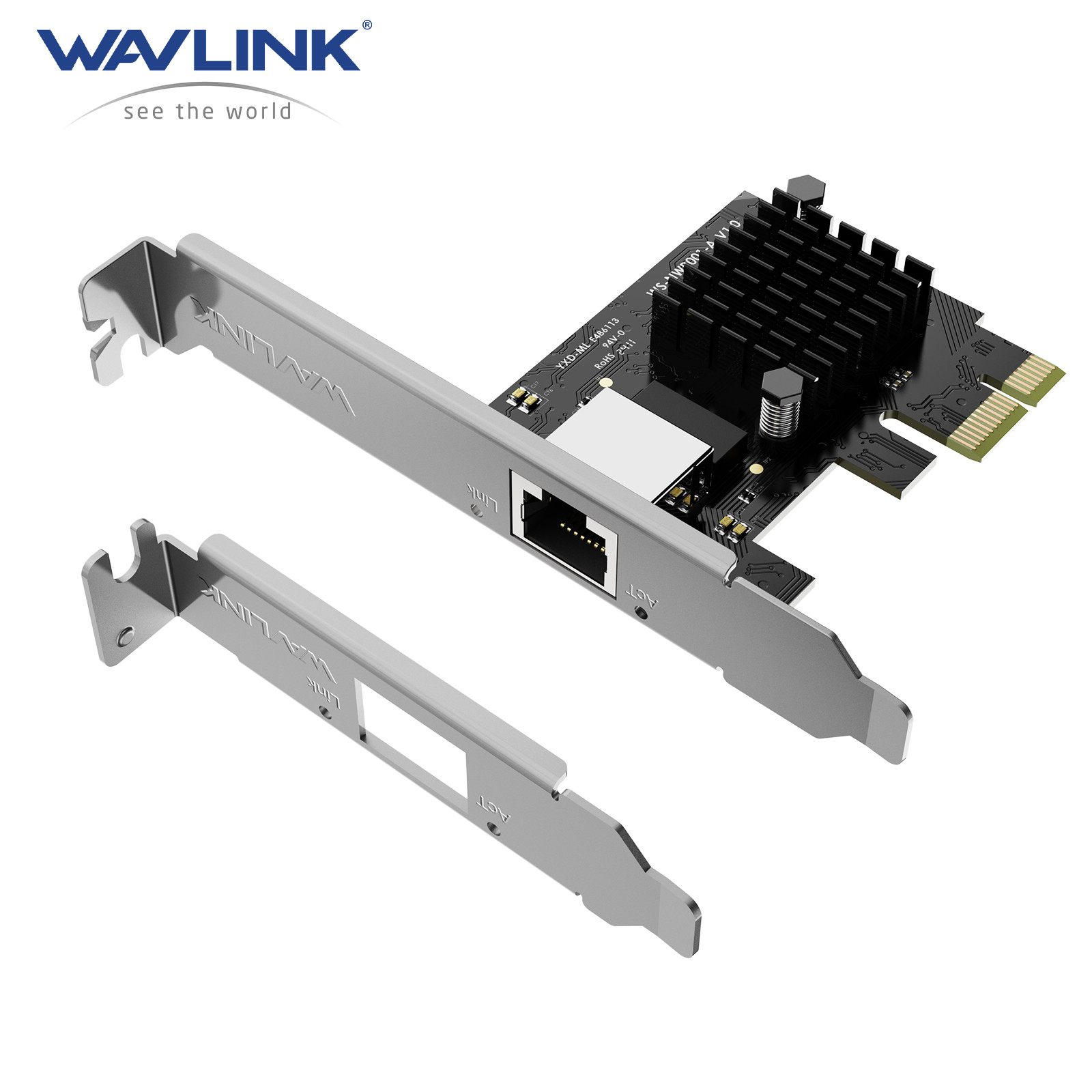

Product ModelTitleWL-NWP001:
WAVLINK 1G Base-T PCIe Network CardWL-NWP002:
WAVLINK 2.5G Base-T PCIe Network CardWL-NWP003:
WAVLINK 5G Base-T PCIe Network CardTransfer Speed1Gbps (1000/100/10Mbps)2.5Gbps (2500/1000/100Mbps)5Gbps (5000/2500/1000Mbps)ChipsetRealtek RTL8111HRealtek RTL8125BRealtek RTL8126Operating System CompatibilityWindows 11/10/8.1/8/7/XP/Vista, LinuxWindows 11/10/8.1/8/7, LinuxWindows 11/10, LinuxKey Selling Points- 1G high-speed transmission, 10 times faster than traditional 100Mbps.
- Compatible with multiple PCIe slots (x1, x4, x8, x16).
- Low-profile and standard brackets.
- Metal shielding to reduce electromagnetic interference- 2.5G high-speed transmission, 2.5 times faster than traditional gigabit.
- Compatible with multiple PCIe slots (x1, x4, x8, x16).
- Low-profile and standard brackets.
- Metal shielding to reduce electromagnetic interference- 5G high-speed transmission, 5 times faster than traditional gigabit.
- Compatible with multiple PCIe slots (x1, x4, x8, x16).
- Low-profile and standard brackets.
- Metal shielding to reduce electromagnetic interferenceInstallation Steps1. Turn off the PC, open the case, and locate an available PCIe slot.
2. Insert the PCIe card.
3. Secure the bracket and plug in the Ethernet cable.
4. Download and install the driver from the Realtek website1. Turn off the PC, open the case, and locate an available PCIe slot.
2. Insert the PCIe card.
3. Secure the bracket and plug in the Ethernet cable.
4. Download and install the driver from the Realtek website1. Turn off the PC, open the case, and locate an available PCIe slot.
2. Insert the PCIe card.
3. Secure the bracket and plug in the Ethernet cable.
4. Use the included USB flash drive to install the driverSpecial Features- Supports Wake On LAN, PXE Boot, Jumbo Frame (9KB).
- Compatible with CAT5E cables without replacing CAT6 cables.
- Thickened gold fingers for oxidation resistance and stable transmission- Supports Wake On LAN, PXE Boot, Jumbo Frame (16KB).
- Compatible with CAT5E cables without replacing CAT6 cables.
- QoS technology support to optimize gaming network performance- Supports Wake On LAN, PXE Boot, Jumbo Frame (16KB).
- Compatible with CAT5E cables without replacing CAT6 cables.
- Included USB flash drive for simplified driver installationProduct Specifications- Model: WL-NWP001.
- Weight: 43g.
- Dimensions: 120×70×55mm.
- LED Indicators: 1 x Link (green), 1 x Ethernet (yellow)- Model: WL-NWP002.
- Weight: 43g.
- Dimensions: 120×70×55mm.
- LED Indicators: 1 x Link (green), 1 x Ethernet (yellow)- Model: WL-NWP003.
- Weight: 43g.
- Dimensions: 120×70×55mm.
- LED Indicators: 1 x Link (green), 1 x Ethernet (yellow)Package Contents- 1 x 1Gbps PCIe Network Card.
- 1 x Low-profile bracket.
- 2 x Screws.- 1 x Quick Start Guide- 1 x 2.5Gbps PCIe Network Card.- 1 x Low-profile bracket.
- 2 x Screws.
- 1 x Quick Start Guide- 1 x 5Gbps PCIe Network Card.
- 1 x Low-profile bracket.- 1 x USB flash drive.
- 1 x Quick Start Guide
