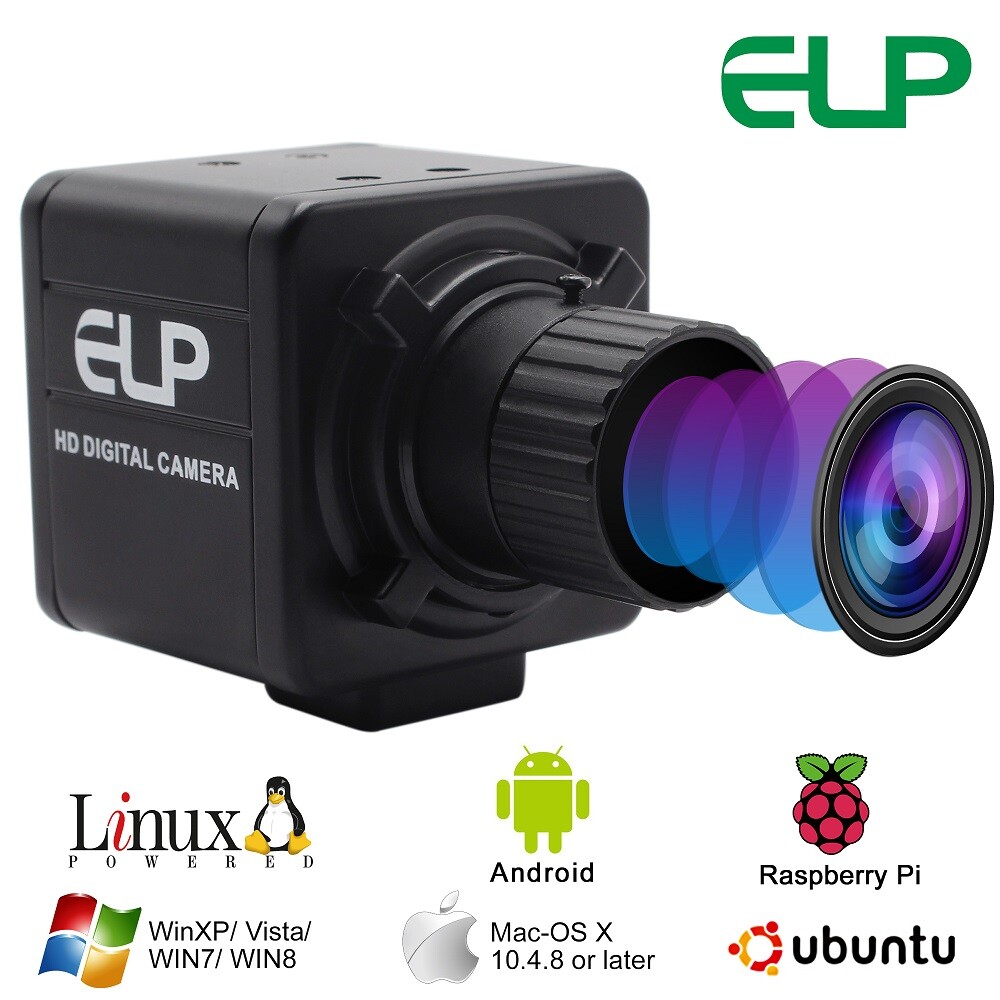

Low Light Camera 1.3MP 960P AR0130 CMOS CS Mount Lens Industrial Mini USB Video Webcam Camera UVC for Android, Linux,Windows Features *1.3Megapixel Low illumination Black White (Monochrome) USB Camera* with CS manual fixed focus lens 4mm(6mm/8mm optional)*with Mini Box Case*High speed USB 2.0 interface*High quality image*Low power consumption*Small outline for embedded application*UVC compliance for use in OS Windows, Linux, Android*OTG support, Smartphone supportSpecification :
Module No.
ELP-USB130W01MT-MF40 (4mm manual focus lens)
Module Size
38mm × 38mm 32mm × 32mm
Temperature (Operation)
-20°C to 70°C
Temperature (Stable Image)
0°C to 60°C
Camera Board Assembly technique
SMT (ROSH)
Lens
manual focus lens
Object distance
5CM-100M
Resolution
600LW/PH (Center)
interface
USB 2.0 High Speed
protocol
USB Video Class(UVC)
Power
USB bus power
Operating system request
Win XP\Win7\Win8\Android\Linux\Mac OS
Certifications
FCC and CE
Sensor Type
AR0130 (1/3” )
Active Array Size
1280 *960
Minimal illumination
0.01Lux
Pixel Size
3.75um
Maximum Image Transfer Rate
1280 (H) x 960 (V) pixels MJPEG 15fps
1280 (H) x 720 (V) pixels MJPEG 30fps
800 (H) x 600 (V) pixels MJPEG 30fps
640 (H) x 480 (V) pixels MJPEG 30fps
320 (H) x 240 (V) pixels MJPEG 30fps
S/N Ratio
44dB
Dynamic Range
83.5dB
Shutter
Rolling shutter/ frame exposure
Lens Type
Lens Construction
5G+IR
Focal Length
4mm manual focus lens
F/No
1.8
BFL(Optical)
6.5mm
FOV
78degree
IR Filter
650±10nm
DSP Type
RV1080P
AGC/AEC/AWB/ABF
Auto
Output Formats
YUYV/MJPEG
IR CUT
SUPPORT
Adjustable parameters
Brightness Contrast Hue Saturation Sharpness Gamma White Balance Exposure Focus
Package
LQFN-40pin
USB Cable
(2M/3M/5M Optional)
Applications Use for all kinds of machine:ATM,Kiosk,POS, TV box,automatic vending machine,video door phone,Interactive system,advisement player,Medical Equipment, Printer capture, biological Equipment, HD surveillance, etc.Effect Image: Products Display:
