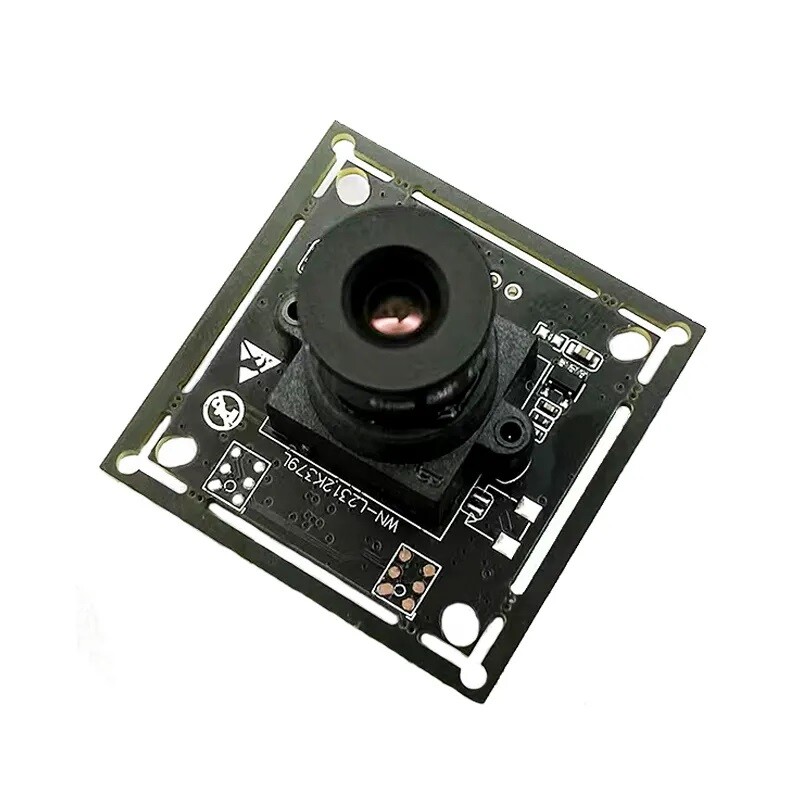

Product Parameters:·Module Size:38*38mm·Pixel Size: 4.8*4.8μm·Image Sensor:1/2.0-inch CMOS Sensor·Image Color:Monochrome·Max. Resolutions: 1280*1024V·Frame Rate: 180fps·Output Format:MJPEG,YUY2 ·Lens:FEL:6.0mm, F/NO:1.2, 5G+ IR 650NM, M12 P0.5·Field of View:63.3°·Focus Mode:Fixed Focus·Dynamic range:77dB·Shutter Mode: Global Shutter·Output & Power Supply:High Speed Plug and Play for Windows, Android, Linux, Mac OS, etc.·Cable Length:1m·Controllable Parameters:Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure·Supported OS:UVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc.Supported Resolutionsand Frame Rates:FormatResolutionsFrame RateFormatResolutionsFrame Definitions:

Pin No.

Signal Names

Descriptions

1

VCC

DC 5V Power

2

DM

USB2.0 Data-

3

DP

USB2.0 Data+

4

GND

Ground

5

GND

Ground

Working Conditions:

WorkingVoltage

DC 5V

WorkingCurrent

190mA

Working Temperature

-20°C ~ 60°C

Storage Temperature

-20°C~ 85°C

Humidity

80 ~85%

Package Include:1x USB Camera Module
