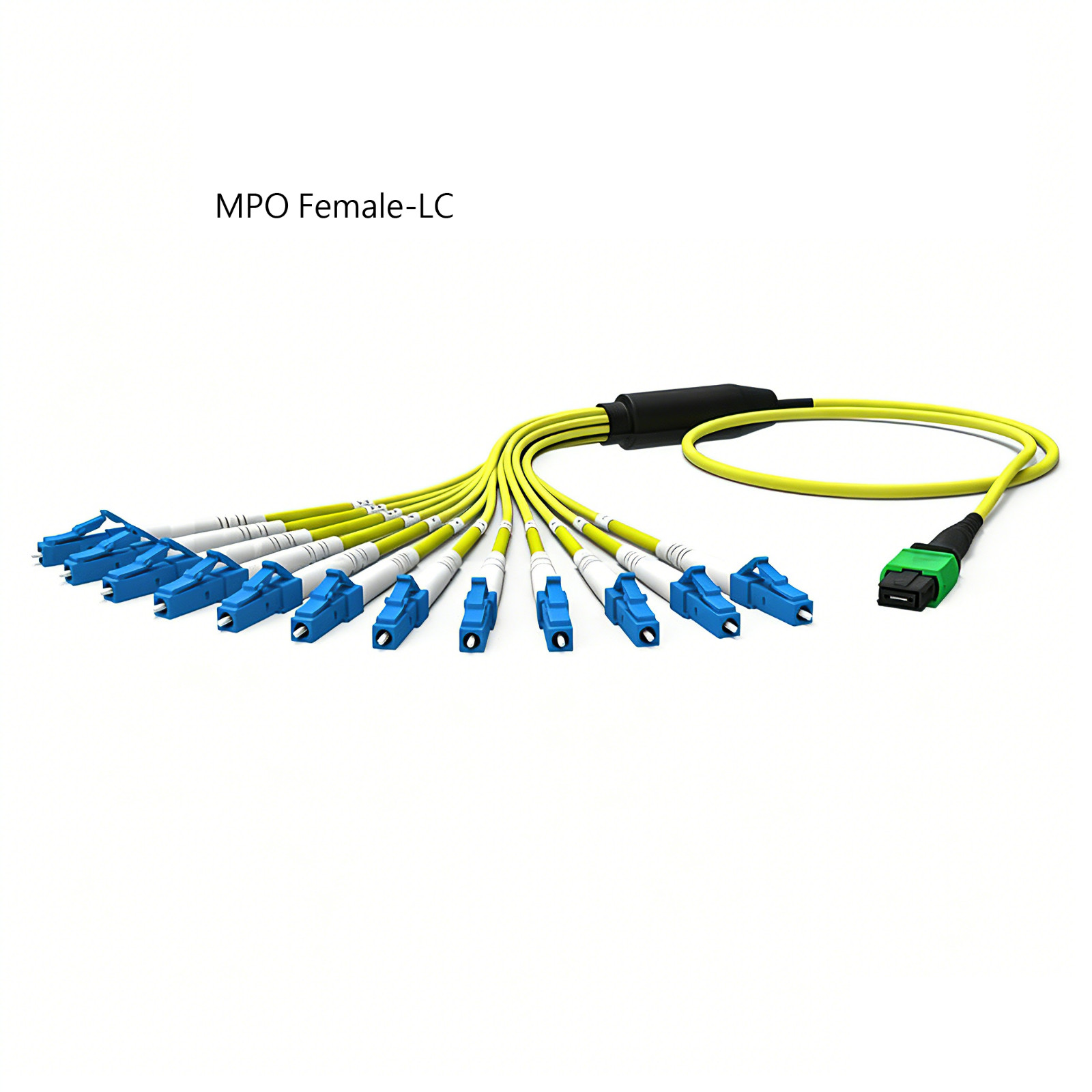

MPO/MTP Female/Male to 12LC Type B Breakout Cable, OS2 Single Mode 9/125 Low Loss Data Center Patch CordDescription

1.Description

MPO Fan-Out Assemblies interface multifiber MPO with discrete single fiber LC, SC, FC connectors. Assemblies are typically used to directly interconnect MPO cassettes, panels or backbone trunk assemblies with the active equipment ports, saving costly data center rack space and easing fiber management. Replacing traditional MPO module Fan-Out Assemblies reduce amount of interconnection improving power budget cost effectiveness.

LSZH cable jacket type

Standard jacket colors: SM: Yellow, MM OM3: Aqua, OM4 Purple

Factory terminated and tested

Optimized performance

Rapid deployment
Factory terminated modular system saves installation and reconfiguration time during moves, ads and changes

Reliability 100% tested - combination of high-quality components and manufacturing quality control guarantees product to the highest standards

Support customizes: All product can be designed and produced according to what your need.

3Feature

---Lowinsertionlossand highbackreflectionloss

---GoodDurability

4. Technical Specifications

4.1 Optical Performance

MPO

IL Average: 0.15 dB

IL Max: 0.35 dB

Return Loss: >30dB

LC，SC , FC

IL Average: 0.17* dB

IL Max: 0.25* dB

Return Loss: >30dB

* Tested as per IEC 61300-3-4

Installation Temperature -5 ~ +50°C

Operation Temperature -20 ~ +60°C

5 Applications:

---Data center
