Product Description

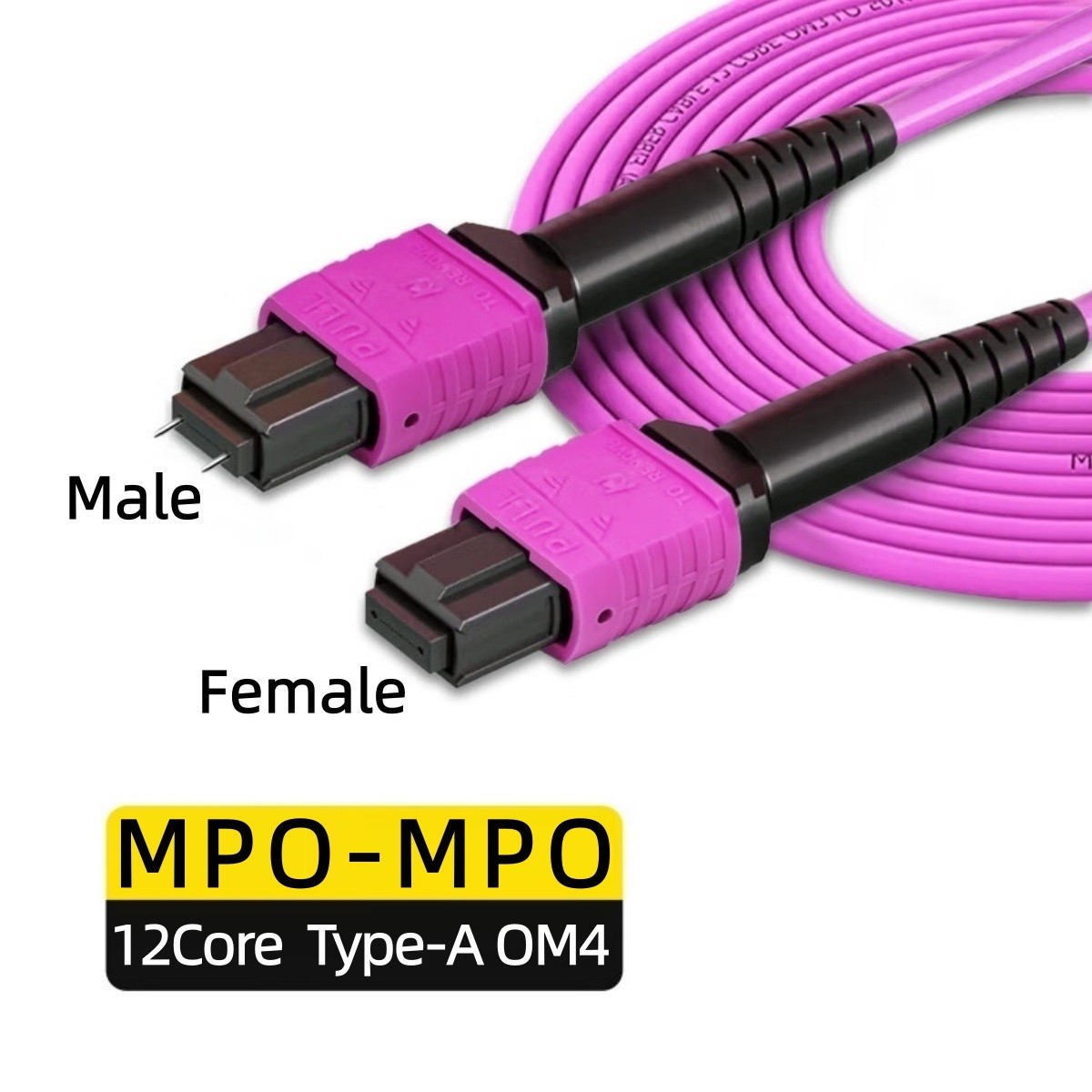

- MPO/UPC Female suitable for QSFP SR440G/100G/200G Optical module.
- MPO Male cannot be used for connecting optical modules.
-
- Type A straight-through sequence is used for cable extension.
- Type B crossover sequence is required for direct connection between devices.
- Type C paired crossover cables are used in the integrated cabling scenario.
- Support custom cable lengths and Type A/Type B/Type C wire sequences and MPO Male/Female UPC/APC connectors.
- Lots of stock, should you need more quantity please contact us to handle. Thanks!
Parameter:
- Connector A : MPO/UPC Male
- Connector B : MPO/UPCFemale
- Polarity: Type B(Cross over:
- Polarity: Type A(Straight
- Number of cable cores: 12
- Length: 1-70M
- Diameter: 3.0mm
- Fiber Type: Multi-mode OM4
- Insertion Loss: ≤0.35dB
- Return loss: ≥30dB
- Wavelength: 850nm/1300nm
- Durability: 50 times of insertion and removal, Variation in insertion loss is less than 0.2dB
- Bending radius: 10D (static), 20D (dynamic)
- Tensile strength:100N
- Ferrule Material：Ceramic (zirconia)
- Sheath: LSZH jacket
- Operating temperature：-40~+85°C
Package List:
- 1Pcs MPOFiber Optic Patch Cord
