Product Features

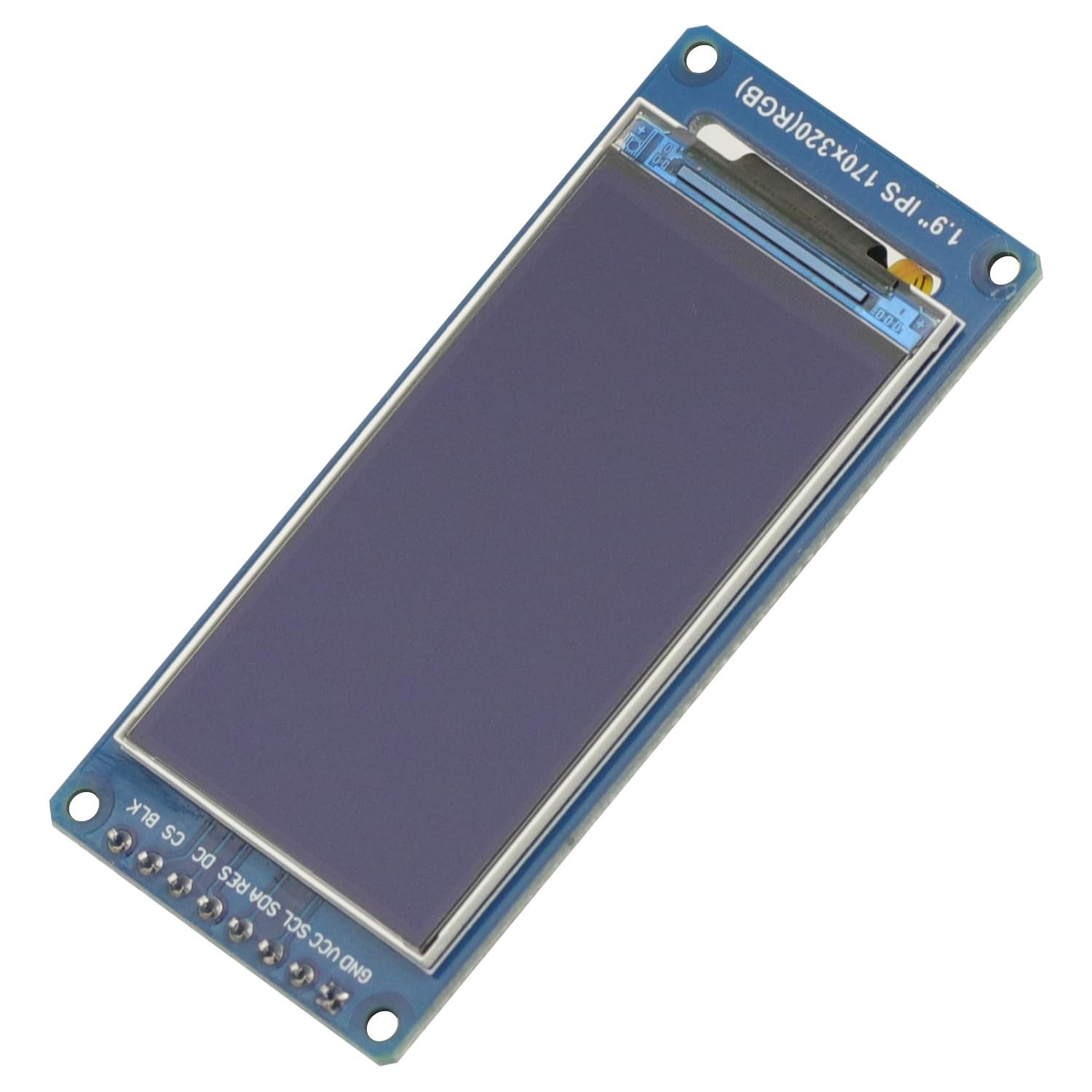

1.1.9 inch for IPS colour screen, 170X320 resolution
2.for IPS full-viewing angle panel, good viewing angle
3.4-wire SPI serial bus, only a few IO can light up
4. LCD screen with backlight control, fast response time, can reduce image drag and blurring
5. Provide a wealth of STM32, MSP430 and C51 sample programs
Product parameters
Display colour: RGB 65K colour
Size: 1.9(inch)
Panel material: for TFT
Driver chip: ST7789
Resolution: 170*320
Display interface: 4-line SPI interface
Effective display area: 22.695*42.72mm
Touch Screen Type: No touch screen
Touch IC: No touch IC
Module PCB bottom size: 29*62mm
Viewing angle: full angle
Operating temperature: -10~60℃
Storage temperature: -20~70℃
Interface Description
GND:LCD power ground
VCC:LCD power positive (3.3V)
SCL: LCD SPI bus clock signal
SDA: LCD SPI bus write data signal
RES: LCD reset control signal (low-level reset)
DC: LCD register/data selection control signal (low level: register, high level: data)
CS:LCD chip select control signal (low level enable)
BLK: LCD backlight control signal (high level light, if you do not need to control, please connect 3.3V)
Delivery list
LCD*1
1.9 inch for IPS colour screen, 170X320 resolution
for IPS full-viewing angle panel, good viewing angle
4-wire SPI serial bus, only a few IO can light up
LCD screen with backlight control, fast response time, can reduce image drag and blurring
Provide a wealth of for STM32, MSP430 and C51 sample programs
