AESUB Blue Spray 1 Can - Discount available for bulk purchase -
We also carry other AESUB products so feel free to ask if you are looking for any other items.

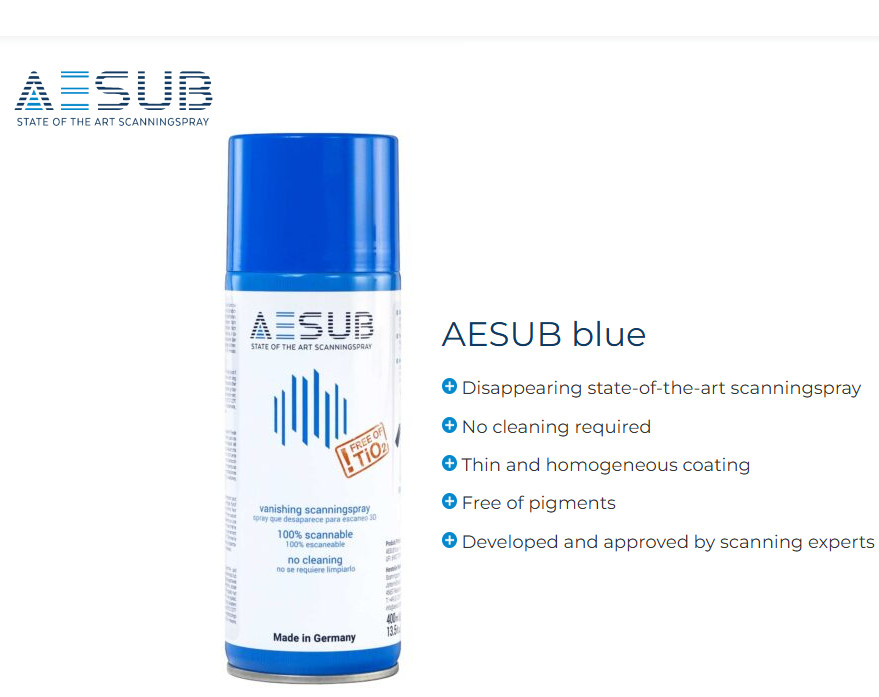

AESUB Blue is a self-evaporating scanning spray developed by scanning experts. The spray evaporates within a few hours so that no time-consuming cleaning of the object and its surroundings is required after scanning.
In contrast to conventional sprays, AESUB Blue does not contain any pigments and thus avoids pigment contamination in sensitive areas such as laboratories and production facilities.
Despite modern 3D scanners, challenges arise in many application cases and a matting spray is required to achieve good contrast values and accurate measurement results. This occurs mainly with transparent and reflective parts and with recesses. With the scanning spray, disruptive factors such as differences in the reflection properties, the texture and / or colour of the scanned object are eliminated.
When used correctly, AESUB Blue forms a matt, thin and homogeneous coating on the surface of the object to be scanned. It thus provides the ideal conditions for precise detection. In addition to the active ingredient, AESUB Blue contains a propellant and solvent. The recipe was designed for maximum material compatibility. Independent laboratory tests have come to the conclusion that AESUB Blue evaporates completely and leaves no residue.
Key Features:
- Sublimating / self-evaporating
- No cleaning necessary
- Time and cost savings
- Very small layer thickness of 8 - 15 µm
- Pigment-free - does not damage the sensitive measurement technology
- Consistent and homogeneous coating
- Good adhesion of the reference points
- Optimised material compatibility
- Excellent scannability
Applications:
- Automotive
- Mechanical and plant engineering
- Aerospace
- Energy sector
- Architecture
- Plastic design / art
- Digital archiving
- Reverse engineering
- Optical measurement technology
- Research and Development
- Process monitoring
- Inline scanning
- Measurement service
- Surface inspection
How to apply AESUB blue?Spray
Apply AESUB blue from 15-20 cm away. Gently push down the spray button and move the can across the area using even, back and forth strokes. Move at a consistent pace to achieve an even coating. Spray over the entire surface that you will be scanning.
Scan
Scan can be started as soon as you have a stable & white coating.
Scan object in usual manner.
Done
The applied coating of AESUB blue sublimes and thus eliminates the need for complex cleaning after use.
*Box contain 1 AESUB state of the art scanning spray 400ml or 13.5fl.oz
