PRODUCT DETAIL:
- Model: VP1707
- Conductor: Flat LV Copper
- Wire(L/N):
- Wire(Earth/Ground): 2Sq/14AWG {(0.68W-1.3T)*3}
- Shielding: 0.1mm conductor wire Braid + Copper foil (w/drain wire)
- Twisting: 3 Cores Twisted Together
- Insulation(Inner): PTFE(Red、white、Yellow)
- Sheath: Flexible PVC (Clear+Black+Grey/Silver)
- Overall Diameter: 17.5mm
- Rated V/A: 600V / 30A
- Resistance: 0.0011Ω/m

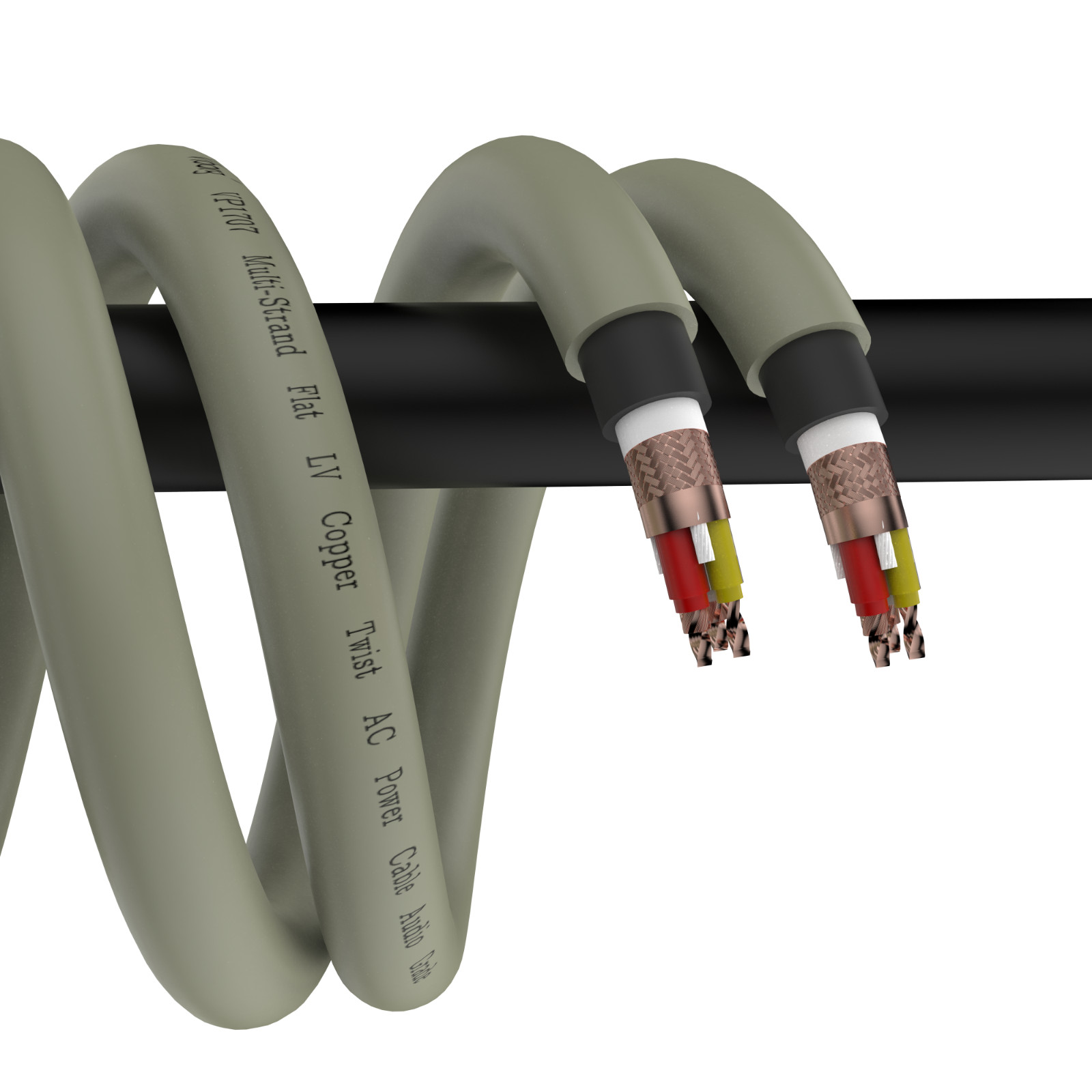

VP1707 is a more powerful、stronger、 high-speed andMulti-Strand Flat LV copper cable of a new
generation from Viborg power cable series. The construction it is not only use
the traditional rough round bare wire,but also plus the specially flat LV
copper twist together build a Multi-Strand dynamic cable, The conductor
stranded LV Copper wire which has 6sq cross-section area actualizes high-power
signal transmission. Its voltage endurance is 600V and maximum amperage is 30A.about
the insulation it is used Polytetrafluoroethylene(PTFE) can be works in
temperature from -200°C to 260°C. From the deep stillness the noise protection
VP1707 specially developed the 4st-laye shielding structure(EMI+ Copper foil+copper
Braid). It not only rejects internal and external noise, but also instantaneous
spark noise due to vibration.
