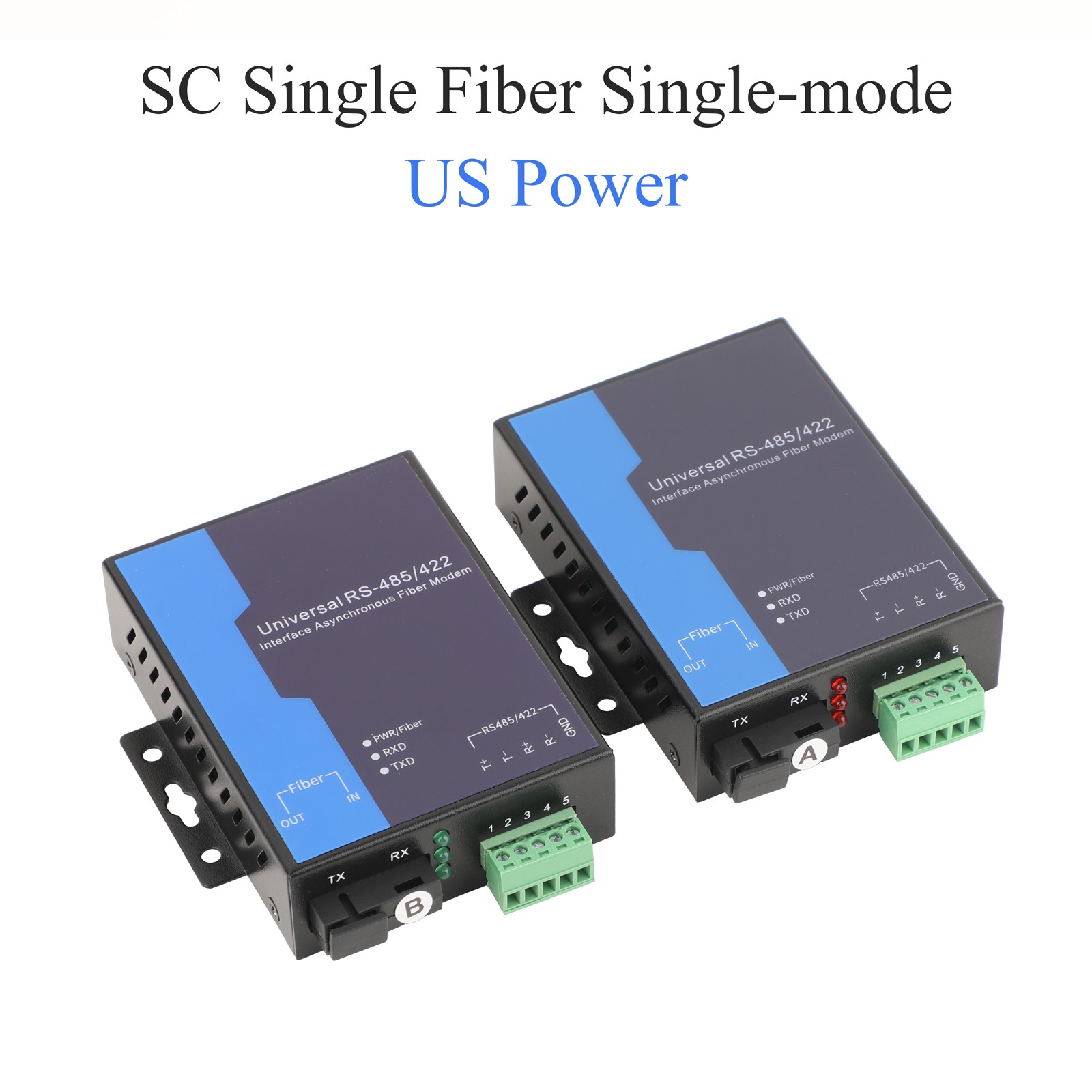

1 Pair RS485 Data Extender Converter Over Fiber Optic SC/FC Singlemode Multimode
Type: RS485 Data Optical Transceiver
Telephone Interface: 1-way
Fiber Optic Interface: SC/FC
Transmission Distance: 2 km (Multi-mode Double-fiber) , 20 km (Single-Mode Single-fiber)
Optical Wavelength: 850nm/1310nm (Multi-mode) , 1310nm/1550nm (Single Mode)
Fiber Optic Receive Dynamic Range: >-30dB
Power Supply Type: US
Input Voltage: AC220V
Power Consumption: ≤5W
Interface Characteristics: The serial port complies with EIARS-232/485 protocol
Transmission Medium: single mode/multi-mode (fiber optic), shielded twisted pair wire (serial port)
Electrical Interface: DB9 (RS-232 serial port) industrial terminal (RS-485/422 serial port)
Working Mode: 2-line half-duplex, 4-line full-duplex
Transmission Rate: 300bps—115200bps
Working temperature: -10~50℃
Features
1. The 485/422/232 optical terminal (serial optical terminal) provides RS-232/485/422 serial port data to fiber optic transmission.
2. The optical fiber transmission distance is long (multi-mode dual fiber 2KM, single-mode single fiber 20KM), which is the best choice for long-distance transmission connecting remote terminal units to the host and distributed centralized control system.
3. It has the ability to resist surges and electromagnetic damage to industrial data communication equipment and interference with communication lines, and can effectively avoid lightning strikes and ensure the stability of the communication system.
4. Support point-to-point and ring (point-to-multipoint) connection methods.
5. Supports RS-232/485/422 interface and supports multiple asynchronous communication protocols of RS-232485/422.
6. Supports two-line half-duplex (RS-485) and four-line full-duplex communication mode (RS-422).
7. The data communication rate can reach up to 120Kbps.
Type is your choice!!
Quantity is your choice!!
Thank you for your patronage and wish you a pleasant cooperation!!
Note: Due to the characteristics of the product and the measuring tools, plus the pure manual measurement and cutting of the cable, the length may have an error of 1%-5%.
