Overview

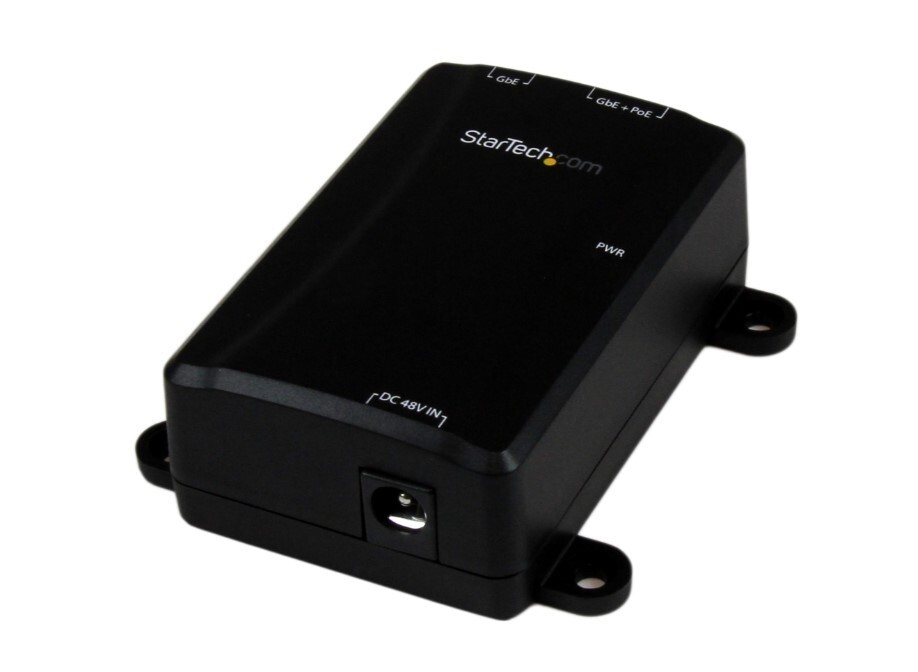

Deliver power and data to your Power over Ethernet deviceusing this mountable PoE+ midspan
Product ID:POEINJ1G
·Easilyconnect, power, and operate a Gigabit PoE-powered device (PD)
·Suppliesup to 30-watts power output
·Flexiblesetup, with a desktop-sized, or surface-mountable housing
·Savemoney by using your existing Cat5 or better Ethernet cable
·Fast,plug-and-play setup and operation, with no configuration required
·Providesone PoE+ (PSE, power and data) 10/100/1000Mbps compliant RJ45 port - 802.3atand 802.3af
·Integratesshielded RJ45 connectors
·Automaticallydetects the powered device to provide the appropriate level of power output
ThisGigabit Power over Ethernet (PoE+) injector supplies power and dataconnectivity to a Gigabit PoE-compliant device using standard Ethernet cable,at distances of up to 100 m (330 ft.).
The PoE midspan is a cost-effective alternative toupgrading your existing network switch to a PoE-capable model.
Convenience and cost savings
This versatile PoE injector lets you connect aPoE-powered device (PD) to a non-PoE network switch, so you can avoid theexpense and aggravation of replacing your existing switch with a PoE-enabledmodel. It supplies up to 30 watts of power, so you can easily power and accessa high-power PoE-compliant device, such as an IP camera or a wireless accesspoint (WAP), using traditional copper (RJ45) Ethernet cable. The midspaninjector makes it easy to extend data and power connectivity to your PoE+device across long distances, even in a remote location where a typical poweroutlet isn’t available.
Easy to set up in mixedenvironments
You can integrate this compact injector discreetly intoa variety of environments. It features a surface-mountable housing that’sperfect for installing on walls or under a desk, but it’s also palm-sized, foruse on desktop surfaces.
Plus, with plug-and-play operation, you can enjoy fastand hassle-free setup without disrupting your workflow.
Intelligent power allocation
Not sure which class your PoE device is? The GigabitPoE+ injector automatically detects the power requirements of your connectedPoE PD, and delivers the appropriate level of power without damaging yourdevice.
Applications
·Ideal for high-power PoE+ devices requiringGigabit speeds such as PTZ (Pan, Tilt, Zoom) cameras and Wi-Fi® access points(WAP)
·Enable remote installation of touchscreens,information kiosks, and phones in locations where a power connection isn’tavailable
·Perfect for small and home offices, as well asSMB applications, including system integrations, and IT administration
Technical Specifications
Connector(s)
Connector Type(s)
2 - RJ-45
Environmental
Operating Temperature
0°C to 45°C (32°F to 113°F)
Storage Temperature
-20°C to 85°C (-4°F to 185°F)
Humidity
10~90% RH (Non-Condensing)
Hardware
Ports
1
Industry Standards
IEEE 802.3af PoE, IEEE 802.3at PoE+
IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE802.3ab (1000BASE-T)
Indicators
LED Indicators
1 - Power
Packaging Information
Package Height
2.4 in [61 mm]
Package Length
6.0 in [15.2 cm]
Shipping (Package) Weight
18.0 oz [511 g]
Package Width
8.1 in [20.5 cm]
Performance
Maximum Data Transfer Rate
2 Gbps (Full-Duplex)
Maximum Cable Length
328.0 ft [100 m]
General Specifications
Power Output: 48 V DC, 30 W
Physical Characteristics
Weight of Product
1.8 oz [50 g]
Color
Black
Material
Plastic
Product Length
2.8 in [70 mm]
Product Width
2.5 in [63 mm]
Product Height
1.0 in [2.5 cm]
Power
Power Source
AC Adapter Included
Input Voltage
100 - 240 AC
Input Current
1.5A
Output Voltage
55V DC
Output Current
0.6 A
Center Tip Polarity
Positive
Plug Type
M
Power Consumption (In Watts)
33
If your connected devices do not meet the IEEE 802.3af orIEEE 802.3at PoE standard, then the POEINJ1G will not inject power to theconnected device(s) / Ethernet cable(s)
What's in the Box
Included in Package
1 - POE+ Injector
4 - Mounting Screws
1 - Instruction Manual
1 - Power Adapter (NA)
