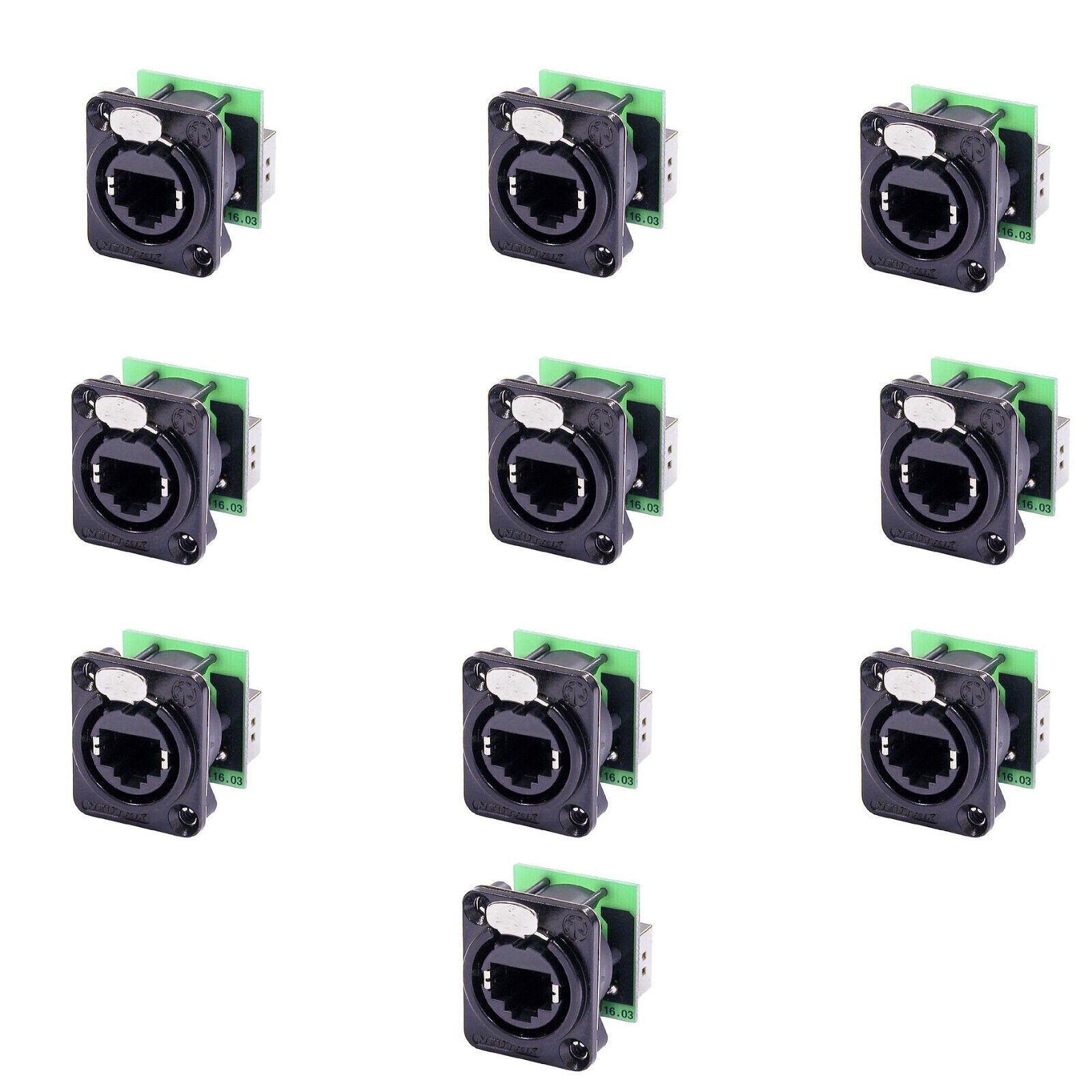

10 Neutrik RJ45 Ethercon Ethernet Pass-Through Panel Mount Connectors - Black

Hardware Screws are not included

The ethercon Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry. The D-Series offers the most rugged design of the ethercon series and is perfectly suitable for panel mount and the installer market.

Features

• Accommodates NE8MC or any standard RJ45 plug
• Approved latch lock system
• Mountable from the front or rear of the panel
• Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 Resistance: < 10 megohms (inner)
• Dielectric Strength: 1 kVdc
• Frequency Range: 1 - 100 MHz
• Insulation Resistance: > 0.5 Gigohms
• Rated Current per Contact: 1.5 A
• Rated Voltage: < 50 V
• Transmission Performance: CAT 5e
• Standard Compliance: TIA/EIA 586B, Force: < /= 20 N
• Withdrawal Force: < /= 20 N
• Lifetime: > 1000 mating cycles
• Panel Thickness: max. 4 mm 0.16'
• Wiring: Feedthrough
• Locking Device: Latch lock
• Chassis Shape: Plating: 0.2 µm Au over Ni plating
• Contacts: Bronze (CuSn8)
• Insert: PBTP 15 % GR
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell Plating: Black UL 94 V-0
• Temperature Range: -30 °C to +80 °C
