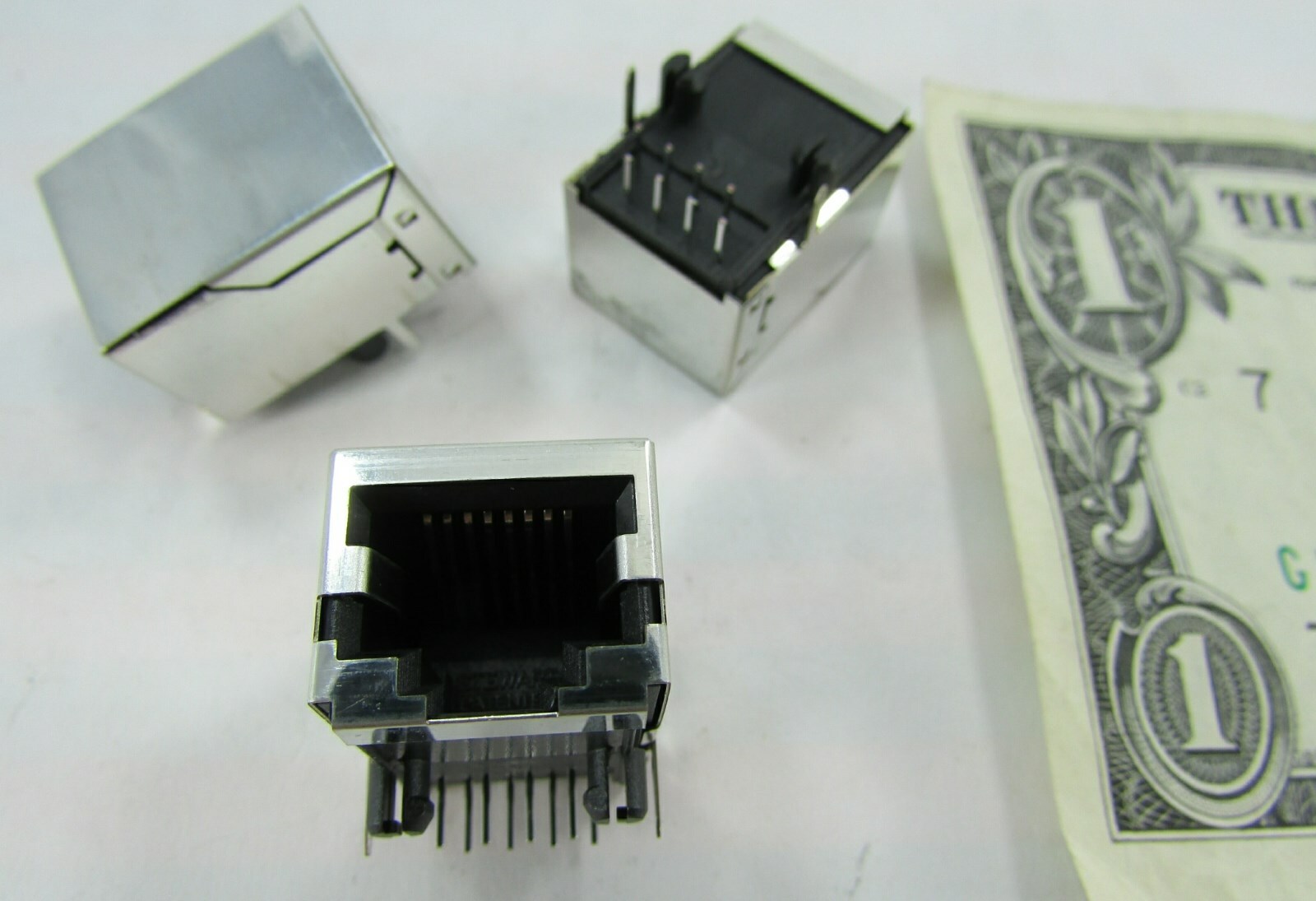

New Stewart Modular Connector Jacks, 8p8c RJ45, Ethernet 90 Right Angle, Nickel Plated Copper Alloy Shielded, Gold Plated Contacts, Part Number SS-6488S-A-NF-A423. Each offer quantity is for a Lot of Ten (10) Jacks. You may offer / buy any number of lots, up to the total quantity available above.

These were purchased at an electronics supplier liquidation earlier this year, and they were new in the original factory tubes. We packaged them in heavy Ziplok bags for resale. There is minor abrasion of the nickel plating of the shielding material where they were shipped in plastic tubes.

According to the calipers:

Mounting footprint: .840" x .628" (21.36 MM x 15.96 MM)

Mounted height: .544" / 13.83 MM

Solder pin spacing (pins and rows): .100" / 2.54 MM

According to the manufacturer:

Categories: Connectors, Interconnects, Modular Connectors - Jacks
Manufacturer: Stewart Connector
Series: 64
Part Status: Active
Connector Type: Jack
Number of Positions/Contacts: 8p8c (RJ45, Ethernet)
Number of Ports: 1
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Shielding: Shielded
Features: Board Lock
Tab Direction: Down
Contact Material: Copper Alloy
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Housing Material: Thermoplastic
Operating Temperature: -40°C ~ 85°C
