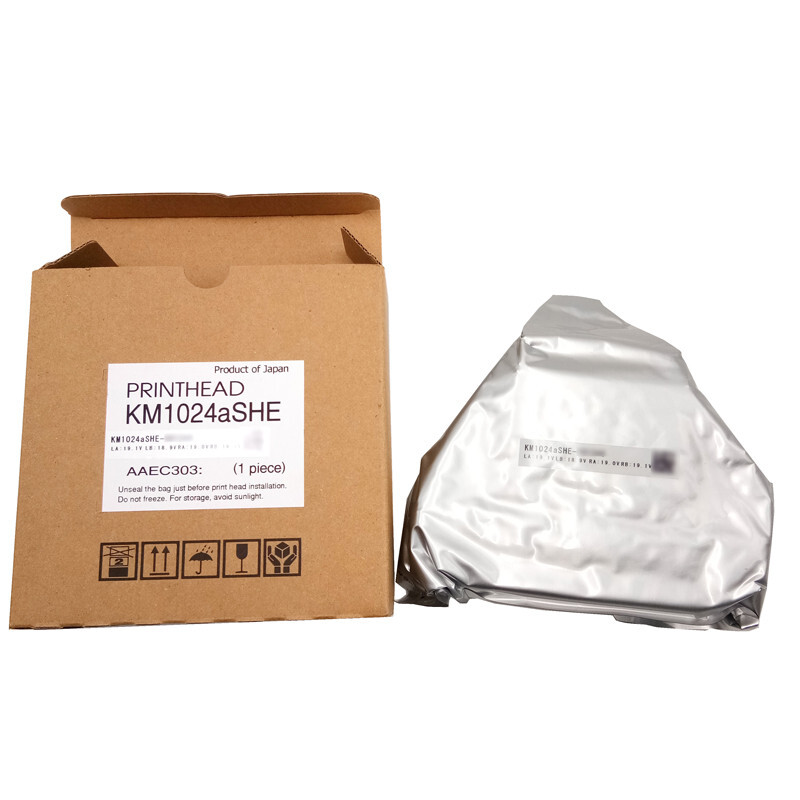

KM1024aSHE, this nozzle is improved on the basis of KM1024i 6PL nozzle. The KM1024aSHE printhead has been deeply improved in terms of performance, grayscale, change point, and durability. The printhead can also use UV, solvent, and water-based inks.Droplet size is 6pl, suitable for solvent, oil and UV inksWhen paired with Konica Minolta's latest compact recirculating printhead KM1024aLHG-RC the same analog driver enables a powerful combination of high deposition whites or varnishes with vivid high quality graphicsTechnology: Independent Channel, Piezo on Demand
Number of nozzles: 1024 (256 x 4 rows)
Channel Resolution: 70.5μm pitch (360 dpi: 4 lines x 90 dpi)
Grayscale: Level 8
Drive Voltage: 17 +/- 3V
Printing width: 72.084mm
Total line spacing: 2.82mm
Descent speed: 7.0 m/sec
Dimensions: Height 97.0mm x Width 18.0mm x Length 131.0mm
Weight: less than 150 grams
Ink drop size: 6pl
Maximum frequency: 40.0 kHz
