Product feature
1. Keep optical transmission performance of opticalfiber
2. Provide safe protection to optical fiber splicing
3. Air-proof configuration keeping the splice point'sgood resistance of humidity and temperature
4. Clear sleeve make it easy to detect splice beforeshrinkage
5. Easily use and avoid any damages to the optical fiberduring installation
6. Operating temperature ranging from -45°Cto100°C
7. Minimum fullyrecoverytemperature:120°C
8. Strength member is made from "Full hard"stainless steel of 304 grade and is ground at the edges before polishing tomake it completely burr free to avoid rupturing during shrinking. 304 grade givesbetter corrosion resistance, even in coastal environment. Resistant to heatshocks, no cracking dripping or flowing
9. Hot melt adhesive tube made from polyolefin EthylVinyl Acetate copolymer bonds both to the fiber and heat shrinkable outer tubeto effectively encapsulate fusion splice.
10.Long termproven performance, exceeds industry standards with satisfied customer
Product Specification
1. Outer diameter after recovery: OD2.5 mm +/-0,1mm
2. Hole diameter before recovery: OD1,5 mm
3. Pin diameter: OD 1.2 mm
4. Minimum installation temperature: 110°C
5. Max installation time: 60 seconds
6. Standard color: Clear
7. Compliant norms: UL224,MIL-I-23053,GR-1380-CORE, ZN-96 TPSA-006
8. RoHS compliant
9. Packing: 100 pcs per bag (Others for specialorder)
Series GT
Code:GT-XX
Fiber Optic Fusion Splice Protection Sleeves
Series GT
Fiber size: 250/900
Part No.
L
Lp
D
Dp
d
Stock
GT-60A(popular)
60
54
3.0+/-0.1
1.5
1.3
√
GT-55A
55
50
3.0+/-0.1
1.5
1.3
GT-50A
50
45
3.0+/-0.1
1.5
1.3
GT-45A
45
40
3.0+/-0.1
1.5
1.3
√
GT-40A
40
35
3.0+/-0.1
1.5
1.3
√
GT-60B(popular)
60
54
2.5+/-0.1
1.2
1.5
√
GT-55B
55
50
2.5+/-0.1
1.2
1.5
GT-50B
50
45
2.5+/-0.1
1.2
1.5
GT-45B(popular)
45
40
2.5+/-0.1
1.2
1.5
√
GT-40B(popular)
40
35
2.5+/-0.1
1.2
1.5
√
GT-60C
60
54
2.4+/-0.1
1.0
1.5
√
GT-55C
50
45
2.4+/-0.1
1.0
1.5
GT-45C
45
40
2.4+/-0.1
1.0
1.5
√
GT-40C
40
35
2.4+/-0.1
1.0
1.5
*Other size on special order. All dimensions in mm.
L - Length after recovery
Lp - Pin length
D - Outer diameter after recovery
Dp - Pin diameter
d - Hole diameter before recovery
XX - Color
√- Stock
- Production
Packing Contents

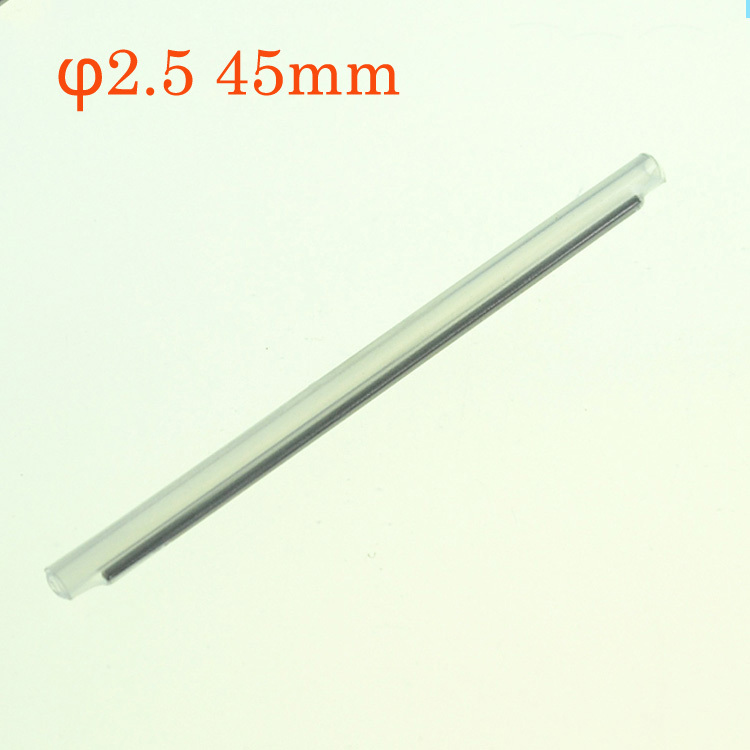

- 1000pcs x (GT-45B) Fiber splice protection sleeve
