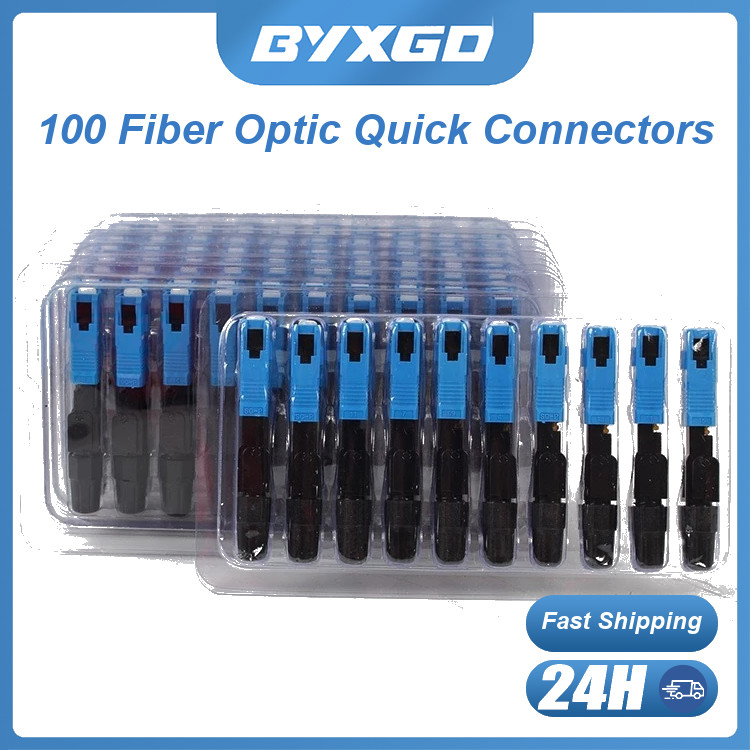

SC/UPC Pre-embedded Fiber Optic Fast Connector (Cold Splice) - 100 PackSpecifications- Connector Type: SC/UPC, pre-embedded fast connector (field assembly / cold splice)- Fiber Mode: Single Mode & Multimode- Insertion Loss: <= 0.3dB- Return Loss: >= 50dB- Ferrule: Precision ceramic, standard three-ring design- Applicable Fiber: 0.9mm / 2.0mm / 3.0mm bare fiber- Applicable Cable: 2 x 3mm butterfly-shaped drop cable (FTTH)- Operating Temperature: -40 C to +70 C- Material: High-performance PEI body (flame retardant) + PC outer sleeve- Reusable: press the blue part to pull out and re-terminate- Net Weight: approx. 20g each- No fusion splicer, no glue, no power needed - fast field terminationKey Features1. Telecom-grade low insertion loss - each ceramic ferrule is machine-tested to ensure a small end-face gap and stable connection2. Pre-embedded design - fiber clamps against a factory-polished stub, no skill required, beginners can terminate in under a minute3. Excellent clamping reliability - internal anti-loosening mechanism keeps the fiber from axial movement; shock and drop resistant4. Fiber guide structure - fast threading, quick positioning and clamping5. Reusable - pinch the blue sleeve to reopen, saving cost on reworkInstallation Steps1. Strip the drop cable and insert it through the boot and locking cap2. Thread the bare fiber into the guide slot until it stops3. Close the clamp and press the cover - done, connect to any SC adapterPackage Includes100 x SC/UPC Pre-embedded Fiber Optic Fast Connectors (10 trays of 10)ApplicationsFTTH projects, CATV, LAN, telecom maintenance, termination boxes and ODF work.Warranty1 Year Warranty. Any question, message us anytime - we reply within 24 hours.
